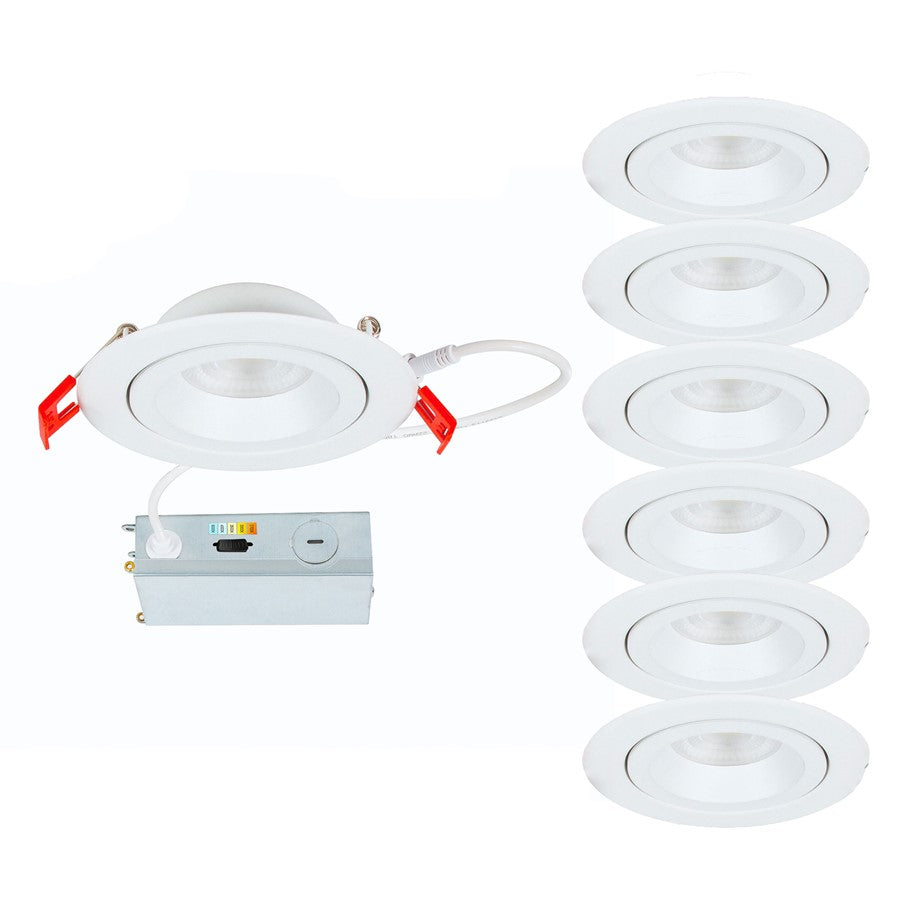

WAC Lotos 4" 5-CCT LED Reg Recessed (Pack of 6), White
by WAC Lighting
$206.95
SKU WAR4ERA2R-W9CS-WT-6
The Lotos LED recessed light is a versatile recessed family that combines high quality light output and efficiency while eliminating the need for a large housing. This innovative design connects to a remote driver and can be installed easily in both remodel or new construction applications with an optional frame-in kit accessory for pre-framing exposed ceilings. Lotos is available in flat wafer, adjustable, regressed adjustable, and multiple downlight versions to suit any design or lighting application. Create beautiful general ambient lighting or accent light and wall wash on a sloped ceiling with the adjustable version featuring a gimbal that pivots 360 degrees on a hinge. Lotos packs a high output integrated LED that is energy efficient and long-lasting. Lotos is ideal for shallow ceiling applications with as little as 3-inch plenum clearance.Lotos Adjustable (R2ERAR, R4ERAR, R6ERAR) features a pivot hinge that rotates the light source 360 degrees to aim up to 90 degrees. This is ideal for sloped ceilings and straight downlighting, wall washing, or for accent lighting to highlight a specific area in any space.Lotos Regressed Adjustable (R4ERA2R) packs all of the same great features from the Lotos Adjustable family, while resembling a traditional recessed downlight with a regressed lens that offers superior glare cutoff.Lotos Multiples (R2ESAR) combines Lotos Adjustable features into a multi-light aspect, and is perfect for applications where multiple focal points in a space need to be illuminated from a single downlight. Available in horizontal 1 x 2 light or 1 x 3 light options.Lotos (R4ERDR, R6ERDR) is also available in a flat lens option that provides an abundance of soft diffused ambient light through an edge-lit wafer style LED recessed light. This style is also offered with a square trim option. Select from the myriad of WAC Lotos products to create the perfect illumination for your project.
- Part of the Lotos Collection
- Finish: White
- Made of Steel
- Shade Finish: Frosted
- Shade Made of Acrylic
- Style: Functional
- (1) 9W LED Bulb
- Bulbs Included
- Bulb Color Temp: 2700-3000-3500-4000-5000
- Bulb Average Hours: 50000
- Bulb Lumens: 775
- Bulb Delivered Lumens: 775
- Bulb Beam Angle: 50
- Bulb Beam Spread: Flood
- Bulb Shape: LED Module
- Bulb CRI: 90
- Voltage: 120-240-277
- Bulb Base: LED Module - Universal Driver

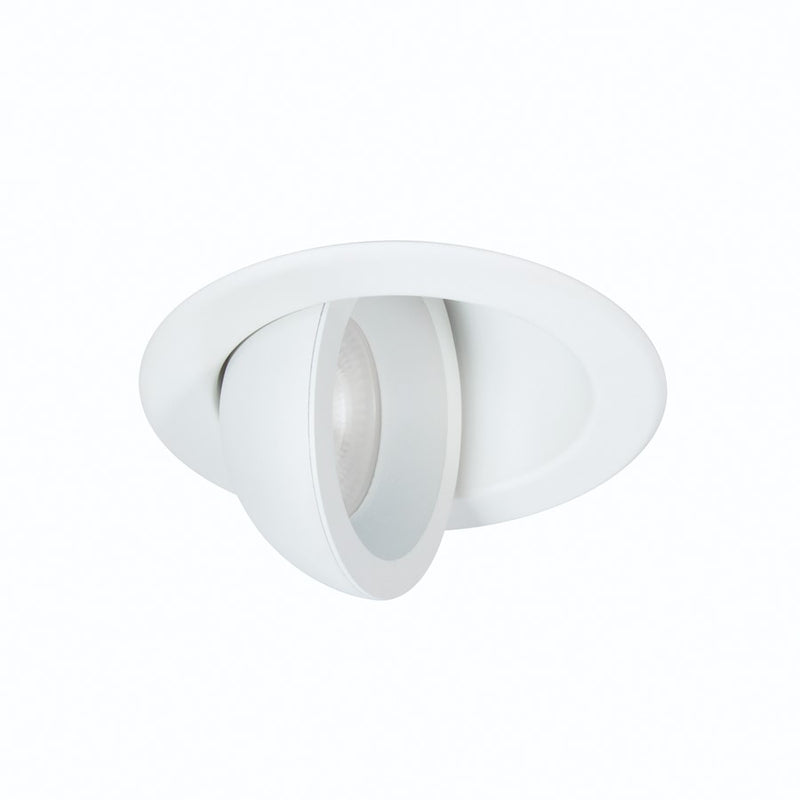

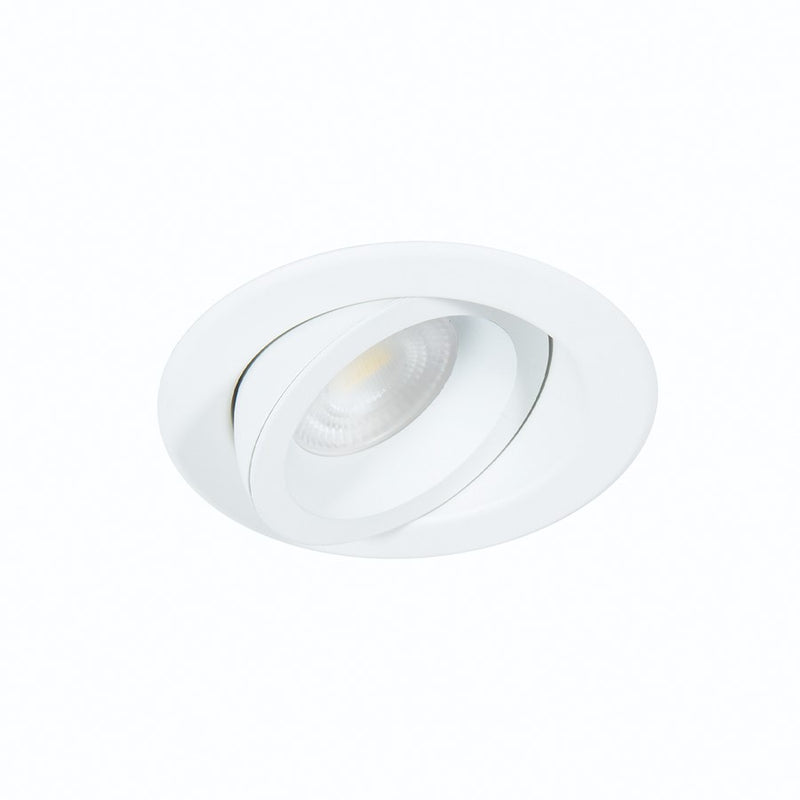

- CONSTRUCTION: Die-cast aluminum with 20-gauge steel driver box. Available in a White or Black finish and 4in size. Lotos Regressed Adjustable has a 360 degree pivot hinge that allows the light source to adjust from 0-90 degrees perpendicular to the ceiling, ideal for accent lighting and sloped ceilings with a regressed lens for superior glare reduction.
- INSTALLATION: This innovative design can be installed in the shallowest ceiling depths with less than 2" of plenum space. Male-to-female quick connect locking cable joins the light engine to the driver box. Driver box includes 5 knockouts allowing for an easy electrical connection.
- CUTOUT: Installs into a 4in round ceiling cutout, for ceiling thicknesses between 0.5in and 1.5in. Can be installed as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring (part # RER-FRAME). Retention clips hold the light engine into place. Universal input driver 120V-220V-277V.
- DIMMING: Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC dimmer. Dims down 10% with ELV dimmers, and 5% with TRIAC dimmers.

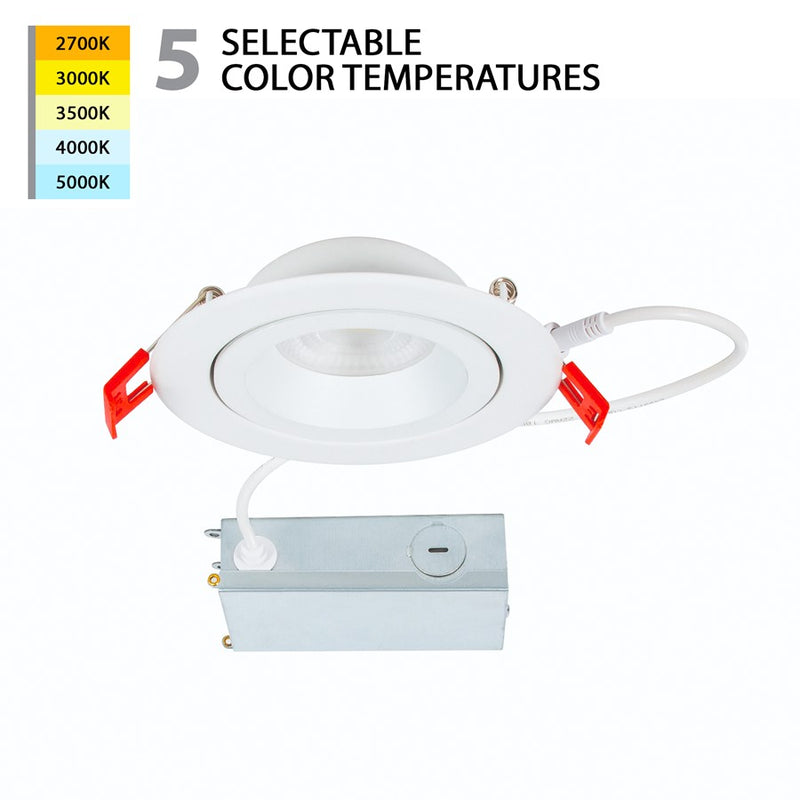

- SPECIFICATIONS: High Powered LED Module, Power: 9W Lumens: 775lm, CRI: 90, Rated Hours: 50000, 5-CCT Selectable Color Temperature Range: 2700K, 3000K, 3500K, 4000K, 5000K.
- STANDARDS: ETL & cETL UL # 1598 listed for Dry, Damp, and Wet Locations. Airtight and IC-Rated for contact with insulation. CEC Title 24 Compliant. Energy Star 2.0 Certified, and Title 24 JA8-2016. Model # R4ERA2R-W9CS-FWT is Fire Rated for 2-hr burn test.
- Dimmable: ELV/TRIAC
- Mounting: Ceiling
- ADA: Yes
- Interior/Exterior: Interior/Exterior
- Hardwired/Portable: Hardwired
- Safety Rating: ETL/cETL/CSA CAN/Energy Star/Title 24 JA8-2016/Title 20/ADA Listed
- For Use in Wet Locations
- Warranty Info: 5 Years Functional, 2 Years Finish

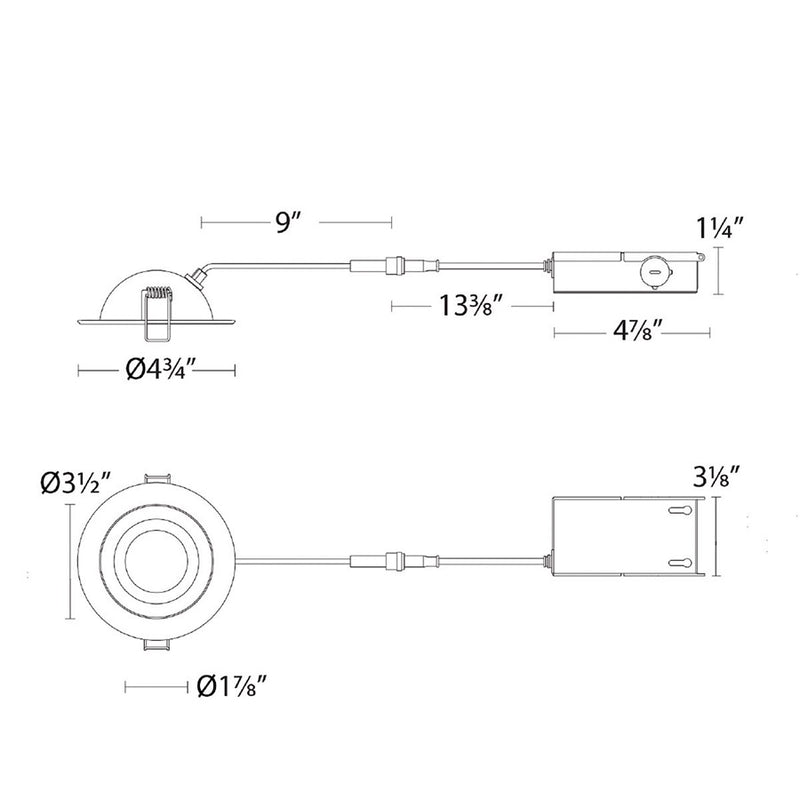

Overall Dimensions: 4.73"(L) x 4.73"(W) x 1.67"(H) x 4.73"(Dia)
Item Weight: 1.14 lbs.
