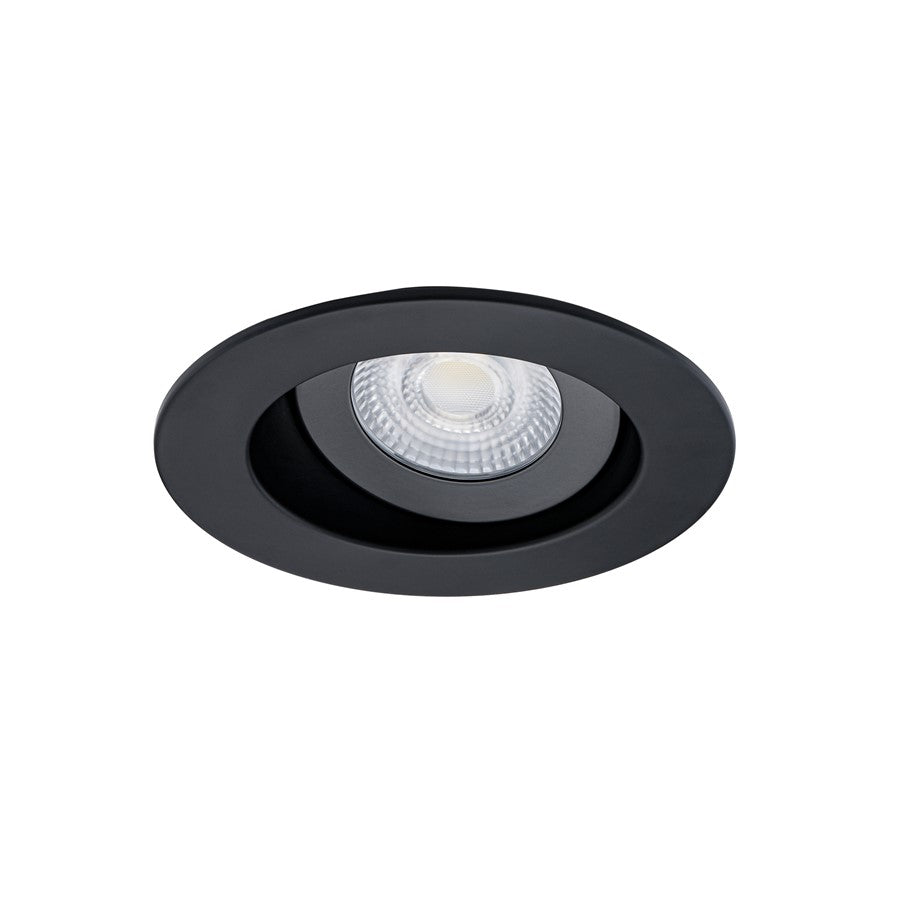

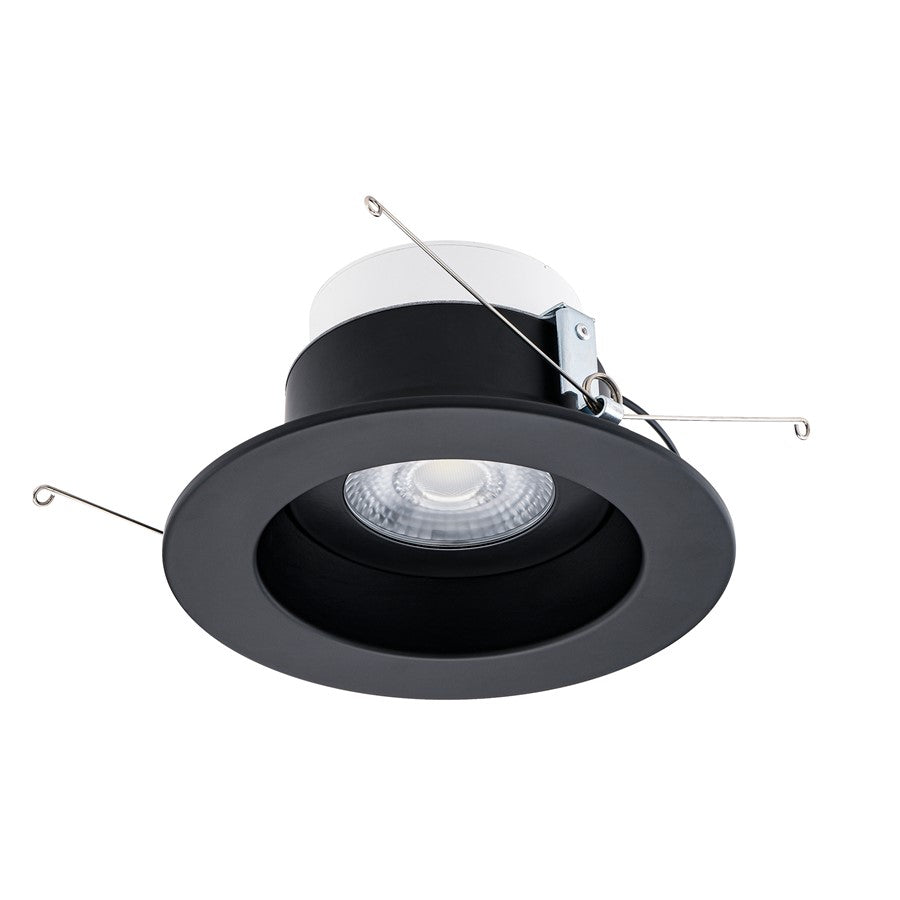

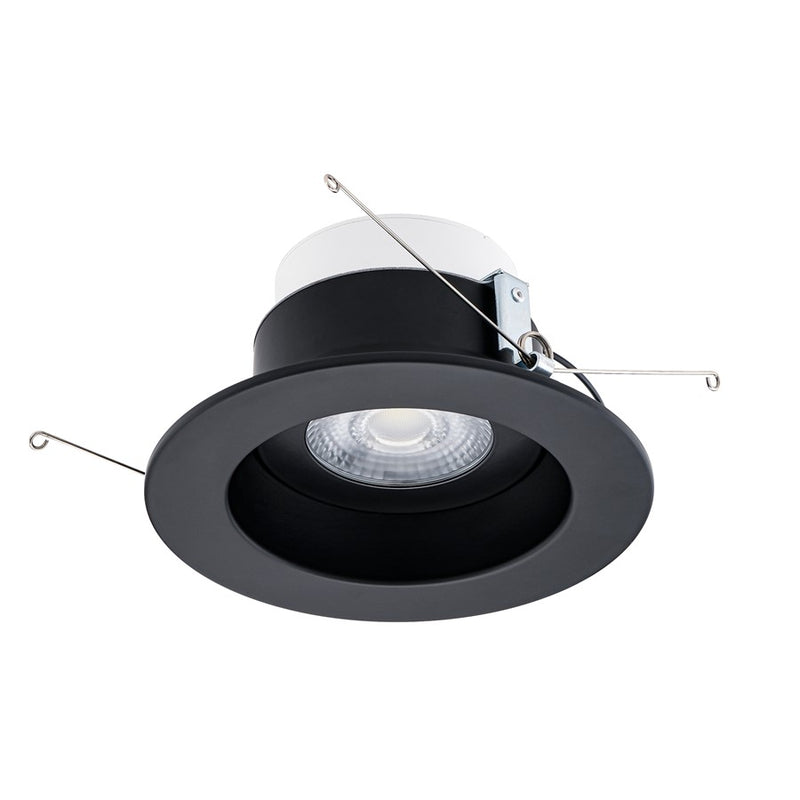

WAC Lotos 1Lt 6" LED 5-CCT Round Retrofit Recessed Kit, Black
by WAC Lighting
$69.99
SKU WAR6DRAK-A9CS-BK
The wafer-thin Lotos LED Recessed Kit with remote driver combines high quality light output and efficiency while eliminating the need for a large housing. This innovative design can be installed easily as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring. Lotos is available in a downlight version for general ambient lighting and an adjustable version with a gimbal that pivots 360 degrees on a hinge, perfect for slope ceilings, general lighting, accenting lighting, and wall washing. The integrated high output and energy efficient Lotos LED module maintains at least 70% light output for 50,000 hours. The Lotos is ideal for shallow ceiling applications with as little as 3-inch plenum clearance. Lotos LED is offered in round and square with 2in, 4in, and 6in aperture options. Use part # R2ESAR-2 or R2ESAR-3 for the multi-light option with 2 and 3 light configurations. Now with a fire rated version, -FWT.
- Part of the Lotos Collection
- Finish: Black
- Made of Steel
- Style: Transitional
- (1) 13W LED Bulb
- Bulbs Included
- Bulb Color Temp: 2700-3000-3500-4000-5000
- Bulb Average Hours: 50000
- Bulb Delivered Lumens: 1270
- Bulb Beam Angle: 50
- Bulb Beam Spread: Flood
- Bulb Shape: LED Module
- Bulb CRI: 90
- Voltage: 120
- Bulb Base: LED Module
- Lotos 6in LED Retrofit Round Adjustable 5-CCT Selectable 2700K-3000K-3500K-4000K-5000K Recessed Kit in Black
- Lotos Retrofit Adjustable is a complete LED recessed adjustable downlight kit with light engine and driver included. Lotos LED is offered in round and square with 2in, 4in, and 6in aperture options. Use part # R2ESAR-2 or R2ESAR-3 for the multi-light option with 2 and 3 light configurations.
- This innovative design can be installed in the shallowest ceiling depths as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring (part # RER-FRAME). 6ft extension cable (Part # RER-6) is available to increase distance from driver to downlight.
- A Universal Input Voltage Driver (120V-240V-277V) is contained in a steel housing with space for line-voltage electrical connections. Driver housing includes a 6in low voltage plug-and-play connector that connects to the downlight.
- Smooth and continuous dimming that works with most standard LED dimmers. We recommend using an electronic low voltage or TRIAC dimmer.

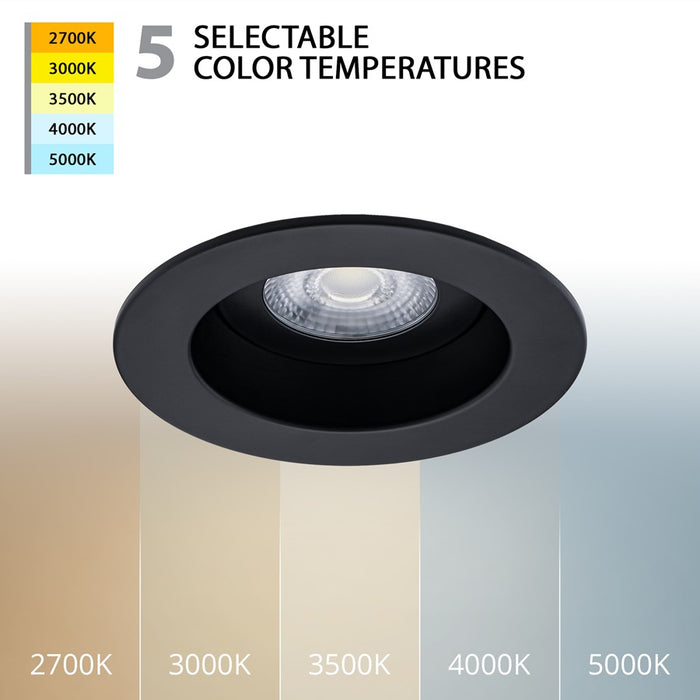

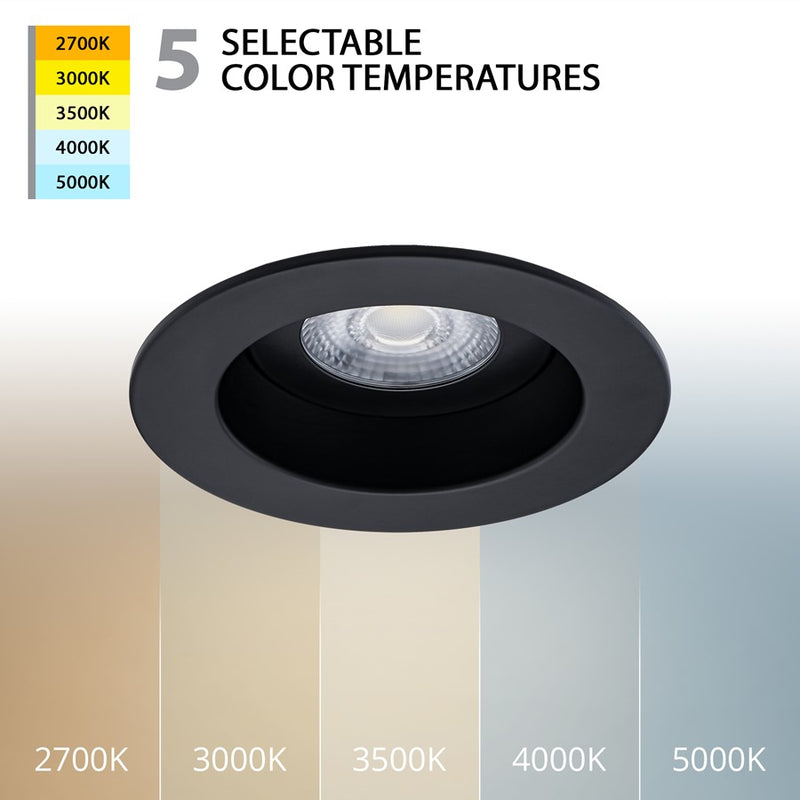

- High Powered LED's up to 1340 Lumens rated at LM70 for 50,000 hours and a 5-CCT selectable switch that allows you to toggle between 2700K Warm - 3000K Warm White - 3500K White - 4000K Cool White - 5000K Natural White all at the flick of a switch.
- Standards: ETL & cETL Wet location listed in the USA and Canada. Energy Star 2.0 Certified, Title 24 JA8-2016, Title 20, and ADA compliant.
- Dimmable: ELV/TRIAC
- Mounting: Ceiling
- ADA: Yes
- Interior/Exterior: Interior/Exterior
- Hardwired/Portable: Hardwired
- Safety Rating: ETL/CETL/CSA CAN/Title 24 JA8-2016/Title 20/ADA Listed
- For Use in Wet Locations
- Warranty Info: 5 Years Functional, 2 Years Finish
Overall Dimensions: 7.25"(L) x 7.25"(W) x 3.75"(H) x 7.25"(Dia)
Item Weight: 1.42 lbs.
