Nuvo Satco 4in LED Fire Rated Direct Wire Downlight | White/Red Specialty | Residential & Commercial Recessed Lighting | 800 Lumens 10W | Model S11868
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description

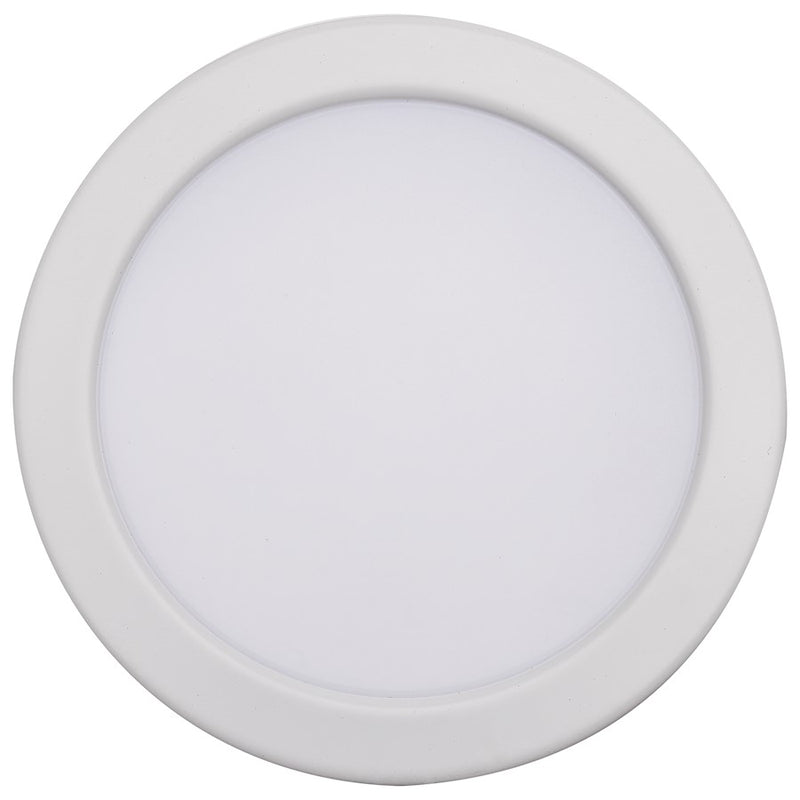

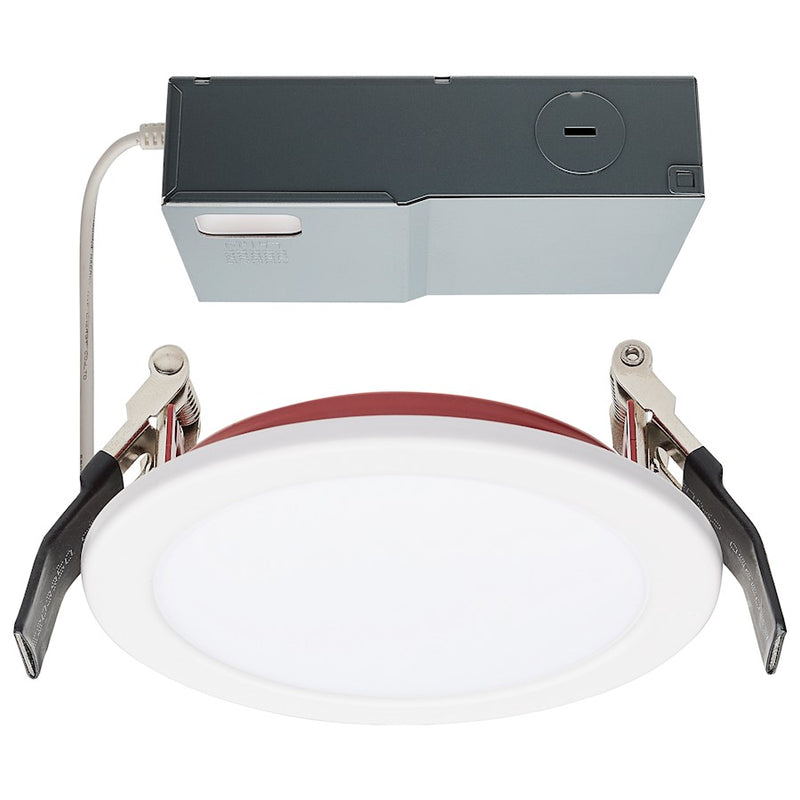

A 4-inch LED fire-rated downlight for residential and commercial recessed lighting, finished in white with a red backplate for easy identification.
This Nuvo Satco downlight combines safety and performance in a low-profile design. The fire-rated construction provides two hours of protection in the event of a fire, making it ideal for installations with low ceiling clearance. With 800 lumens and 0-10V dimming, it delivers bright, adjustable light for a variety of spaces.
Best for
- Residential kitchens, hallways, and living rooms with low ceiling clearance
- Multifamily and commercial applications requiring fire-rated fixtures
- Wet locations such as covered patios or bathrooms with shower exposure
- New construction or retrofit installations with IC-rated insulation contact
Not ideal for
- Spaces requiring a decorative trim or adjustable gimbal - this is a fixed flat lens design
- Applications needing a standard dimmer switch - requires 0-10V dimming system
How bright is it?
800 lumens - comparable to a 60W incandescent bulb, suitable for general room lighting in small to medium spaces. Bright enough for task lighting in kitchens or workspaces.
Light color and feel
Color temperature not specified by manufacturer. The 0-10V dimming allows smooth adjustment from full brightness to a low glow. CRI not specified.
Sizing and fit
Overall dimensions: 4.75 in wide x 4.75 in deep x 0.69 in high. Fits standard 4-inch ceiling cutouts. The ultra-low profile (under 1 inch) is ideal for tight plenums or shallow joist bays.
Specifications
- Finish: White and Red
- Style: Specialty
- Bulb Wattage: 10W
- Bulb Average Hours: 50000
- Bulb Lumens: 800L
- Voltage: 120V-277V

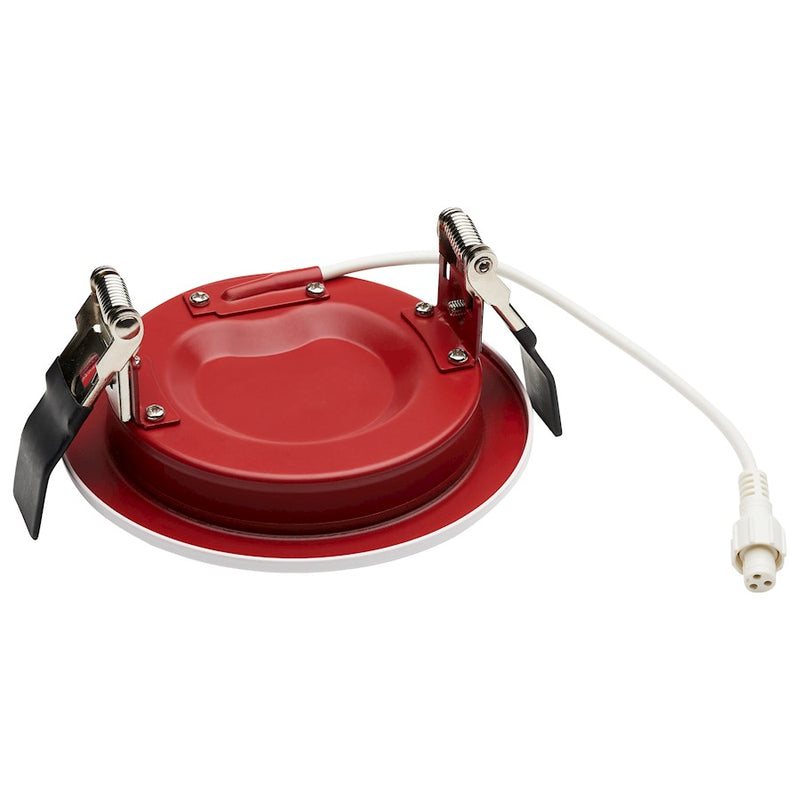

- Red painted backplate for easy identification
- IC Rated
- Dimmable: Yes
- Dimmer Type: 0-10V Dimming
- Assembly Required: Assembly Required
- For Use in Wet Locations
- Safety Rating: UL - Certified
- Warranty Info: 5 Year Limited - Fixtures
- Overall Dimensions: 4.75"(W) x 0.69"(H) x 4.75"(D)
- Item Weight: 1.2 lbs.
Frequently asked
Is the bulb included? Yes, the LED module is integrated.
Is it dimmable, and what dimmer should I use? Yes, dimmable with a 0-10V dimmer (not included).
Can I install this in a bathroom or outdoors? Yes, it is rated for wet locations.
What's the warranty? 5-year limited warranty on the fixture.
Does it require a junction box? This is a direct wire downlight; check local codes for installation requirements.
