Nuvo S11868R1 10W LED Fire Rated Recessed Downlight | White & Red, 4in Flat Lens | Bathroom & Kitchen Ceiling Lighting | 820 Lumens | Model S11868R1
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description

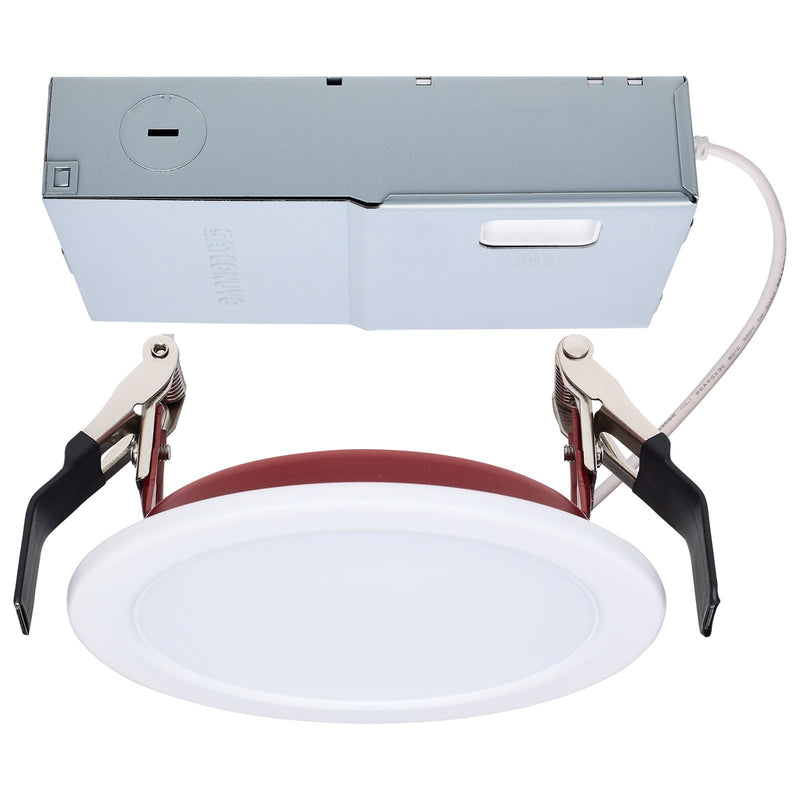

A 10-watt LED recessed downlight with a 4-inch flat lens, fire-rated for up to 2 hours, ideal for bathrooms and kitchens.
This Nuvo downlight combines energy-efficient LED technology with fire safety, featuring a red-painted backplate for easy identification in fire-rated ceilings. The slim profile fits tight spaces, and the selectable color temperature lets you customize the light to match your room. With 0-10V dimming and a high CRI of 90+, it delivers beautiful, accurate light for everyday living.
Best for
- Bathrooms with wet-rated ceilings, providing bright, even light for grooming
- Kitchens, especially over countertops and islands, with selectable color temperature

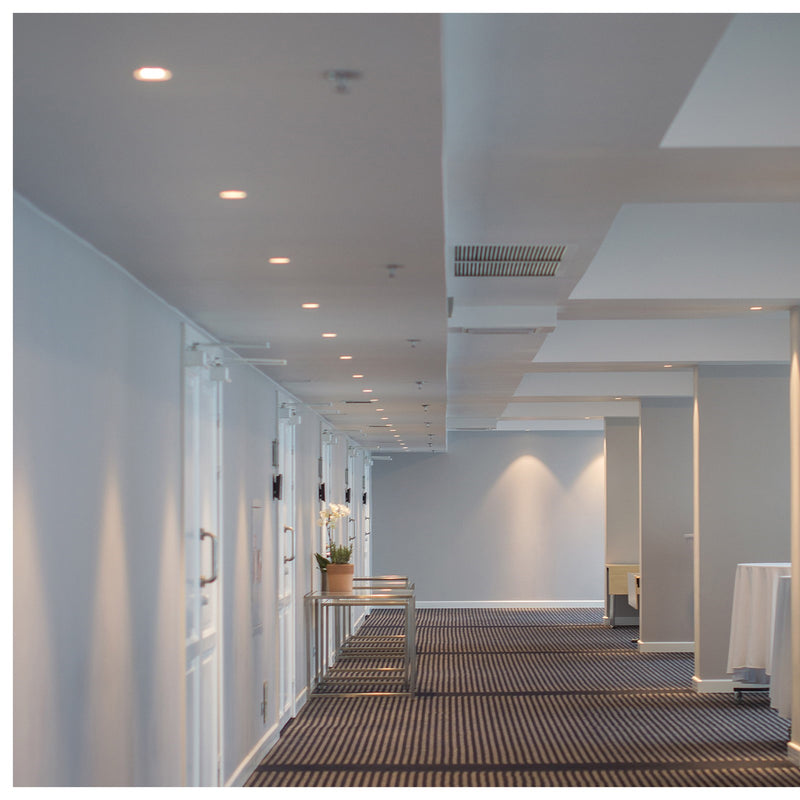

- Hallways and living areas where a low-profile, fire-rated fixture is needed
- Multi-family and commercial buildings requiring fire-rated ceiling assemblies
Not ideal for
- Spaces with ceilings thicker than 2 3/8 inches, as the housing may not fit
- Outdoor installations, as this fixture is rated for indoor use only
How bright is it?
820 lumens - about as bright as a 60W incandescent bulb, ideal for task lighting in bathrooms and kitchens. It's a primary light source for small to medium rooms.
Light color and feel
Selectable from 2700K warm white to 5000K daylight, so you can choose the ambiance. With a CRI of 90+, colors appear vibrant and true, making it great for applying makeup or reading recipes.
Sizing and fit
Measures 4.74" W x 4.74" D x 0.88" H. The slim design fits into standard 4-inch recessed housings and is compatible with fire-rated ceiling assemblies up to 2 3/8" thick.
Specifications
- Fixture Finish: White / Red
- Style: Specialty
- Bulb Wattage: 10W
- Lamp Shape: Integrated LED
- ANSI Base: Integrated
- Lamp Base: Integrated
- Bulb Included: Integrated
- Dimmable: True
- Dimmable: 0-10V Dimming
- Voltage: 120V-277V
- Lumens: 820L
- Color Temperature: 2700K/3000K/3500K/4000K/5000K
- CRI: 90+
- Fire Rated up to 2-Hours
- Red Painted Backplate for Easy Identification
- 5 CCT Selectable
- 90 CRI High Quality Illumination
- 4" Flat Lens Model
- 120–277 Volts with 0–10V Dimming
- Wet Location Rated
- IC Rated and AirTight
- 50,000 Hour Functional Life
- 5 Year Warranty
- Assembly Required: True
- Location Rating: Wet
- Safety Location: CULUS - Certified
- Indoor/Outdoor: Indoor
- CA Prop 65: Lead
- Energy Star: True
- Warranty: 5-Years
- Incandescent Equivalent: 60W
- Color Temperature: Warm White to Natural Light
- Average Hours Rated: 50000
- CCT Selectable: True
- Operating Temperature: -4F to +104F (-20C to +40C)
- Title 20: Exempt
- Title 24: True
- CEC: Lawful for sale in California
Frequently asked
What is it made of? The housing is made of steel with a white and red painted finish.
Where in the home does this work best? This downlight is ideal for bathrooms, kitchens, hallways, and living areas where a fire-rated, low-profile fixture is needed.
How is it mounted or assembled? It is designed for direct wire installation into a recessed housing. Assembly is required.
What's the warranty? 5-year warranty.
Is it compatible with standard dimmers? It requires a 0-10V dimmer for smooth dimming performance.
