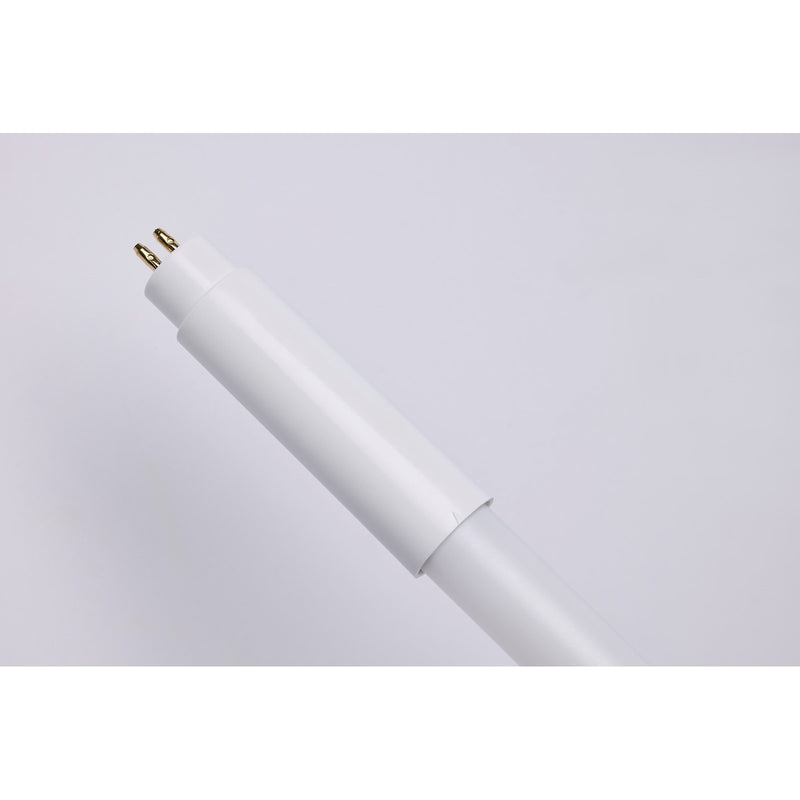

Nuvo Lighting S19966 48in 24W T5 LED Tube | 5000K Natural Light, Type A+B, PET Coated | Office & Retail Linear Lighting | 3200 Lumens | Model S19966
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description
A 48-inch, 24-watt LED T5 tube for offices, retail spaces, and warehouses, offering 5000K natural light with Type A+B dual-mode installation.
This SATCO S19966 LED T5 tube is a direct replacement for traditional fluorescent T5 lamps, delivering 3200 lumens of bright, energy-efficient light. The PET-coated frosted glass provides shatter resistance, making it a safe choice for commercial and industrial settings. With Type A+B operation, you can install it with existing ballasts or convert to ballast-bypass for simplified maintenance and energy savings.
Best for
- Offices and cubicle areas needing bright, natural light for task work
- Retail stores and showrooms where a daylight-like light enhances product displays
- Warehouses and industrial spaces requiring durable, shatter-resistant lighting
- Task lighting over workbenches or assembly lines
- Retrofit projects replacing old fluorescent T5 lamps
Not ideal for
- Residential living rooms or bedrooms where a softer, warmer light is preferred
- Outdoor applications - this tube is rated for damp locations, not wet
- Spaces with 120V-only dimming needs if you plan to use a reverse-phase dimmer on 277V (dimmable only at 120V)
How bright is it?
3200 lumens - about as bright as a 54W fluorescent T5, ideal for general and task lighting in commercial spaces. It's not a dim accent light; it's meant to illuminate a room.
Light color and feel
5000K natural light - a bright, daylight-like tone that mimics the sun at noon. It's invigorating and can help reduce eye strain in work environments. With a CRI of 80+, it renders colors reasonably well, though not as accurately as 90+ CRI lamps.
Sizing and fit
This tube measures 45.75 inches long and 0.62 inches in diameter, fitting standard T5 fixtures. It's a 4-foot replacement, so it works in most linear fluorescent troffers and strip lights. The G5 base (miniature bi-pin) ensures a secure fit.
Specifications
- Fixture Finish: White
- Bulb Wattage: 24W
- Lamp Shape: T5
- ANSI Base: G5
- Lamp Base: Miniature Bi Pin
- Ballast Type: Type A/B
- Rated for Enclosed Fixture: True
- Dimmable: Yes-Dimmable
- Dimmable Text: Reverse Phase; 120V only
- Voltage: 120V-277V
- Lumens: 3200L
- Color Temperature: 5000K K
- Color Temperature: Natural Light
- CRI: 80+
- Average Hours Rated: 50000
- Operating Temperature: -4F to +113F (-20C to +45C)
- Fluorescent Equivalent: 54WW
- 4-Foot Length
- Direct replacement for traditional fluorescent T5 lamps
- Dual Mode Type A+B operation allows ballast-compatible or ballast-bypass installation
- PET-coated frosted glass tube for added shatter resistance and safety
- 5000K CCT
- Rated for use in enclosed fixtures
- Rated for use in damp locations
- NSF Rated
- Dimmable with Compatible Ballasts
- Assembly Required: True
- Country of Manufacture: China
- Location Rating: Damp
- Safety Location: CULUS - Certified/CULUS - Classified/CRUUS - Recognized Component
- Title 20: Exempt
- CEC: Lawful for sale in California
- Warranty: 5-Years
Frequently asked
Is the bulb included? This is the bulb itself, not a fixture.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable with a reverse-phase dimmer, but only at 120V. At 277V, it is not dimmable.
Can I install this in a bathroom or outdoors? It is rated for damp locations, so it can be used in bathrooms or covered outdoor areas, but not in direct exposure to water (wet locations).
What's the warranty? 5-year warranty.
Can I use this with my existing fluorescent ballast? Yes, Type A+B means it works with compatible ballasts (Type A) or can be wired directly to line voltage (Type B).
