Nuvo Lighting S11869R1 13W LED Recessed Downlight | Specialty White Fire-Rated | Kitchens & Hallways | 1100 Lumens 5-CCT 0-10V | Model S11869R1
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description
A 13-watt LED recessed downlight with fire-rated housing, ideal for kitchens and hallways.

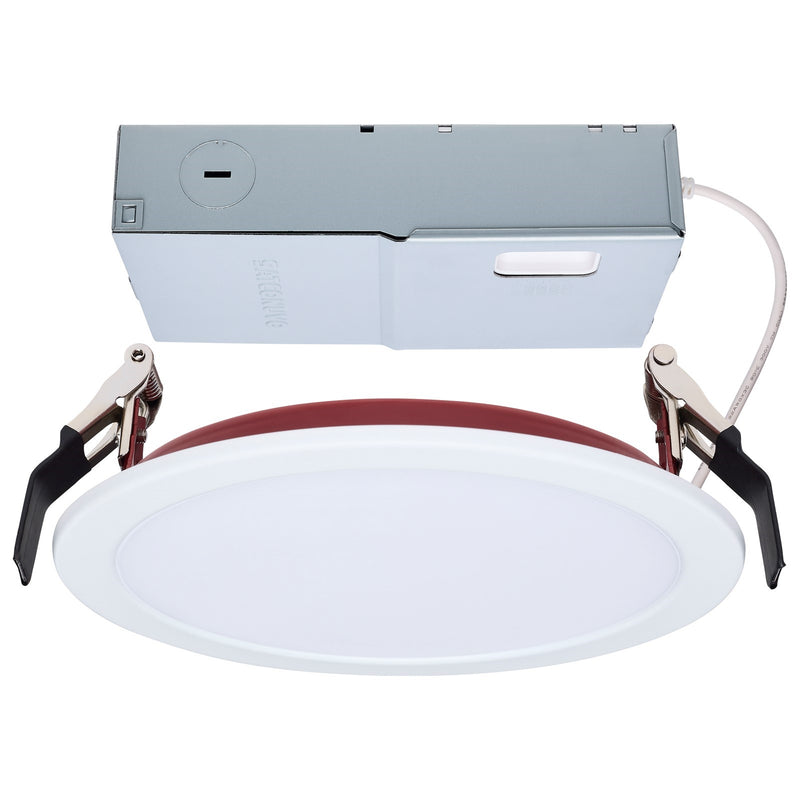

The Nuvo Lighting S11869R1 is a slim, fire-rated recessed downlight that delivers 1100 lumens at 13 watts, replacing a 75-watt incandescent. Its flat lens and low-profile design fit into fire-rated ceilings up to 2 3/8" thick, with a red-painted back housing for easy identification. With five selectable color temperatures and 0-10V dimming, it offers flexibility for any room.
Best for
- Kitchens and hallways needing bright, even illumination
- Living rooms and bedrooms with 2-hour fire-rated ceilings
- Multi-family and commercial installations requiring fire safety
- New construction or remodel with IC-rated and airtight housing
- Spaces needing adjustable color temperature from warm to daylight
Not ideal for
- Outdoor or damp locations - this is rated for indoor use only
- Sloped ceilings without proper gimbal or adjustable housing
- Spaces where a decorative fixture is preferred over a clean, flush look
How bright is it?
1,100 lumens - about as bright as a 75W incandescent, ideal for general room lighting in kitchens, hallways, and living areas.
Light color and feel
Choose from 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight. CRI 90+ renders colors accurately, great for kitchens and art. Dimmable via 0-10V.
Sizing and fit
Measures 6.79" diameter x 0.88" height. Fits standard 6-inch ceiling openings. The slim housing is compatible with fire-rated assemblies up to 2 3/8" thick.
Specifications
- Fixture Finish: White / Red
- Style: Specialty
- Bulb Wattage: 13W
- Lamp Shape: Integrated LED
- ANSI Base: Integrated
- Lamp Base: Integrated
- Bulb Included: Integrated
- Dimmable: True
- Dimmable: 0-10V Dimming
- Voltage: 120V-277V
- Lumens: 1100L
- Color Temperature: 2700K/3000K/3500K/4000K/5000K
- CRI: 90+
- Fire Rated up to 2-Hours
- Red Painted Backplate for Easy Identification
- 5 CCT Selectable
- 90 CRI High Quality Illumination
- 6" Flat Lens Model
- 120–277 Volts with 0–10V Dimming
- Wet Location Rated
- IC Rated and AirTight
- 50,000 Hour Functional Life
- 5 Year Warranty
- Assembly Required: True
- Location Rating: Wet
- Safety Location: CULUS - Certified
- Indoor/Outdoor: Indoor
- CA Prop 65: Lead
- Energy Star: True
- Warranty: 5-Years
- Incandescent Equivalent: 75W
- Color Temperature: Warm White to Natural Light
- Average Hours Rated: 50000
- CCT Selectable: True
- Operating Temperature: -4F to +104F (-20C to +40C)
- Title 20: Exempt
- Title 24: True
- CEC: Lawful for sale in California
Frequently asked
Is the bulb included? Yes, the LED is integrated and not replaceable.
Is it dimmable, and what dimmer should I use? Yes, it supports 0-10V dimming.
Can I install this in a bathroom or outdoors? It is wet-rated, so it's safe for damp locations like bathrooms, but it's intended for indoor use.
What's the warranty? 5-year warranty.
What is the fire rating? It is fire-rated for up to 2 hours when installed in specific UL designs.
