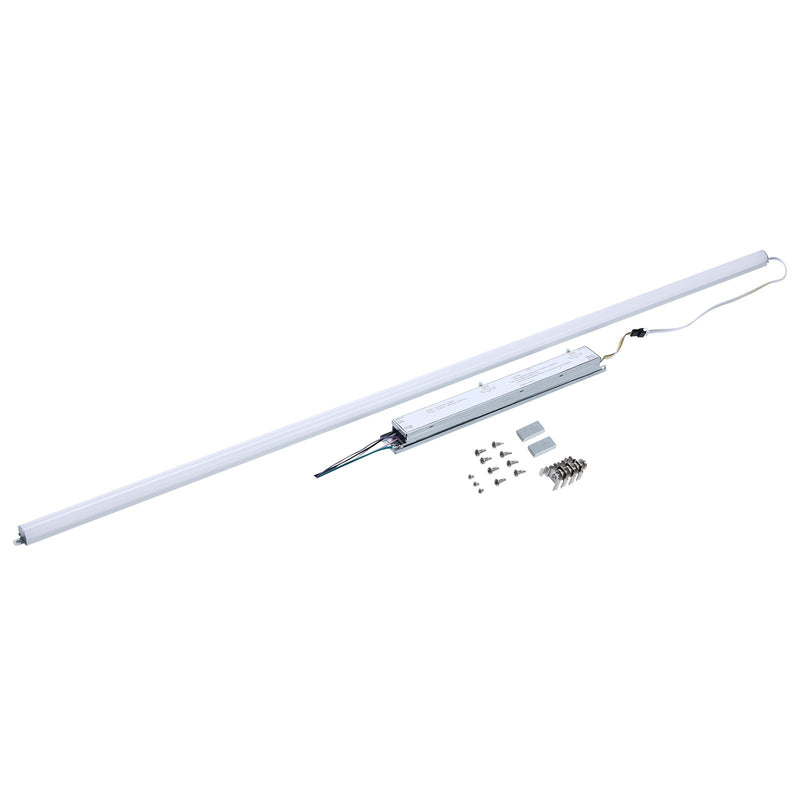

Nuvo Lighting LED Light Bar Retrofit Kit, 1-Bar 4', Silver

A 4-foot LED retrofit kit with one light bar, designed to convert existing fluorescent fixtures to energy-efficient LED lighting in garages, basements, and workshops.

SATCO NUVO's 65-1333 Retrofit Lightbar Kit replaces 1 x 32W T8 lamp with selectable wattages from 10W to 30W and selectable color temperatures from 3000K to 6500K. The durable aluminum construction with a frosted polycarbonate lens ensures even illumination and reliable operation. Compatible with a wide range of troffers, strips, wraps, and vapor tight fixtures, this kit includes 0-10V dimming and a 50,000-hour lifespan.

Best for

• Garages and workshops needing adjustable overhead lighting for tasks
• Basements and utility rooms converting from fluorescent to LED for energy savings
• Commercial spaces like retail stockrooms or light industrial areas
• Damp locations such as covered patios or laundry rooms (damp rated)

Not ideal for

• Wet locations exposed to direct rain or hose spray (damp rated only)
• Residential living rooms or bedrooms where a decorative fixture is preferred

How bright is it?

Selectable from 1250 to 3750 lumens, equivalent to roughly 10W to 30W fluorescent. The 3750-lumen setting is suitable for a single-car garage or small workshop, while lower settings suit smaller utility spaces.

Light color and feel

Selectable CCT from 3000K (soft white) to 6500K (daylight). 3000K provides a warm, cozy glow; 5000K offers a neutral white; 6500K simulates daylight for task visibility. CRI 80+ ensures decent color rendering.

Sizing and fit

Each bar measures 41.73" long x 0.93" wide x 1.19" high. The kit is designed to fit into standard 4-foot fluorescent troffers and strip fixtures. Magnetic mounting makes installation quick and easy.

Specifications

• Finish: Silver
• Style: Utility
• Bulb Color Temp: 3000K/3500K/4000K/5000K/6500K
• Bulb Wattage: 30W/25W/20W/15W/10W
• Bulb Average Hours: 50000
• Bulb Lumens: 3750L/3125L/2500L/1875L/1250L
• Lamp Shape: Integrated LED
• Bulb CRI: 80+
• Voltage: 120V-277V
• Bulb Included: Integrated
• Lamp Base: Integrated
• Operating Temperature: -4F to +113F (-20C to +45C)
• Color Temperature: Soft White to Daylight
• Field Selectable (5 wattages and 5 CCT)
• Reduces Upgrade Material Waste
• 4 Foot, 1 Light Bar Aluminum & PC Construction
• 0-10V Dimmable
• Fully Pre-Wired Driver
• Quick & Easy Magnetic Installation
• Damp Location Rated
• 50,000 Hour Functional Life
• 5 Year Warranty
• Dimmable: True
• Assembly Required: True
• Safety Rating: CULUS - Certified Listed
• For Use in Damp Locations
• Warranty Info: 5-Years
• Overall Dimensions: 41.73"(D) x 0.93"(W) x 1.19"(H)
• Item Weight: 1.1 lbs.

Frequently asked

Is the bulb included? Yes, the LED bar is integrated and included.

Is it dimmable, and what dimmer should I use? Yes, it is 0-10V dimmable. Use a compatible 0-10V dimmer.

Can I install this in a bathroom or outdoors? It is rated for damp locations, so it can be used in bathrooms (not directly in shower spray) or covered outdoor areas.

What's the warranty? 5-year warranty.

Does it work with existing fluorescent ballasts? No, this is a direct-wire retrofit that bypasses the ballast. It connects directly to line voltage.
