Nuvo Lighting LED 1ftx4ft Backlit Panel, 120-347 Range Voltage White
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description

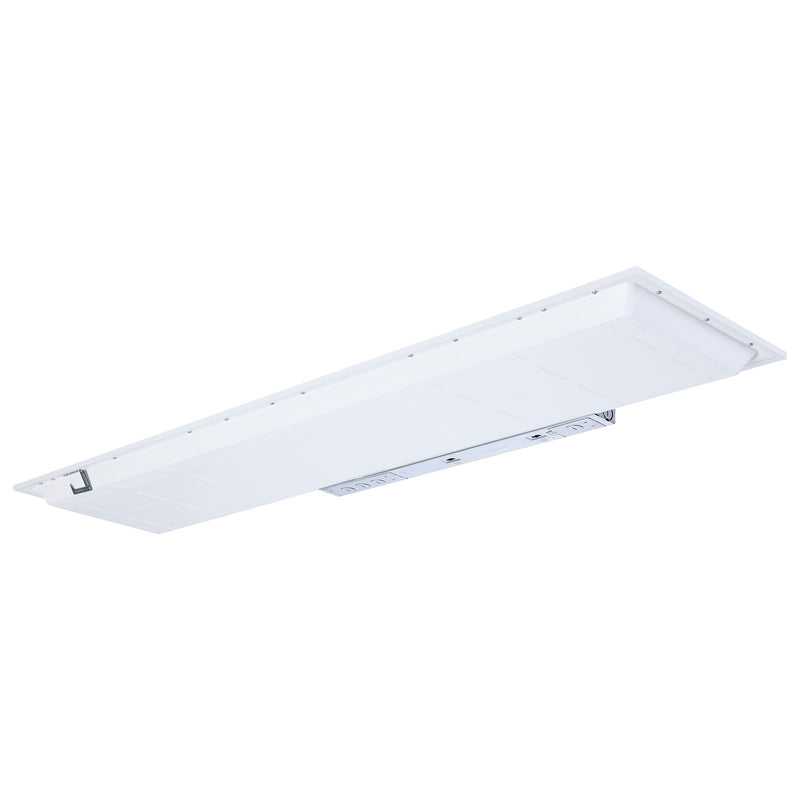

A 1x4 foot LED backlit panel flush mount for narrow spaces and corridors needing efficient, adjustable lighting in damp-rated locations.
The Nuvo Lighting 65-1673 Backlit Panel delivers reliable performance with selectable wattages of 20W, 30W, or 40W and universal voltage operation at 120–347V. This 1x4 standard model offers CCT selectability (3500K/4000K/5000K) to adapt to project requirements. Built with a steel body and die-cast aluminum trim, the fixture ensures seamless corners with no light leakage, while the polystyrene lens provides uniform illumination.
Best for
- Corridors, hallways, and narrow passageways in commercial buildings
- Office break rooms, small conference rooms, and cubicle areas
- Schools, classrooms, and libraries where adjustable color temperature supports different activities
- Retail aisles and display areas requiring bright, even illumination
- Damp-rated locations like covered walkways and laundry rooms
Not ideal for
- Large open spaces that require a 2x2 or 2x4 panel for adequate coverage
- Residential living rooms or bedrooms where a decorative fixture is desired
- Outdoor areas exposed to direct rain or water spray (damp-rated only, not wet-rated)
How bright is it?
Selectable lumen output: 2500 lumens (20W), 3750 lumens (30W), or 5000 lumens (40W). At the highest setting, it's comparable to a 300W incandescent bulb, suitable for general ambient lighting in medium-sized rooms. The lowest setting is ideal for accent or task lighting.
Light color and feel

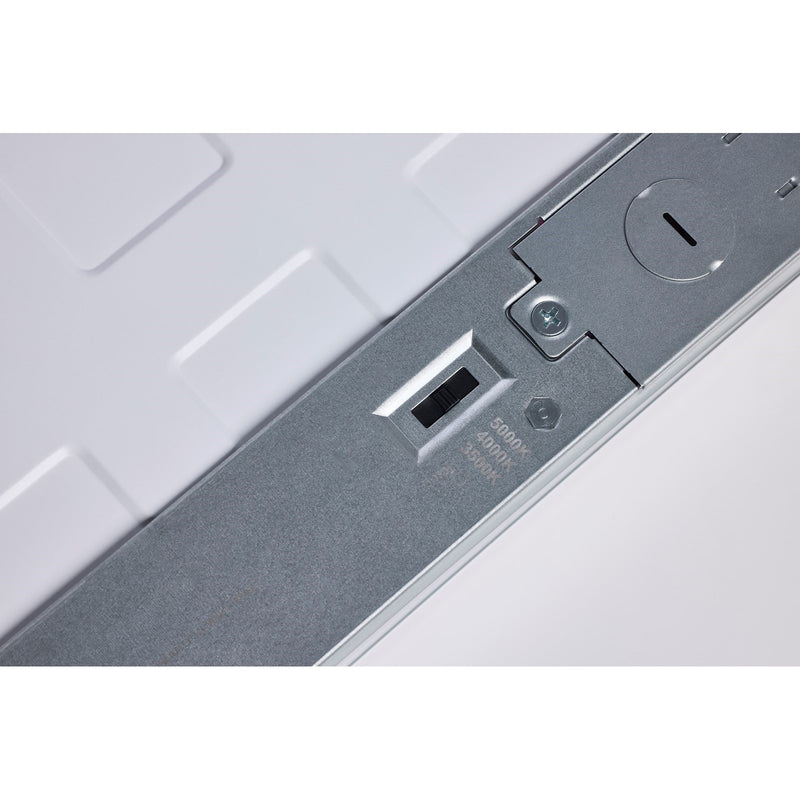

Three selectable color temperatures: 3500K (warm white), 4000K (neutral white), and 5000K (daylight). 3500K provides a cozy, inviting glow; 4000K is crisp and clean for workspaces; 5000K simulates natural daylight for tasks requiring high visibility. CRI 80+ ensures decent color rendering. Dimmable down to 10% via 0-10V dimmer (not included).
Sizing and fit
Dimensions: 47.76 x 11.93 x 1.38 inches. Fits standard 1x4 ft grid ceilings or can be surface-mounted on any ceiling. Works well in narrow rooms and corridors up to 100 sq ft with 8-10 ft ceilings.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 3500K/4000K/5000K
- Bulb Wattage: 20W/30W/40W
- Bulb Average Hours: 50000
- Bulb Lumens: 2500L/3750L/5000L
- Lamp Shape: Integrated LED
- Bulb CRI: 80+
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Operating Temperature: +1.4F to +113F (-17C to +45C)
- Color Temperature: Neutral White to Natural Light
- Field Selectable - 3 CCT and 3 Wattage
- 1X4 Panel
- Standard Model
- 120-347 Voltage
- Steel Body with Die-cast Aluminum Trim for Seamless Corners
- TAA Compliant
- Damp Location Rated
- 5 Year Warranty
- 50,000 Hour Functional Life
- Dimmable: True
- Assembly Required: True
- Safety Rating: CULUS - Certified Listed
- For Use in Damp Locations
- Warranty Info: 5-Years
Frequently asked
Is the bulb included? Yes, integrated LED - no bulb replacement needed.
Is it dimmable, and what dimmer should I use? Yes, dimmable down to 10% using a 0-10V dimmer (sold separately).
Can I install this in a bathroom or outdoors? It is rated for damp locations, so it can be used in bathrooms (not directly in shower spray) and covered outdoor areas. Not for wet locations.
What's the warranty? 5-year warranty.
Does this panel work with 277V systems? Yes, it operates on 120-347V, covering both 120V and 277V commercial systems.
