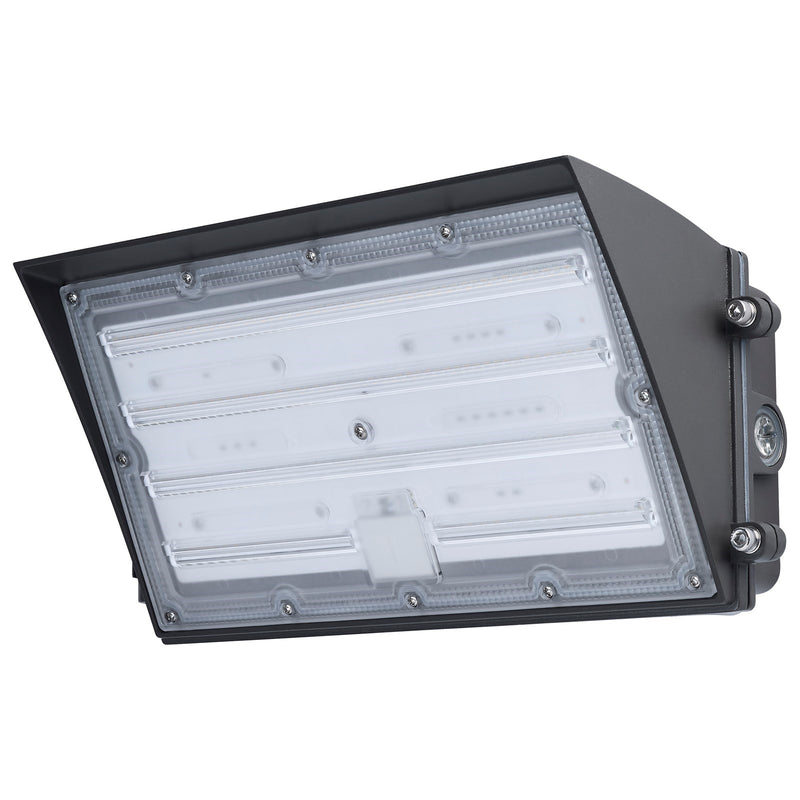

Nuvo Lighting 65-942 80W LED Semi Cutoff Wall Pack | Utility Bronze Die-Cast Aluminum | Commercial Exterior & Parking Areas | Model 65-942
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description
A powerful, semi-cutoff LED wall pack for commercial exteriors and parking areas, finished in corrosion-resistant bronze.
This Nuvo Lighting wall pack provides broad, efficient illumination with field-selectable wattage (45W/60W/80W) and color temperature (3000K/4000K/5000K). The semi-cutoff distribution offers wider forward light spread and increased vertical illumination. Built with a rugged die-cast aluminum housing and impact-resistant polycarbonate lens, it's designed for demanding outdoor environments.
Best for

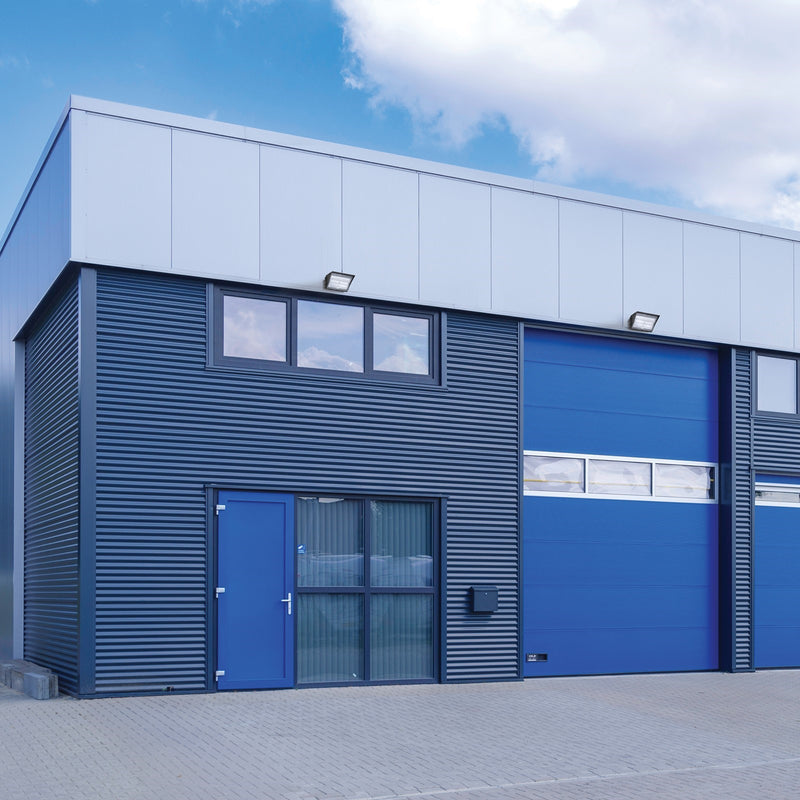

- Commercial building exteriors, providing security and visibility
- Parking lots and loading docks, illuminating large areas
- Entryways and walkways, with dusk-to-dawn operation via photocell
- Industrial facilities, offering reliable, high-output lighting
- Outdoor areas needing wet-location rated fixtures
Not ideal for
- Indoor-only applications, as this fixture is designed for outdoor use
- Spaces requiring a full cutoff distribution to minimize light trespass
- Areas needing very low light output, as the minimum is 7,243 lumens
How bright is it?
Output ranges from 7,243 to 12,436 lumens depending on wattage setting - comparable to a 100W-250W HID fixture. This is sufficient for security and area lighting in commercial settings.
Light color and feel
Choose from 3000K warm white, 4000K neutral white, or 5000K daylight to match your preference. With a CRI of 80+, colors appear natural. The fixture is 0-10V dimmable for adjustable light levels.
Sizing and fit

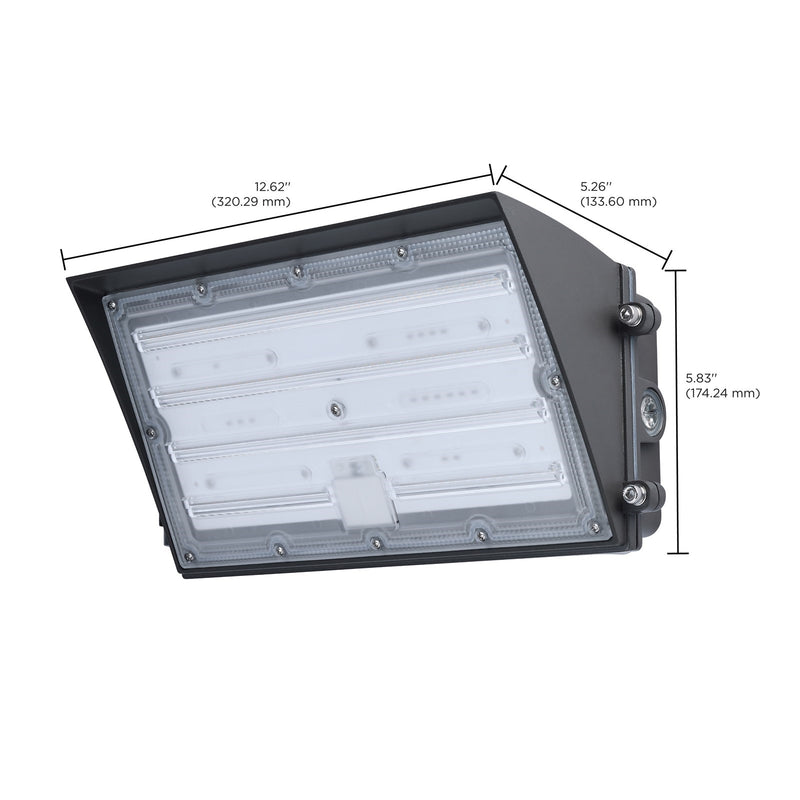

Dimensions of 12.62" W x 5.26" D x 5.83" H make it suitable for mounting on walls or poles. The semi-cutoff design directs light downward and outward.
Specifications
- Fixture Finish: Bronze
- Style: Utility
- Bulb Wattage: 45W/60W/80W
- Lamp Shape: Integrated LED
- ANSI Base: Integrated
- Lamp Base: Integrated
- Bulb Included: Integrated
- Dimmable: True
- Dimmable: 0-10V Dimming
- Voltage: 120V-277V
- Lumens: 7243L-12436L
- Color Temperature: 3000K/4000K/5000K K
- CRI: 80+
- 3 Wattage Selectable (80W/60W/45W)
- 3 CCT Selectable (3000K/4000K/5000K)
- Range Voltage 120-277V
- Integrated By-Passable Photocell
- 4kV Surge Protection
- IP65 & IK08 Rated
- 0-10V Dimmable
- 50,000 Life Hours
- 5 Year Warranty
- Assembly Required: True
- Location Rating: Wet
- Safety Location: CULUS - Certified
- Indoor/Outdoor: Outdoor
- CA Prop 65: Lead
- Warranty: 5-Years
- HID Equivalent: 100W-250WW
- Color Temperature: Soft White to Natural Light
- Average Hours Rated: 50000
- Wattage Selectable: True
- CCT Selectable: True
- Operating Temperature: -40F to +104F (-40C to +40C)
- DLC: True
- Title 20: Exempt
- CEC: Lawful for sale in California
Frequently asked
Is the bulb included? Yes, the LED is integrated and not replaceable.
Is it dimmable, and what dimmer should I use? Yes, it supports 0-10V dimming. Use a compatible 0-10V dimmer.
Can I install this in a bathroom or outdoors? It is rated for wet locations, so it's suitable for outdoor use, including areas exposed to rain or moisture.
What's the warranty? 5-year warranty.
What is the difference between semi-cutoff and full cutoff? Semi-cutoff allows some light to escape above the horizontal plane, providing wider spread and vertical illumination, while full cutoff minimizes light trespass.
