Nuvo Lighting 65-1543 LED Flood Light | Utility Bronze Die-Cast Aluminum & Glass | Parking Lots & Building Facades | 200W/250W/300W | Model 65-1543
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description
A high-output LED flood light for large outdoor areas like parking lots, building facades, and sports fields, with selectable wattage, color temperature, and beam angle.

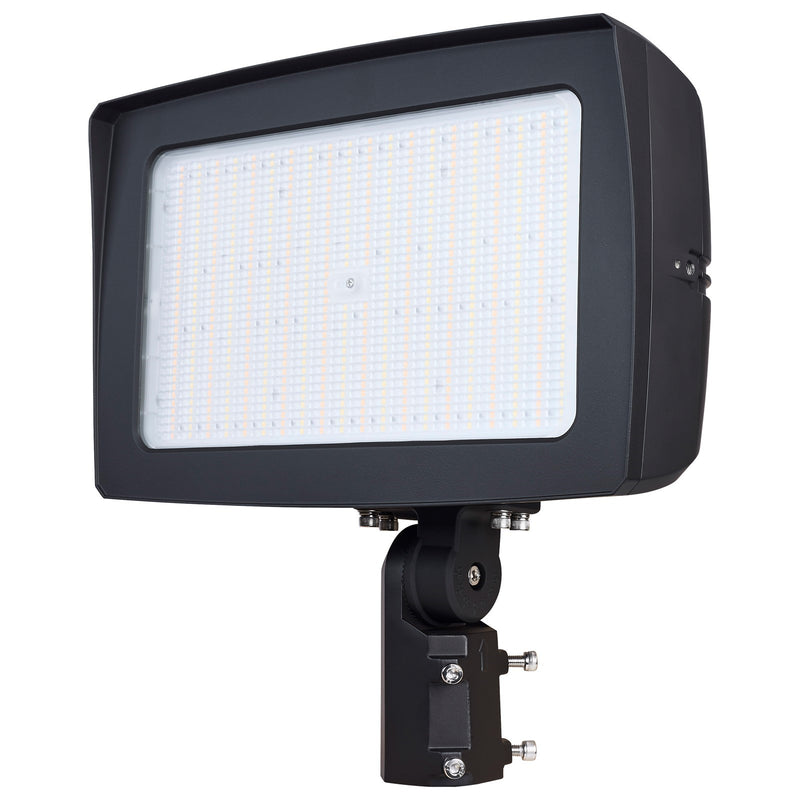

This Nuvo Lighting flood light delivers powerful illumination with a rugged die-cast aluminum housing and glass lens in a bronze finish. Field-selectable wattage (200W/250W/300W) and CCT (3000K/4000K/5000K) allow customization for various applications. The beam angle is also selectable (7Vx6H, 6Vx6H, or 5Vx5H) to optimize coverage. An integrated bypassable photocell enables dusk-to-dawn operation.
Best for
- Parking lots and driveways needing wide-area, high-brightness illumination

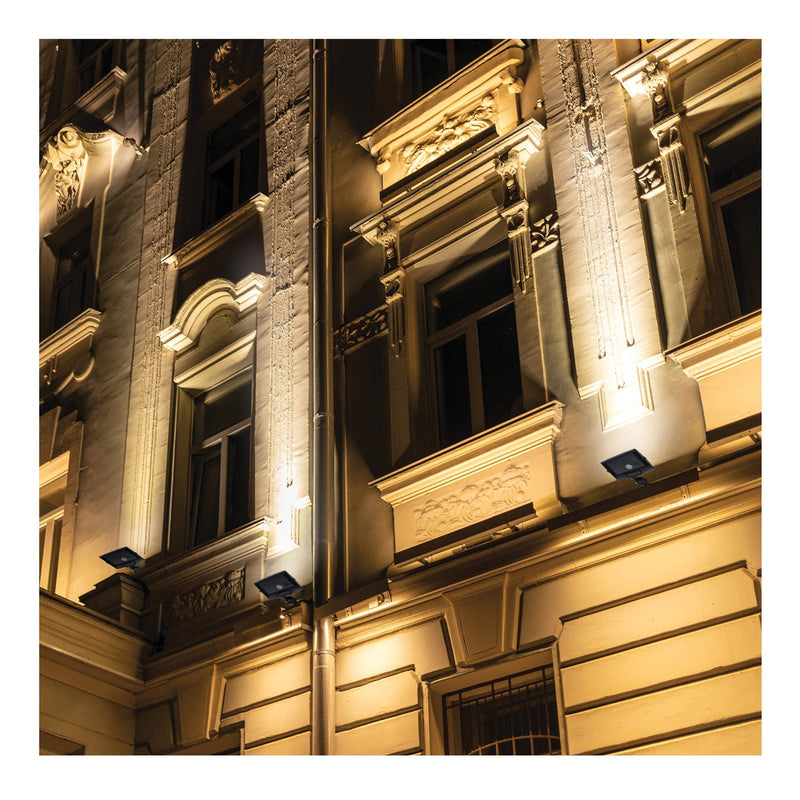

- Building facades and signage lighting for commercial properties
- Sports fields and recreational areas requiring bright, even light
- Security lighting for industrial and warehouse facilities
- Outdoor event spaces and large gathering areas
Not ideal for
- Residential gardens or small patios - this is a commercial-grade fixture
- Indoor spaces - this is designed for outdoor use
- Areas with very low mounting heights (under 15 feet) where the light output may be overwhelming
How bright is it?
Output ranges from 29,611 to 47,273 lumens depending on wattage setting - equivalent to a 650W-1000W HID fixture. This is extremely bright, suitable for large outdoor areas, but may be excessive for small spaces.
Light color and feel
Selectable CCT of 3000K (soft white), 4000K (cool white), or 5000K (daylight). 3000K provides a warm, inviting glow, while 5000K is better for security and visibility. CRI of 80 renders colors adequately. Dimmable via 0-10V dimming for flexible control.
Sizing and fit

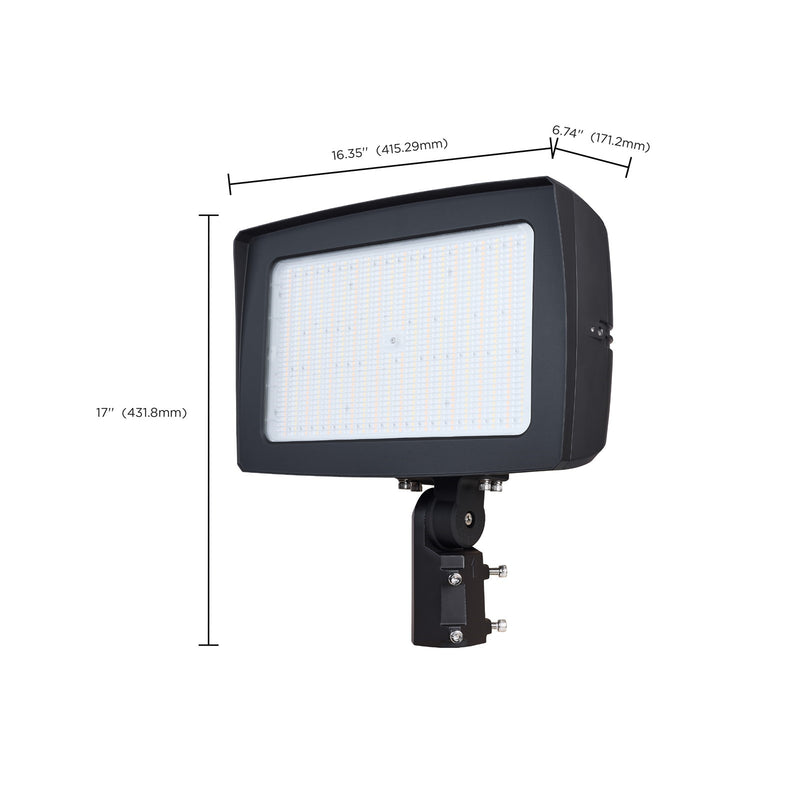

Dimensions: 16.35" D x 6.74" W x 17" H. Weighs 17.24 lbs. Includes a mounting bracket for wall or pole mounting. Ensure your mounting surface can support the weight and wind load.
Specifications
- Fixture Finish: Bronze
- Style: Utility
- Bulb Wattage: 300W/250W/200W
- Lamp Shape: Integrated LED
- ANSI Base: Integrated
- Lamp Base: Integrated
- Bulb Included: Integrated
- Dimmable: True (0-10V Dimming)
- Voltage: 120V-347V
- Lumens: 29611L-47273L
- Color Temperature: 3000K/4000K/5000K
- CRI: 80
- Beam Selectable (7Vx6H/6Vx6H/5Vx5H)
- 3 CCT Selectable (3000K/4000K/5000K)
- 3 Wattage Selectable (300W/250W/200W)
- 6kV Surge Protection
- IP65 Rated
- Die-Cast Aluminum Housing with Glass Lens
- Integrated By-Passable Photocell
- 120-347V Range Voltage and 0-10V Dimmable
- 50,000 Life Hours
- 5 Year Warranty
- Assembly Required: True
- Location Rating: Wet
- Safety Location: CULUS - Listed
- Indoor/Outdoor: Outdoor
- CA Prop 65: Lead
- Incandescent Equivalent: 600W-800W
- HID Equivalent: 650W-1000W
- Color Temperature: Soft White to Natural Light
- Average Hours Rated: 50000
- Wattage Selectable: True
- CCT Selectable: True
- Driver Included: True
- Operating Temperature: -40F to +122F (-40C to +50C)
- DLC: True
- Title 20: Exempt
- CEC: Lawful for sale in California
- Overall Dimensions: 16.35"(D) x 6.74"(W) x 17"(H)
- Item Weight: 17.24 lbs.
Frequently asked
Is the bulb included? Yes, the LED is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via 0-10V dimming. Use a compatible 0-10V dimmer.
Can I install this in a bathroom or outdoors? It is wet-rated, so it is suitable for outdoor installation, including areas exposed to rain and moisture.
What's the warranty? 5-year warranty.
Can I change the beam angle? Yes, the beam angle is field-selectable among three options: 7Vx6H, 6Vx6H, and 5Vx5H.
