Nuvo Lighting 65-1302 2x4 LED Center Basket Troffer Retrofit Kit | Utility Matte White Finish | Commercial & Utility Rooms | Model 65-1302
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description

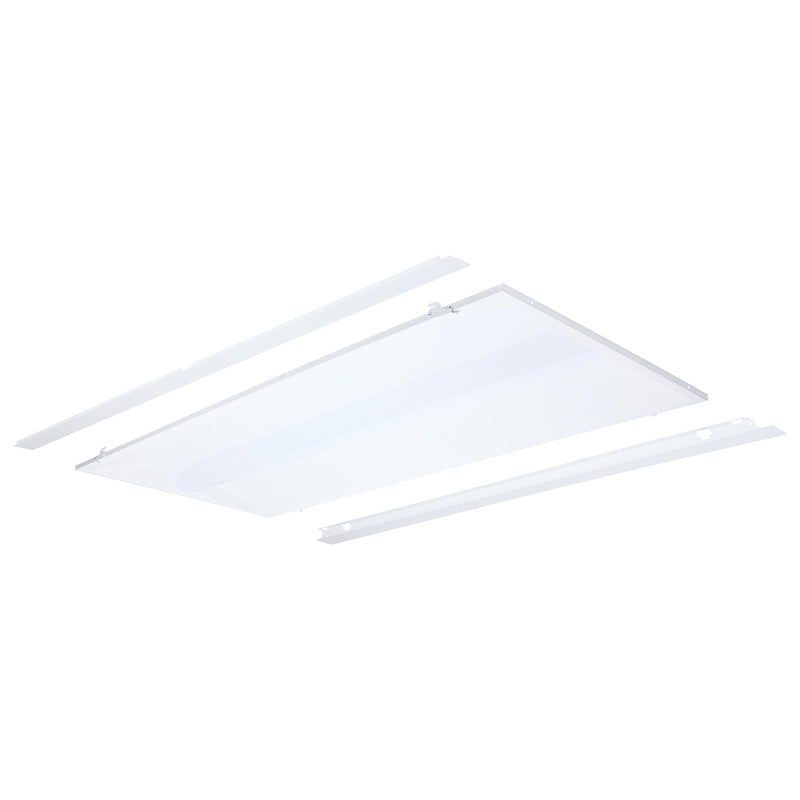

A 2x4 LED retrofit kit for upgrading existing troffer housings to energy-efficient LED lighting.
This Nuvo Lighting retrofit kit is designed to fit into existing 2x4 troffer housings, transforming legacy fluorescent fixtures into modern LED performance. By reusing the original housing, it reduces installation time and waste. With selectable wattage (30W/40W/50W) and CCT (3500K/4000K/5000K), it offers flexibility for various commercial applications.
Best for
- Offices and commercial buildings upgrading from fluorescent troffers
- Retail spaces seeking energy-efficient, uniform lighting
- Educational facilities modernizing classroom lighting
- Healthcare environments requiring reliable, bright illumination
- Utility areas like storage rooms and corridors
Not ideal for
- Residential living rooms or bedrooms where a decorative fixture is preferred
- Outdoor or wet locations - this fixture is rated for damp locations only
- Spaces without existing 2x4 troffer housings
How bright is it?
Selectable output from 3750 to 6250 lumens - roughly equivalent to a 125W to 200W incandescent bulb. At the 6250-lumen setting, it's suitable for general lighting in large rooms; at 3750 lumens, it works well for smaller areas or task lighting.
Light color and feel
Choose from 3500K (neutral white), 4000K (cool white), or 5000K (daylight). 3500K offers a warm, inviting tone; 4000K is crisp and neutral; 5000K mimics natural daylight, ideal for task-oriented spaces. With a CRI of 80+, colors appear natural and accurate.
Sizing and fit

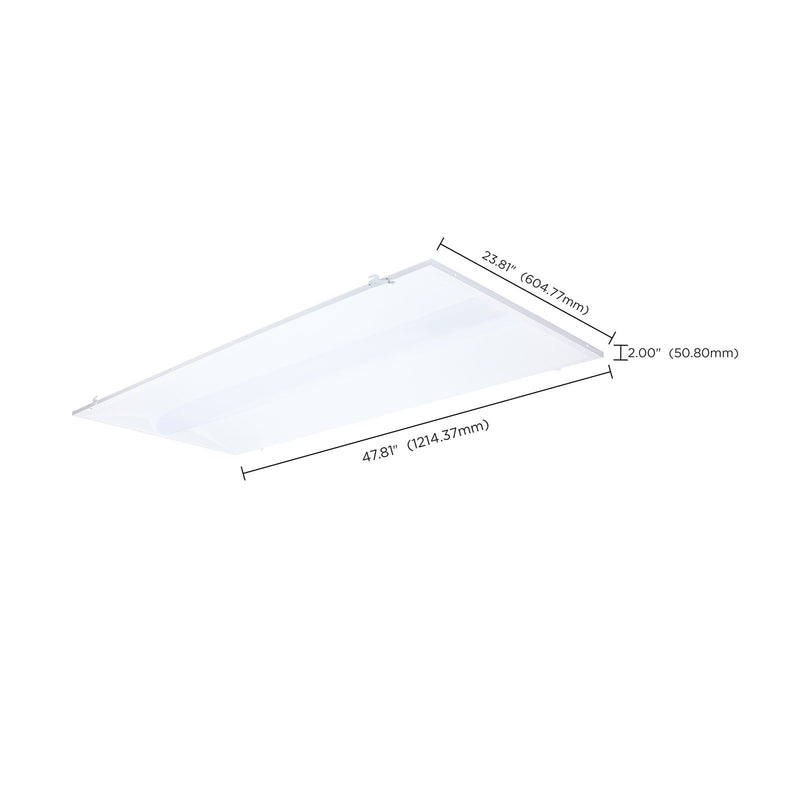

Measures 47.81 inches long, 23.81 inches wide, and 2 inches deep, fitting standard 2x4 ceiling grids. The low profile makes it suitable for ceilings as low as 8 feet.
Specifications
- Fixture Finish: Matte White
- Style: Utility
- Bulb Wattage: 50W/40W/30W
- Lamp Shape: Integrated LED
- ANSI Base: Integrated
- Lamp Base: Integrated
- Bulb Included: Integrated
- Dimmable: True (0-10V Dimming)
- Voltage: 120V-277V
- Lumens: 6250L/5000L/3750L
- Color Temperature: 3500K/4000K/5000K
- CRI: 80+
- Field Selectable (3 wattages and 3 CCT)
- Reduces Upgrade Material Waste
- 2x4-Foot Steel Construction
- 0-10V Dimmable
- Integrated Safety Tether
- IC Rated
- Damp Location Rated
- 50,000 Hour Functional Life
- 5 Year Warranty
- Assembly Required: True
- Location Rating: Damp
- Safety Location: CETLUS - Classified
- Indoor/Outdoor: Indoor
- CA Prop 65: Lead
- Warranty: 5-Years
- Incandescent Equivalent: 125W
- Fluorescent Equivalent: 3 x 32W T8
- Color Temperature: Neutral White to Natural Light
- Average Hours Rated: 50000
- Wattage Selectable: True
- CCT Selectable: True
- Operating Temperature: -4F to +104F (-20C to +40C)
- DLC: True
- Title 20: Exempt
- CEC: Lawful for sale in California
Frequently asked
Is the bulb included? Yes, the LED is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable with 0-10V dimming. Use a compatible 0-10V dimmer.
Can I install this in a bathroom or outdoors? It is rated for damp locations, so it can be used in bathrooms but not outdoors or in wet areas.
What's the warranty? 5-year warranty.
How do I select the wattage and color temperature? There are switches on the fixture that allow you to choose between 30W, 40W, or 50W and 3500K, 4000K, or 5000K.
