Description

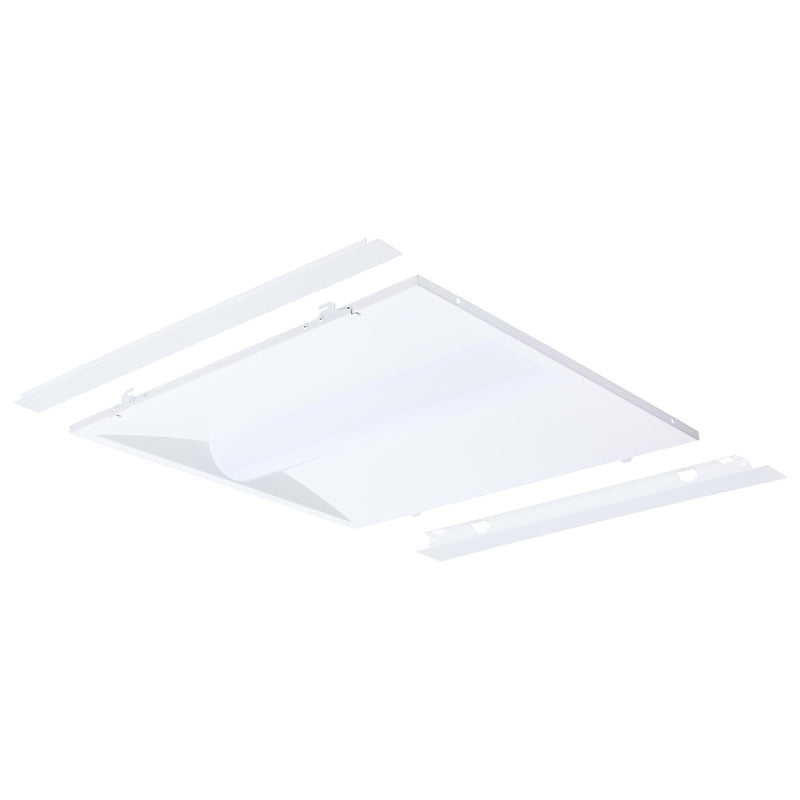

A 2x2-foot LED troffer retrofit kit for upgrading old fluorescent fixtures in commercial and office spaces, finished in matte white.
This Nuvo Lighting retrofit kit lets you modernize existing 2x2 troffer housings with energy-efficient LED technology. It uses the original housing, reducing waste and installation time. The integrated safety tether simplifies installation, and the selectable wattage and color temperature let you customize light output on site.
Best for

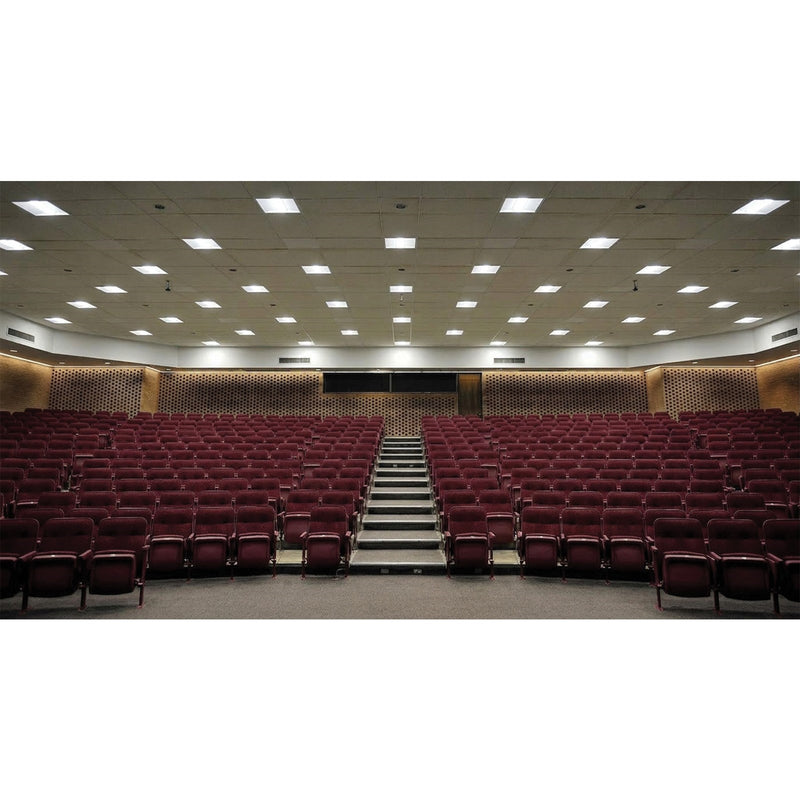

- Office ceilings, conference rooms, and commercial spaces
- Retrofitting existing 2x2 troffer housings to LED
- Damp locations like covered entryways or bathrooms
- Areas needing 0-10V dimming for flexible light control
- Replacing 3 x 17W T8 fluorescent troffers
Not ideal for
- Residential rooms with low ceilings - this is a commercial-grade troffer
- Outdoor or wet locations - rated for damp locations only
How bright is it?
Output ranges from 2,500 to 5,000 lumens depending on wattage setting (20W, 30W, or 40W). That's roughly equivalent to a 125W incandescent bulb - suitable for general office lighting.
Light color and feel
Choose from 3500K (neutral white), 4000K (natural white), or 5000K (daylight). 3500K is warm and inviting; 5000K is crisp and alert, ideal for workspaces. CRI is 80+, which is standard for commercial lighting.
Sizing and fit

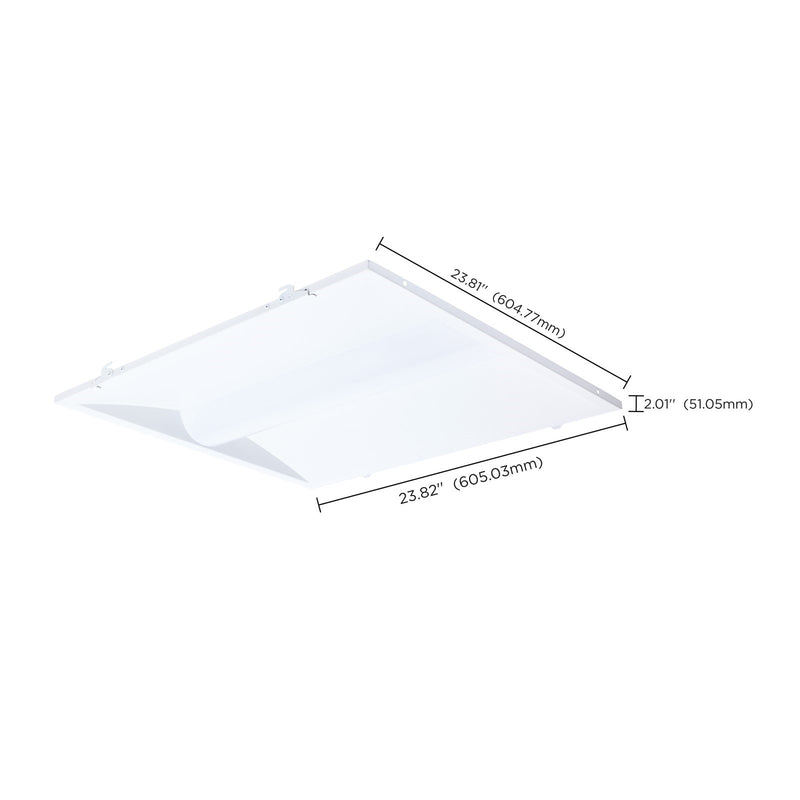

Measures 23.82 inches deep, 23.81 inches wide, and 2.01 inches high. Weighs 4.19 lbs. Designed to fit standard 2x2 troffer housings.
Specifications
- Fixture Finish: Matte White
- Style: Utility
- Bulb Wattage: 40W/30W/20W
- Lamp Shape: Integrated LED
- ANSI Base: Integrated
- Lamp Base: Integrated
- Bulb Included: Integrated
- Dimmable: True (0-10V Dimming)
- Voltage: 120V-277V
- Lumens: 5000L/3750L/2500L
- Color Temperature: 3500K/4000K/5000K
- CRI: 80+
- Field Selectable (3 wattages and 3 CCT)
- Reduces Upgrade Material Waste
- 2x2-Foot Steel Construction
- 0-10V Dimmable
- Integrated Safety Tether
- IC Rated
- Damp Location Rated
- 50,000 Hour Functional Life
- 5 Year Warranty
- Assembly Required: True
- Location Rating: Damp
- Safety Location: CETLUS - Classified
- Indoor/Outdoor: Indoor
- CA Prop 65: Lead
- Incandescent Equivalent: 125W
- Fluorescent Equivalent: 3 x 17W T8
- Color Temperature: Neutral White to Natural Light
- Average Hours Rated: 50000
- Wattage Selectable: True
- CCT Selectable: True
- Operating Temperature: -4F to +104F (-20C to +40C)
- DLC: True
- Title 20: Exempt
- CEC: Lawful for sale in California
Frequently asked
Is the bulb included? Yes, the LED is integrated.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via 0-10V dimming.
Can I install this in a bathroom or outdoors? It is rated for damp locations, so it can be installed in bathrooms but not outdoors.
What's the warranty? 5-year warranty.
Does it require a special housing? It is designed to retrofit into existing 2x2 troffer housings.
