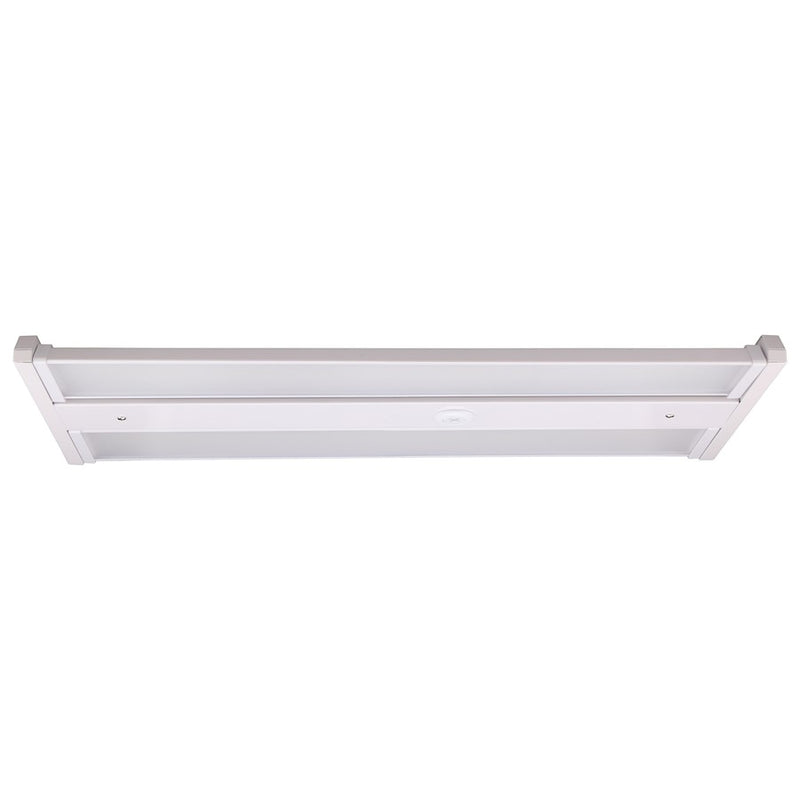

Nuvo Lighting 26in LED Adjustable High Bay 165W 5000K | Utility White Finish with PIR Sensor | Warehouse & Retail Space | 22816 Lumens | Model 65-646R1

A 165-watt LED high bay fixture for warehouses, retail spaces, and commercial work areas, delivering 22816 lumens of natural white light in a durable white finish.

Satco's 65-646R1 high bay LED fixture is a rugged lighting solution for commercial applications. Illuminate work areas and retail spaces with this durable, adjustable fixture. This dimmable fixture is sleek, functional, and delivers 50,000 hours of natural white light. The built-in PIR sensor adds energy-saving motion detection, making it ideal for spaces where lights are not needed continuously.

Best for

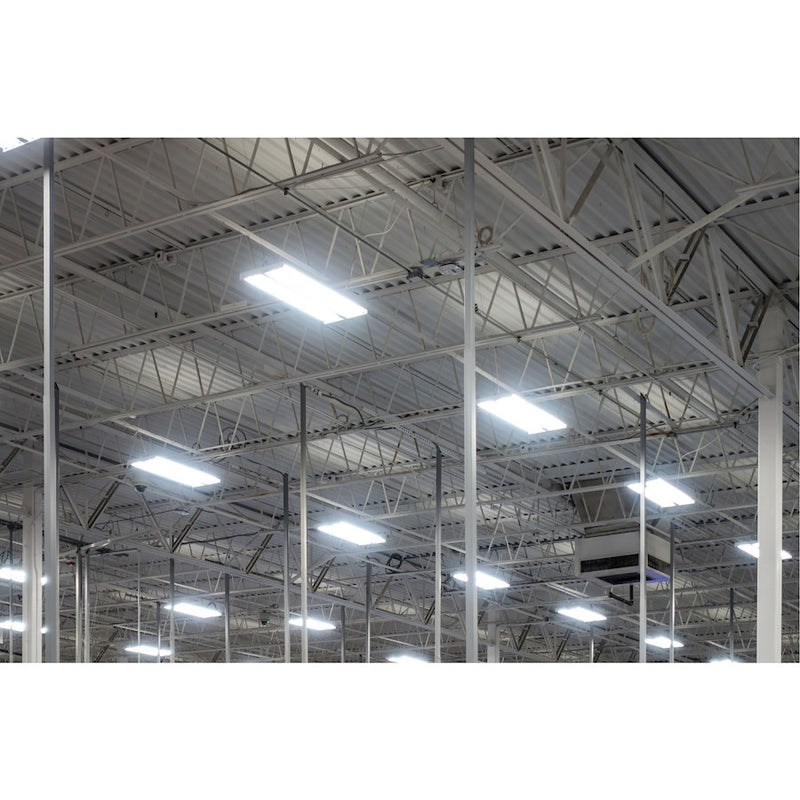

• Warehouses and distribution centers with ceiling heights 15-25 ft, providing bright ambient light over aisles and storage areas
• Retail spaces and showrooms needing high-output, even illumination with motion-activated control
• Commercial workshops and garages where 5000K natural white light improves visibility for detailed tasks
• Indoor sports facilities and gymnasiums requiring durable, long-lasting fixtures with 50,000-hour lifespan
• Covered loading docks and damp indoor areas (damp location rated)

Not ideal for

• Residential living spaces or bedrooms - the high lumen output and utility style are better suited for commercial environments
• Wet or outdoor locations without additional weatherproofing - damp rated only
• Spaces with ceilings under 10 ft - the light spread may be too intense and cause glare

How bright is it?

22816 lumens - comparable to a 165W metal halide or about 15 standard 60W incandescent bulbs. This is very bright, suitable for large commercial areas as primary lighting. Not recommended for small rooms or residential use.

Light color and feel

5000K natural white - a crisp, cool white similar to daylight on a cloudy afternoon. Enhances contrast and alertness, ideal for work environments. CRI not specified but typical for commercial LED fixtures. Dimmable with compatible dimmers for adjustable brightness.

Sizing and fit

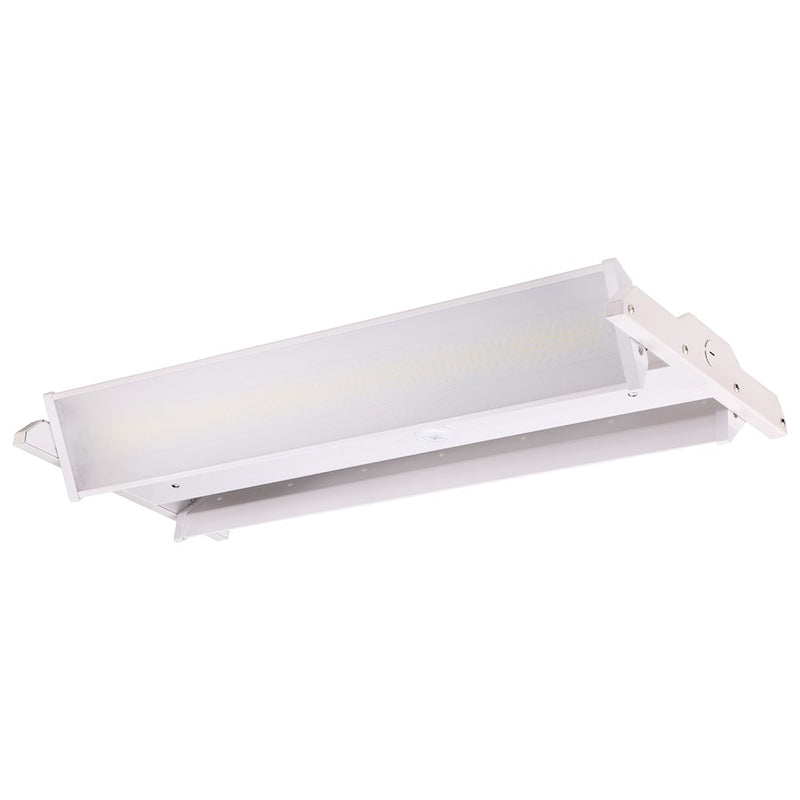

26 inches long, 12 inches wide, and just 1.88 inches tall - a low-profile fixture that mounts flush to the ceiling. Weighs 9 lbs. Suitable for ceilings 15-25 ft. Adjustable mounting allows aiming light where needed.

Specifications

• Finish: White
• Style: Utility
• Voltage: 120V-277V
• Length: 26.00 inches, Width: 12.00 inches, Height: 1.88 inches
• Damp location rated for indoor use
• Has PIR Sensor
• 5000K Natural White Light
• Rated for 50,000 hours
• Dimmable
• 5 year limited warranty
• 22816 lumens
• Assembly Required: Yes
• Replaceable Light Source: No

Frequently asked

Is the bulb included? The light source is integrated LED and is not replaceable.

Is it dimmable, and what dimmer should I use? Yes, it is dimmable. Use a compatible LED dimmer for best performance.

Can I install this in a bathroom or outdoors? It is damp location rated for indoor use, so it can be used in covered, damp indoor areas but not outdoors exposed to rain.

What's the warranty? 5 year limited warranty.

How does the PIR sensor work? The built-in motion sensor automatically turns the light on when movement is detected and off after a set time, saving energy in spaces with intermittent occupancy.
