Nuvo LED High Bay 105/90/70W 3K/4K/5K Beam Angle White 120-347 Volt

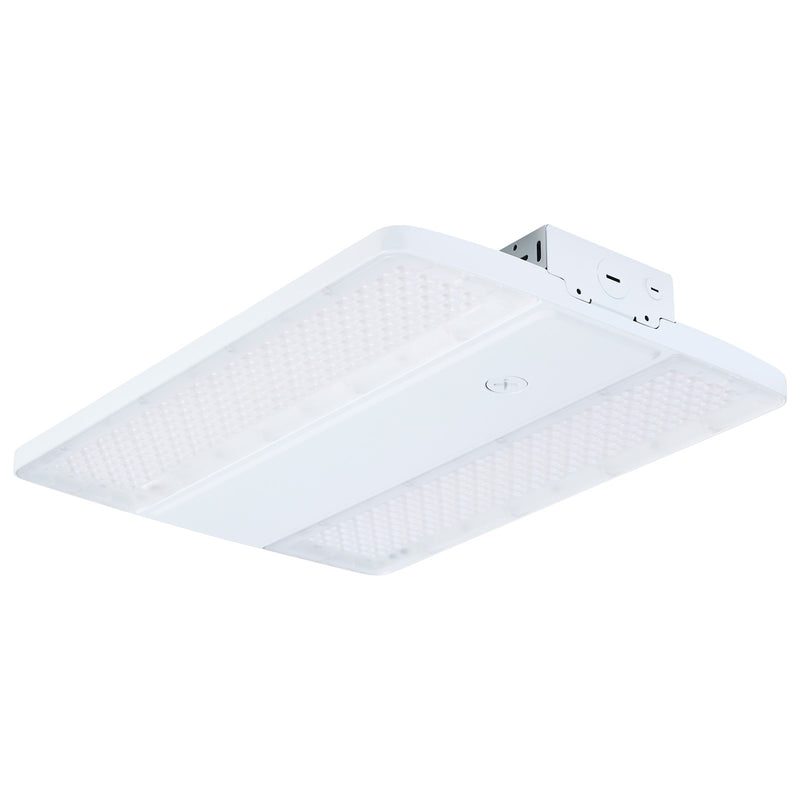

A 15-inch linear LED high bay flush mount for commercial and industrial spaces, offering field-selectable wattage (70W/90W/105W) and CCT (3000K/4000K/5000K) with up to 15,600 lumens in a white die-cast aluminum housing.

The Nuvo 65-1510 Linear High Bay delivers configurable illumination for high-ceiling environments like warehouses, gymnasiums, and retail stores. Its die-cast aluminum housing with IK09-rated polycarbonate lens ensures durability, while selectable beam distributions (45x100, 65x95, 90x90) adapt to aisle or wide-area layouts. The integrated sensor port and included suspension kit simplify installation.

Best for

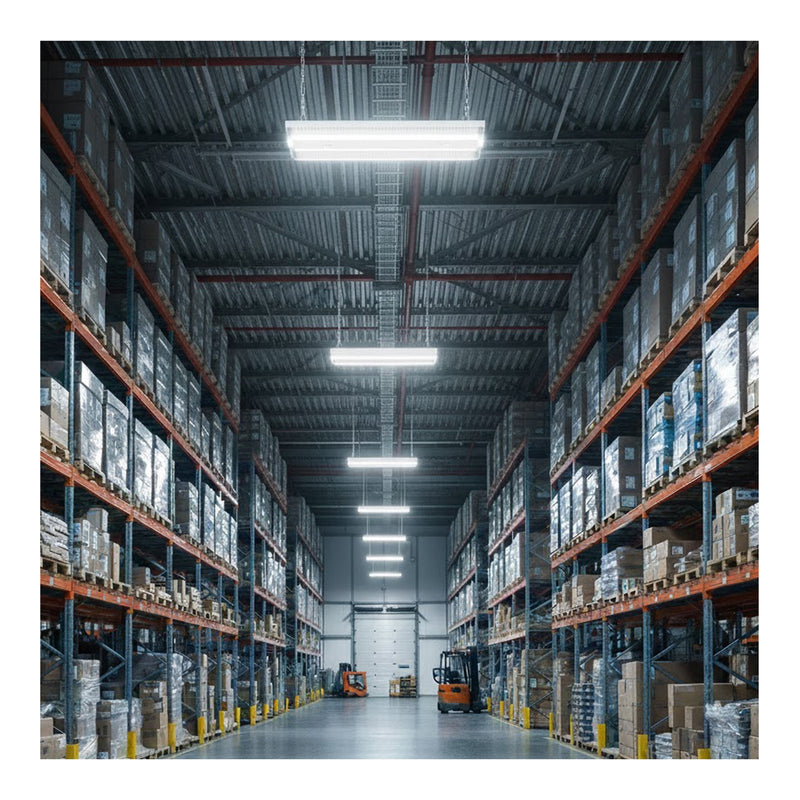

• Warehouses and storage facilities with ceiling heights of 15-30 ft, providing bright, uniform light
• Gymnasiums and indoor sports courts needing high lumen output and selectable beam angles
• Retail showrooms and big-box stores requiring energy-efficient overhead lighting
• Damp locations such as covered patios or unconditioned warehouses (damp-rated)
• Spaces with 120-347V power systems and 0-10V dimming requirements

Not ideal for

• Residential rooms or low ceilings under 12 ft - the linear form factor and high output may not suit
• Wet locations with direct water exposure (damp-rated only, not wet-rated)
• Decorative or low-profile applications

How bright is it?

Up to 15,600 lumens at 105W - comparable to a 100W metal halide fixture. This is bright enough for primary lighting in medium-sized commercial spaces. At the lowest setting (70W), it produces 9,870 lumens.

Light color and feel

Selectable CCT: 3000K (warm white), 4000K (neutral white), or 5000K (daylight). CRI 80 provides adequate color rendering. Fully dimmable via 0-10V control.

Sizing and fit

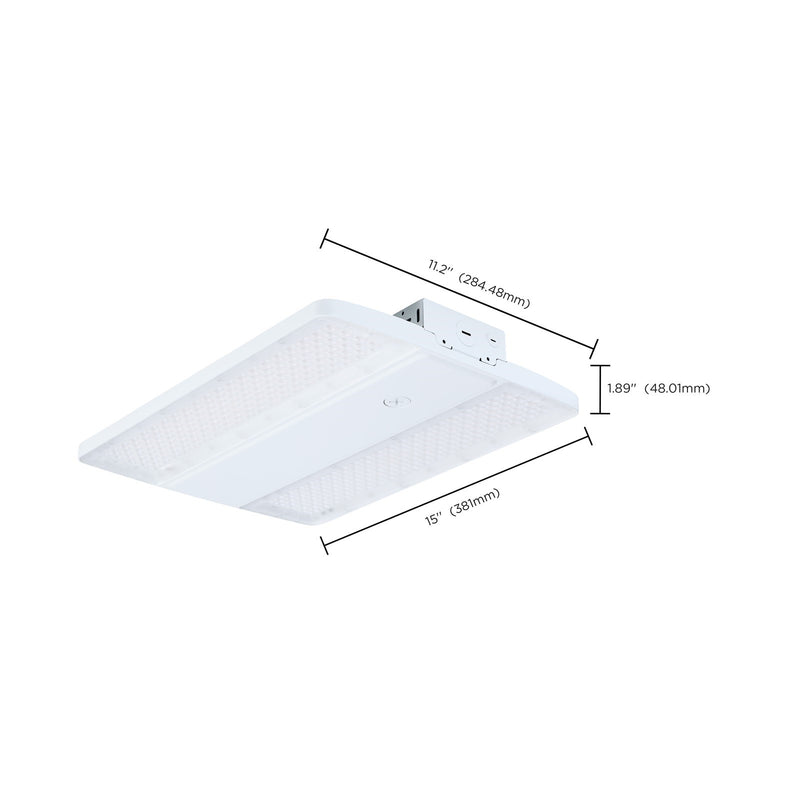

Dimensions: 15"(D) x 11.2"(W) x 42.89"(H) - includes suspension kit. Suitable for ceiling heights from 12 to 30 ft. Weight: 5.28 lbs.

Specifications

• Finish: White
• Style: Utility
• Bulb Color Temp: 3000K/4000K/5000K
• Bulb Wattage: 105W/90W/70W
• Bulb Average Hours: 50000
• Bulb Lumens: 9870L-15600L
• Lamp Shape: Integrated LED
• Bulb CRI: 80
• Voltage: 120V-347V
• Bulb Included: Integrated
• Lamp Base: Integrated
• Sensor: Daylight
• Operating Temperature: -40F to +122F (-40C to +50C)
• Color Temperature: Soft White to Natural Light
• Beam Selectable (45x100/65x95/90x90)
• 3 CCT Selectable (3000K/4000K/5000K)
• 3 Wattage Selectable (105W/90W/70W)
• 6kV Surge Protection
• Die-Cast Aluminum Housing with IK09 Rated PC Lens
• Integrated Sensor Port
• 120-347V Range Voltage and 0-10V Dimmable
• 41" Suspension Kit Included
• 50,000 Life Hours
• 5 Year Warranty
• Dimmable: True
• Driver Included: True
• Assembly Required: True
• Safety Rating: CULUS - Listed Listed
• For Use in Damp Locations
• Warranty Info: 5-Years
• Overall Dimensions: 15"(D) x 11.2"(W) x 42.89"(H)
• Item Weight: 5.28 lbs.

Frequently asked

Is the bulb included? Yes, integrated LED.

Is it dimmable, and what dimmer should I use? Yes, 0-10V dimmable. Use a compatible 0-10V dimmer.

Can I install this in a bathroom or outdoors? It is rated for damp locations, suitable for covered outdoor areas or bathrooms with no direct water spray.

What's the warranty? 5-year warranty.

Does it come with a suspension kit? Yes, a 41" suspension kit is included.
