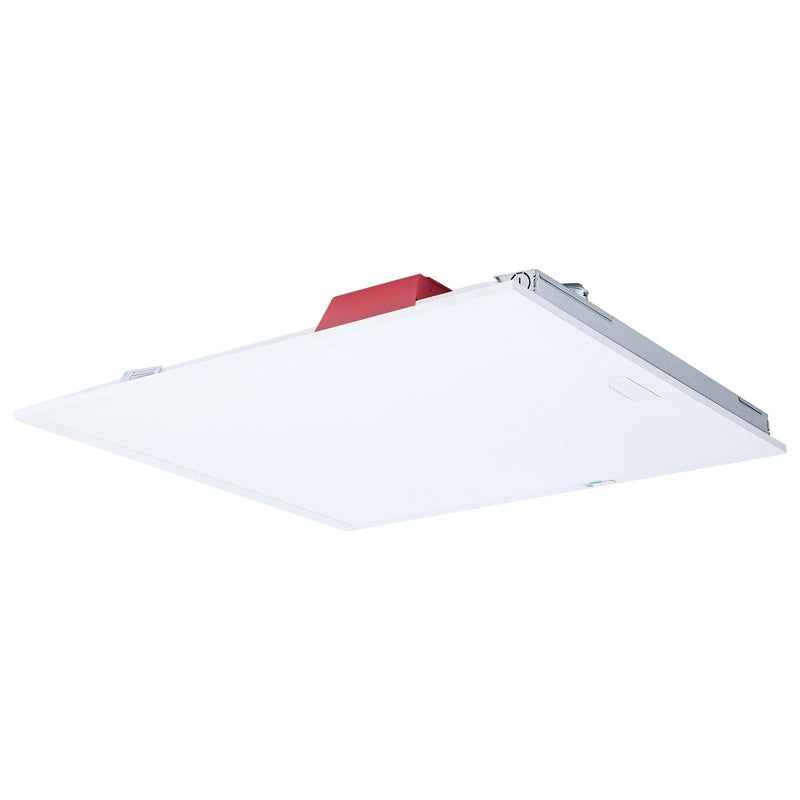

Nuvo LED 2ftx2ft Backlit Panel, Emergency Battery 120-347V, White
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description
A 2x2-foot backlit LED panel with integrated emergency battery, ideal for offices, classrooms, and commercial spaces needing compact emergency lighting.
The Nuvo 65-1675 Backlit Panel provides selectable wattage and color temperature in a square 2x2 footprint. Its steel body and die-cast aluminum trim offer a clean, durable design, while the polystyrene lens ensures even light distribution. The integrated emergency battery delivers 90 minutes of backup, making it suitable for code-compliant installations.
Best for
- Small to medium offices with 2x2 drop ceilings
- Classrooms and training rooms needing adjustable light levels
- Healthcare facilities requiring damp-rated fixtures with emergency backup
- Retail boutiques and showrooms
- Any 120-347V application where emergency backup is required
Not ideal for
- Large open areas - multiple units may be needed for adequate coverage
- Residential living rooms - the utility style is more commercial
- Outdoor or wet locations - damp rated only
How bright is it?
Selectable from 2500 to 5000 lumens - comparable to two to four 60W incandescent bulbs. At 5000 lumens, it can light a small room; at 2500 lumens, it's suitable for accent or task lighting.
Light color and feel
Choose 3500K (neutral white), 4000K (cool white), or 5000K (daylight). 4000K is a popular choice for offices, balancing alertness and comfort. CRI 80+ for decent color rendering. Dimmable to 10% via 0-10V dimmer.
Sizing and fit
Measures 23.74 x 23.74 x 2.68 inches - a standard 2x2 ft drop ceiling tile replacement. Fits T-grid ceilings with 15/16-inch or 9/16-inch grid. Low profile works in shallow plenums.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 3500K/4000K/5000K
- Bulb Wattage: 20W/30W/40W
- Bulb Average Hours: 50000
- Bulb Lumens: 2500L/3750L/5000L
- Lamp Shape: Integrated LED
- Bulb CRI: 80+
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Operating Temperature: +1.4F to +113F (-17C to +45C)
- Color Temperature: Neutral White to Natural Light
- Field Selectable - 3 CCT and 3 Wattage
- 2X2 Panel
- Emergency Battery Backup Model
- 120-347 Voltage
- Steel Body with Die-cast Aluminum Trim for Seamless Corners
- TAA Compliant
- Damp Location Rated
- 5 Year Warranty
- 50,000 Hour Functional Life
- Dimmable: True
- Assembly Required: True
- Safety Rating: CULUS - Certified Listed
- For Use in Damp Locations
- Warranty Info: 5-Years
- Overall Dimensions: 23.74"(D) x 23.74"(W) x 2.68"(H)
- Item Weight: 6.5 lbs.
Frequently asked
Is the bulb included? Yes, integrated LED.
Is it dimmable, and what dimmer should I use? Yes, dimmable to 10% using a 0-10V dimmer.
Can I install this in a bathroom or outdoors? Damp location rated - suitable for bathrooms or covered patios, but not wet areas.
What's the warranty? 5-year warranty.

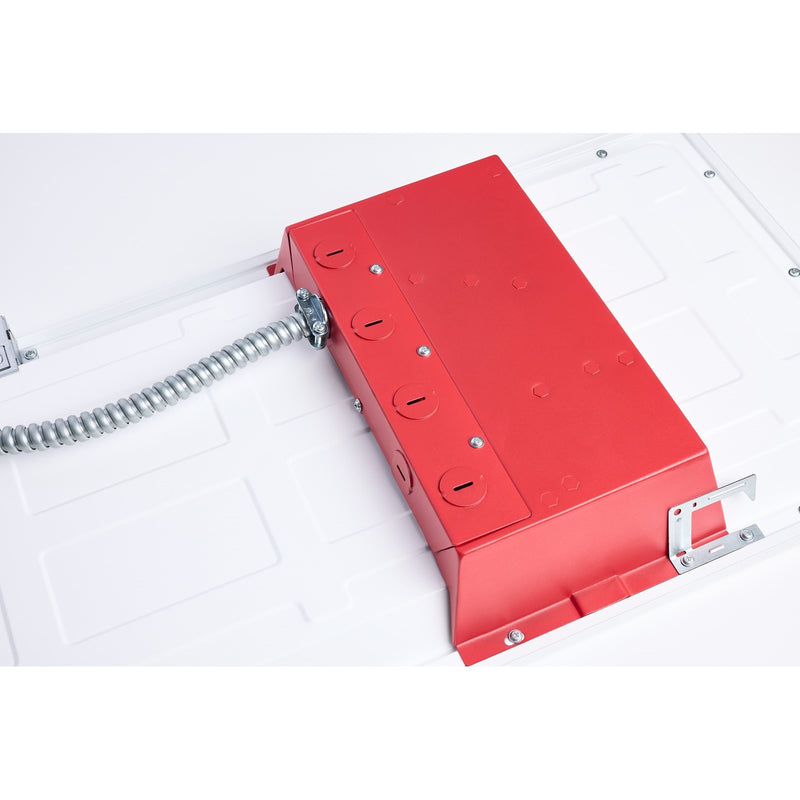

How does the emergency battery work? Provides 90 minutes of emergency light during power outages, with a red indicator light.
