Nuvo LED 1ftx4ft Backlit Panel, Emergency Battery 120-347V, White
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description
A 1x4-foot backlit LED panel with integrated emergency battery, ideal for commercial offices, schools, and damp-location ceilings requiring reliable backup illumination.

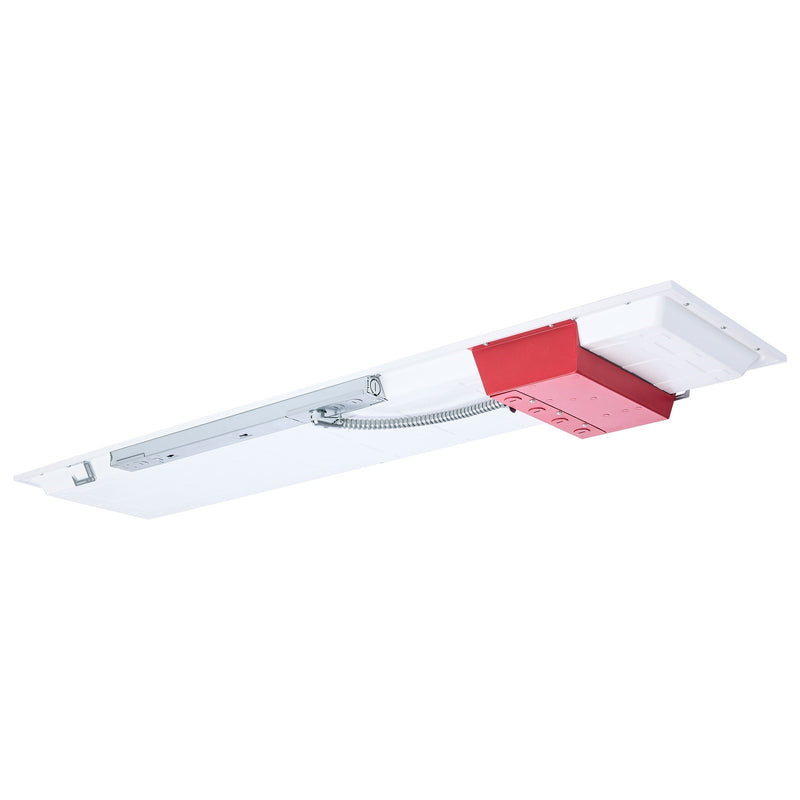

The Nuvo 65-1677 Backlit Panel delivers dependable, energy-efficient lighting with field-selectable wattage (20W/30W/40W) and CCT (3500K/4000K/5000K). Its steel body and die-cast aluminum trim with seamless corners provide a clean, professional look, while the polystyrene lens ensures even light distribution. The integrated emergency battery offers 90 minutes of runtime, making it a safe choice for code-compliant installations.
Best for
- Commercial offices and conference rooms requiring uniform, glare-free overhead lighting
- Schools, hospitals, and retail spaces where emergency backup is needed
- Damp locations such as covered entryways, basements, or laundry rooms
- Spaces with 120-347V electrical systems, offering universal voltage compatibility
- Energy-conscious projects needing selectable wattage and CCT for tuning
Not ideal for
- Residential living rooms or bedrooms where a decorative fixture is preferred
- Outdoor areas exposed to direct rain or hose-down (IP20 rated, damp location only)
- Spaces requiring a round or square panel rather than a 1x4 rectangular form factor
How bright is it?
Selectable lumen output: 2,500 lumens (20W), 3,750 lumens (30W), or 5,000 lumens (40W). At the highest setting, it's comparable to a 300W incandescent bulb, suitable for general ambient lighting in medium to large rooms. The lower settings work well for accent or task lighting.
Light color and feel
Choose from 3500K (neutral white, crisp and clean), 4000K (cool white, bright and alert), or 5000K (daylight, simulating natural light). CRI 80+ ensures decent color rendering for most commercial tasks. The fixture is 0-10V dimmable down to 10%, allowing fine control of brightness.
Sizing and fit
Dimensions: 47.76 x 11.93 x 2.6 inches. Designed for standard 1x4 grid ceilings or surface mounting. The low profile (2.6 inches) suits ceilings with limited plenum space. Weight: 6.39 lbs.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 3500K/4000K/5000K
- Bulb Wattage: 20W/30W/40W
- Bulb Average Hours: 50000
- Bulb Lumens: 2500L/3750L/5000L
- Lamp Shape: Integrated LED
- Bulb CRI: 80+
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Operating Temperature: +1.4F to +113F (-17C to +45C)
- Color Temperature: Neutral White to Natural Light
- Field Selectable - 3 CCT and 3 Wattage
- 1X4 Panel
- Emergency Battery Backup Model
- 120-347 Voltage
- Steel Body with Die-cast Aluminum Trim for Seamless Corners
- TAA Compliant
- Damp Location Rated
- 5 Year Warranty
- 50,000 Hour Functional Life
- Dimmable: True
- Assembly Required: True
- Safety Rating: CULUS - Certified Listed
- For Use in Damp Locations
- Warranty Info: 5-Years
Frequently asked
Is the bulb included? Yes, the LED is integrated and not replaceable.
Is it dimmable, and what dimmer should I use? Yes, it is 0-10V dimmable down to 10%. Use a compatible 0-10V dimmer.
Can I install this in a bathroom or outdoors? It is rated for damp locations, so it can be used in bathrooms (not directly in shower spray) or covered outdoor areas. Not for wet locations.
What's the warranty? 5-year warranty.

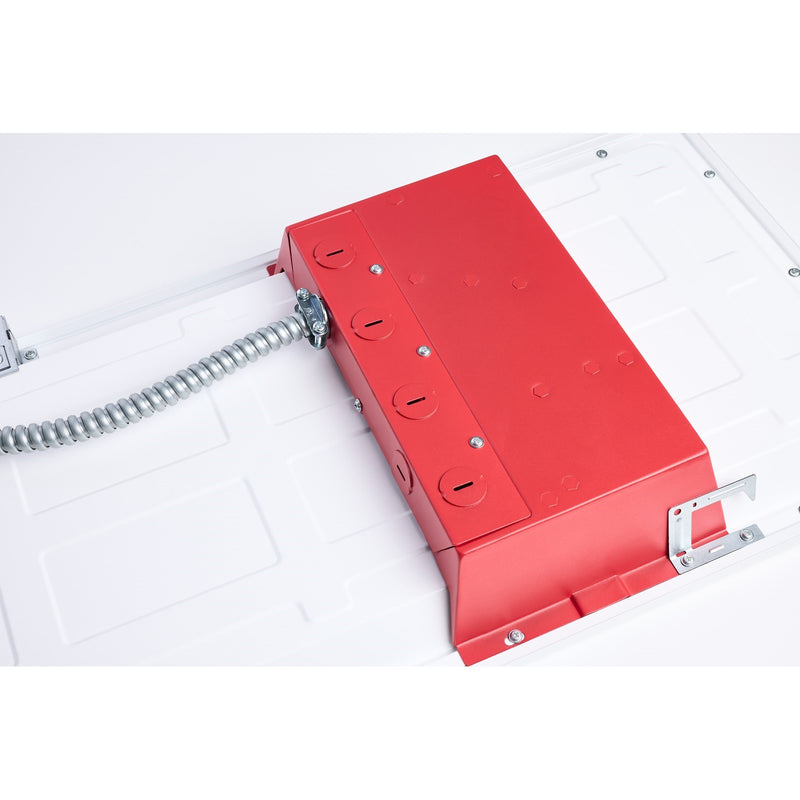

How does the emergency battery work? The integrated battery provides 90 minutes of emergency light during power outages. A red indicator light shows charging status.
