Nuvo 160/135/120W LED High Bay 3K/4K/5K CCT IP69K 120-347V White
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description

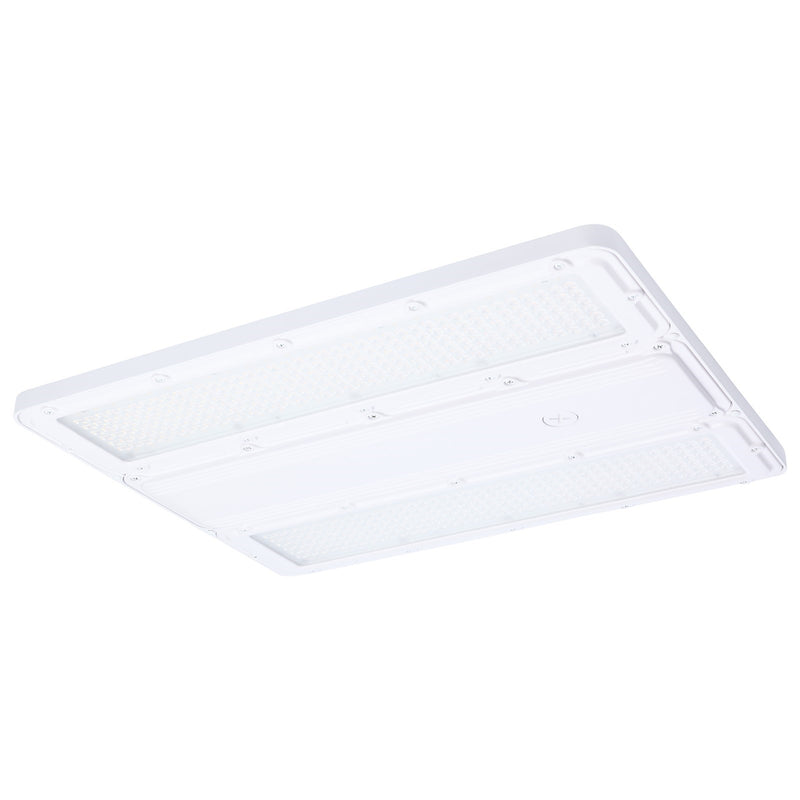

A higher-lumen IP69K-rated LED linear high bay for demanding washdown environments, with selectable wattage and color temperature in a white polycarbonate housing.
The SATCO NUVO 65-1171 delivers increased output for harsh industrial settings. Field-selectable wattage (120W/135W/160W) and CCT (3000K/4000K/5000K) provide flexibility. With an IP69K rating, IK10 impact resistance, and NSF approval, it withstands high-pressure, high-temperature washdowns. Includes 6kV surge protection, 0-10V dimming, and an integrated sensor port.
Best for
- Food processing and packaging facilities requiring frequent washdowns

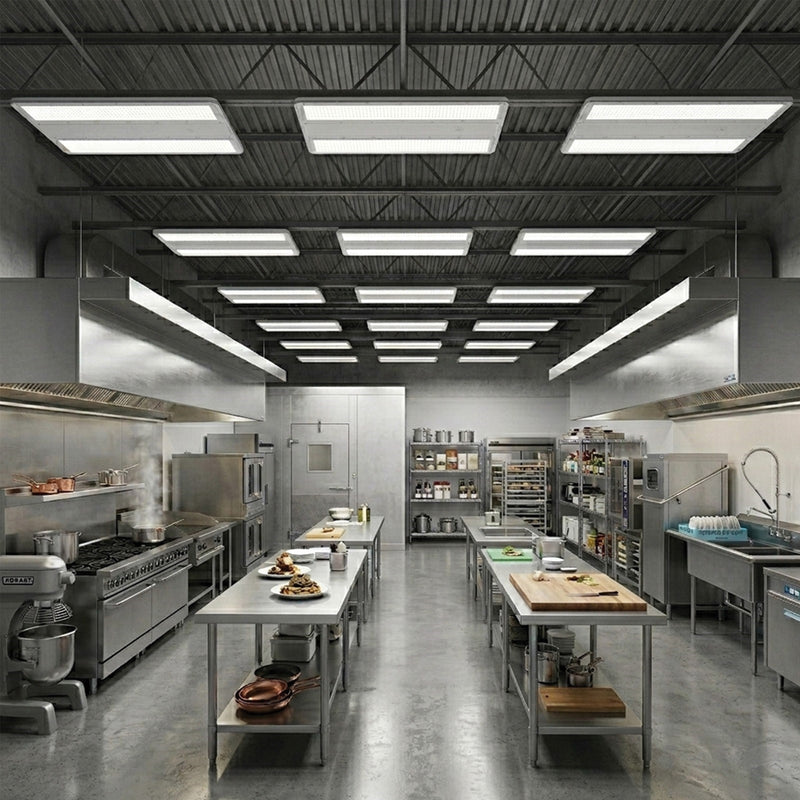

- Commercial kitchens and breweries with high ceilings
- Pharmaceutical and cleanroom environments needing higher light levels
- Industrial spaces with high humidity or dust
Not ideal for
- Residential or low-ceiling spaces – designed for industrial use
- Areas needing very low lumen output (under 15,000 lumens)
How bright is it?
19,900 to 26,000 lumens depending on wattage – comparable to a 120-160W metal halide. Suitable for primary ambient lighting in large industrial spaces.
Light color and feel
Selectable 3000K (soft white), 4000K (neutral white), or 5000K (natural light). 3000K for warm ambiance; 4000K for clean, neutral light; 5000K for precision tasks. CRI 80. Fully dimmable via 0-10V.
Sizing and fit

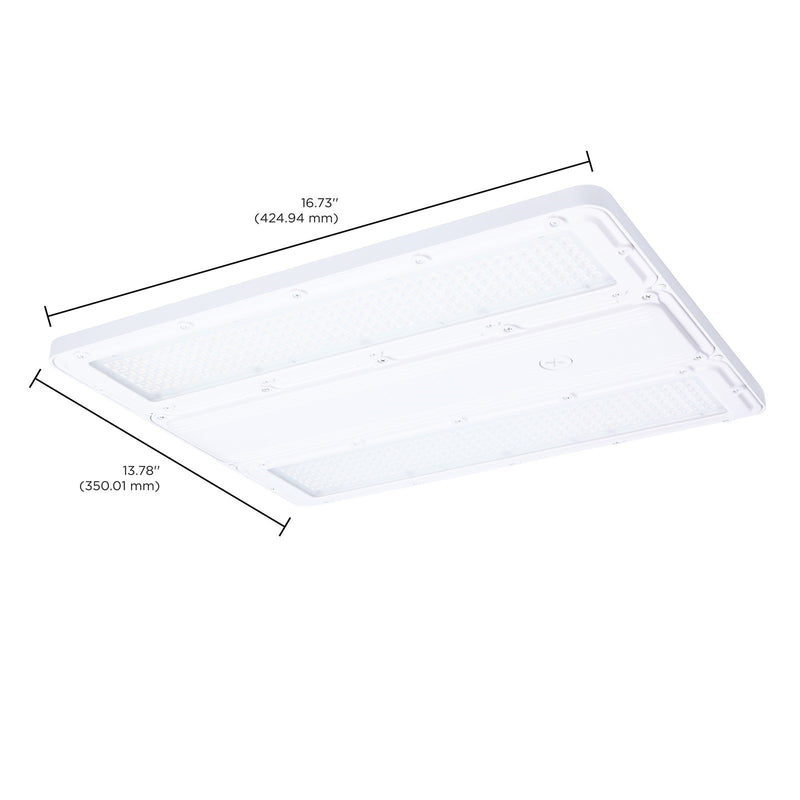

Overall dimensions: 16.77 in length x 13.78 in width x 2.44 in height. Includes suspension chains and hooks. Suitable for ceilings 10-25 ft high.
Specifications
- Finish: White
- Style: Utility
- Bulb Color Temp: 3000K/4000K/5000K
- Bulb Wattage: 160W/135W/120W
- Bulb Average Hours: 50000
- Bulb Lumens: 26000L-19900L
- Lamp Shape: Integrated LED
- Bulb CRI: 80
- Voltage: 120V-347V
- Bulb Included: Integrated
- Lamp Base: Integrated
- Operating Temperature: -40F to +131F (-40C to +55C)
- Color Temperature: Soft White to Natural Light
- IP69K and IK10 Rated & NSF Approved
- Designed for thermal washdown environments
- Range Voltage 120-347V
- Integrated Sensor Port with Waterproof Plug
- 6kV Surge Protection
- 3 Wattage and 3 CCT Selectable
- 0-10V Dimmable
- 50,000 Life Hours
- 5 Year Warranty
- Dimmable: True
- Driver Included: True
- Assembly Required: True
- Safety Rating: CULUS - Certified Listed
- For Use in Wet Locations
- Warranty Info: 5-Years
Frequently asked
Is the bulb included? Yes, integrated LED.
Is it dimmable, and what dimmer should I use? Yes, 0-10V dimming compatible with standard 0-10V dimmers.
Can I install this in a bathroom or outdoors? Rated for wet locations, suitable for outdoor covered areas and washdown environments.
What's the warranty? 5-year warranty.
How does this model differ from the 65-1170? This model offers higher wattage (160W vs 105W) and higher lumen output (26,000 vs 15,900 lumens) for larger spaces.
