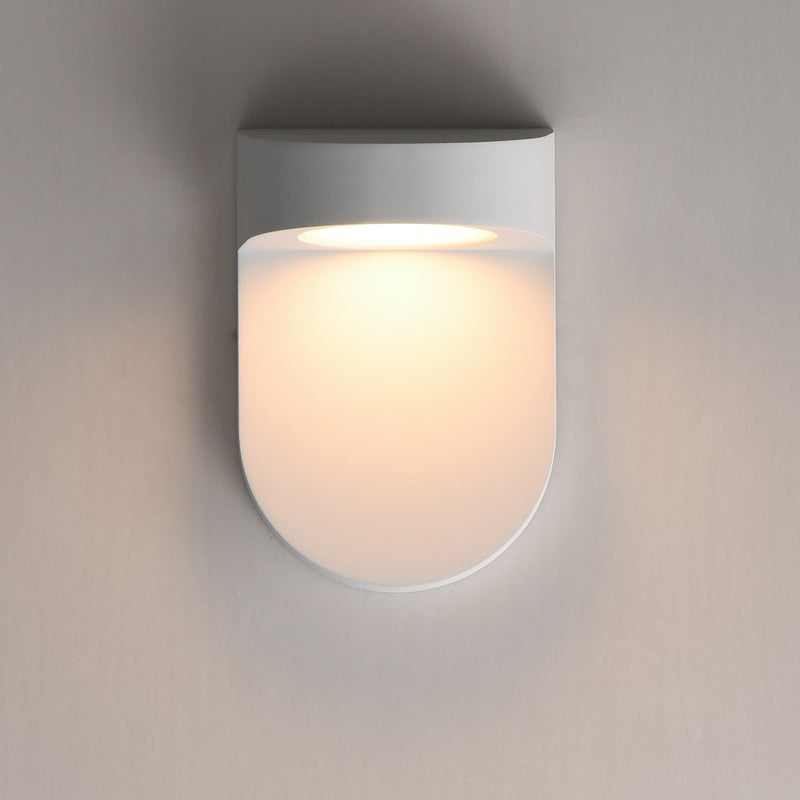

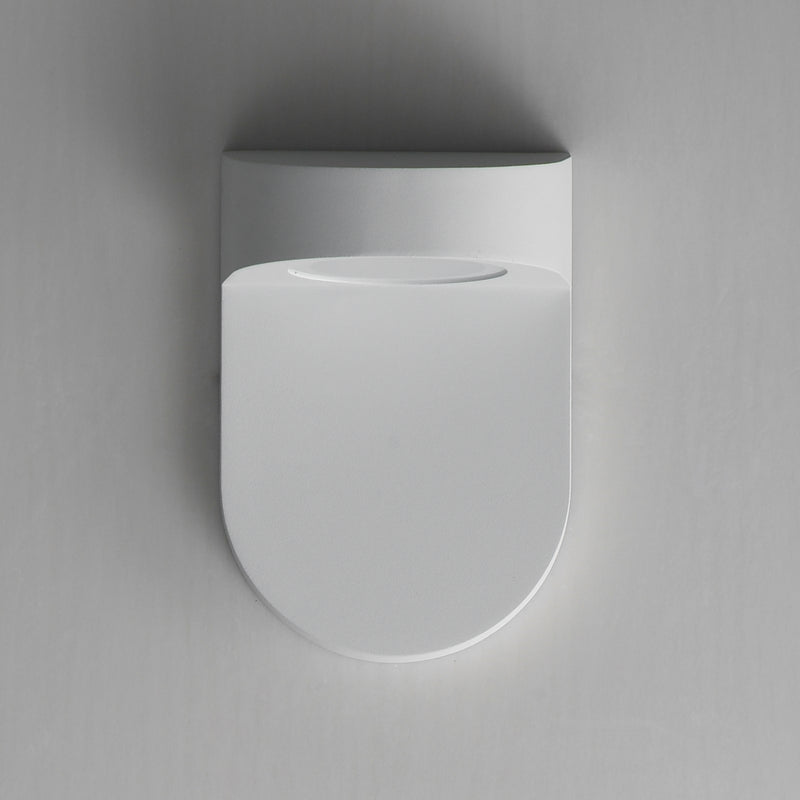

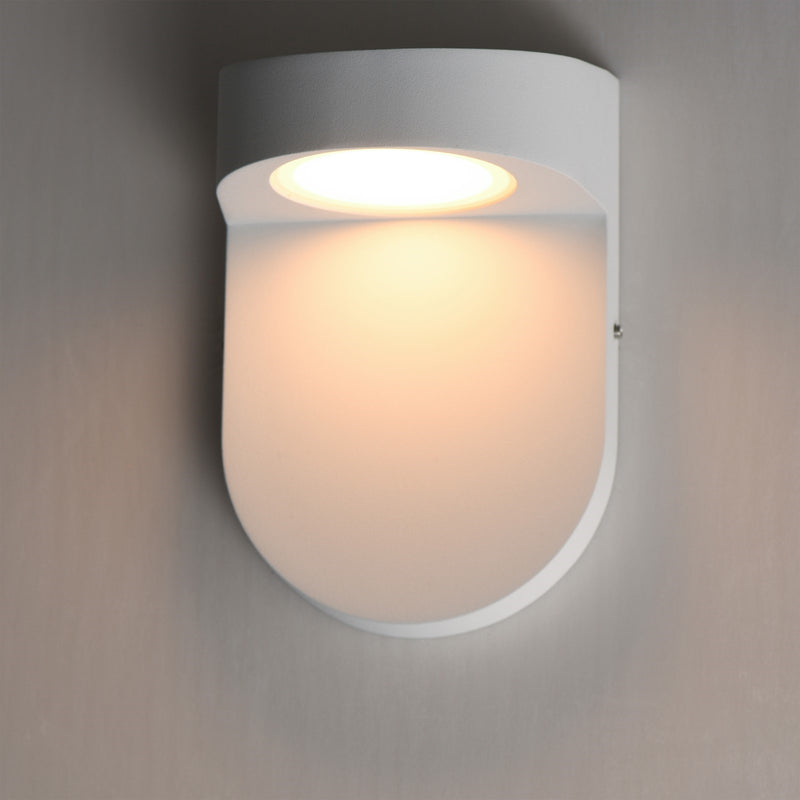

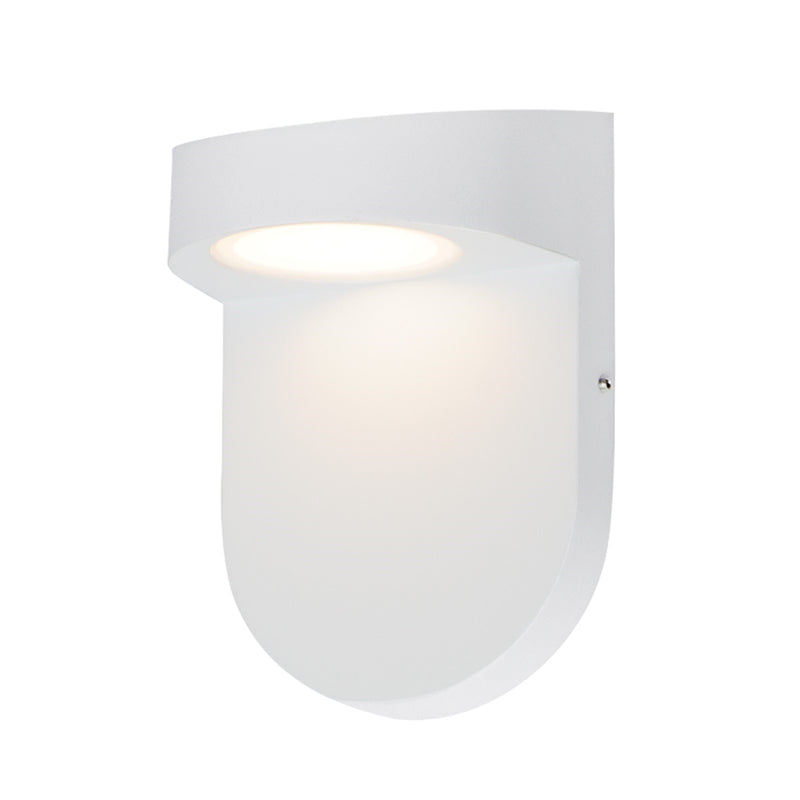

Maxim Lighting Ledge 7in 1-Light Outdoor ADA Wall Sconce | Modern White Aluminum and Glass | Entryway & Patio | 4.75 x 7 in | Model 86196WT

A compact 7-inch ADA-compliant outdoor wall sconce in white aluminum with a concealed LED that throws light downward - built for entryways, patios, and dark-sky applications.

The Ledge sconce keeps a low profile while doing real work. Its architectural frame extends at the top so the integrated LED washes light straight down where you need it - along a walkway, across a step, or beside a door. Because the light source is hidden inside the top of the frame, it qualifies for Dark Sky use and won't glare into the night. White aluminum with a glass lens, rated for wet locations.

Best for

• Front entryways and porch walls beside a door
• Covered patios, walkways, and stairwells that need downward light
• Dark Sky applications where glare control matters
• Narrow wall spaces - the 4-inch extension keeps it out of the way

Not ideal for

• Anyone wanting a large statement sconce - this is a compact 4.75 x 7 in fixture
• Spaces that need broad, even illumination - the light is directed downward only
• Indoor dry-location installs where a wet-rated fixture is overkill

How bright is it?

500 lumens - roughly the output of a 40W incandescent bulb. That is accent and pathway light, not a primary light source. It is designed to mark a door or light a step, not flood a patio.

Light color and feel

3000K warm white - a soft, slightly golden tone that reads welcoming rather than clinical. CRI 90 renders colors accurately, so brick, stone, and wood finishes look true. Dimmable with a Triac or ELV dimmer at 120V. Rated for 50,000 hours.

Sizing and fit

4.75 in W x 7 in H with a 4 in extension from the wall and a 3.25 in height from center of outlet. Backplate is 7 in H x 4.75 in W. ADA compliant, so it stays within the 4-inch projection limit for accessible routes. Weighs 1.4 lbs.

Specifications

• Part of the Ledge Collection
• Category: Outdoor Wall Mount
• Finish: White
• Material: Aluminum, Glass
• Lighting Direction: Down
• Install Direction: Down
• Safety Rating: Wet
• Certification: CETLUS
• ADA Compliant: True
• Number of Bulbs: 1
• Light Type: LED
• Bulb Type: DC Integrated
• Max Wattage: 8 W
• Bulb Included: Bulbs Included
• CRI: 90
• Lumens: 500
• Input Voltage: 120-277 V
• Color Temperature: 3000 K
• Dimmable: Triac or ELV at 120V
• Rated Life: 50,000 hrs
• Wire Length: 8 in
• Overall Dimensions: 4.75 in W x 7 in H
• Extension: 4 in
• HCO: 3.25 in
• Backplate: 7 in H x 4.75 in W
• Item Weight: 1.4 lbs

Frequently asked

Is the bulb included? Yes - the integrated LED is built in and included.

Is it dimmable, and what dimmer should I use? Yes, dimmable with a Triac or ELV dimmer at 120V.

Can I install this in a bathroom or outdoors? It is rated for wet locations, so it is suitable for outdoor use including exposed walls and covered patios.

What's the warranty? Warranty information is not specified in the source data; contact Maxim Lighting for details.

Is this Dark Sky compliant? The LED is concealed within the top of the frame and light is directed downward, making it a good choice for Dark Sky applications.
