Fanimation Wrap Custom 56in 3-Blade Smart Ceiling Fan with LED Light Kit | Brushed Satin Brass and Matte White Composite | Model FPD8530BS-56MW-LK

A 56-inch damp-rated smart ceiling fan with an integrated LED light kit for covered patios, porches, and large bedrooms, finished in brushed satin brass with matte white composite blades.

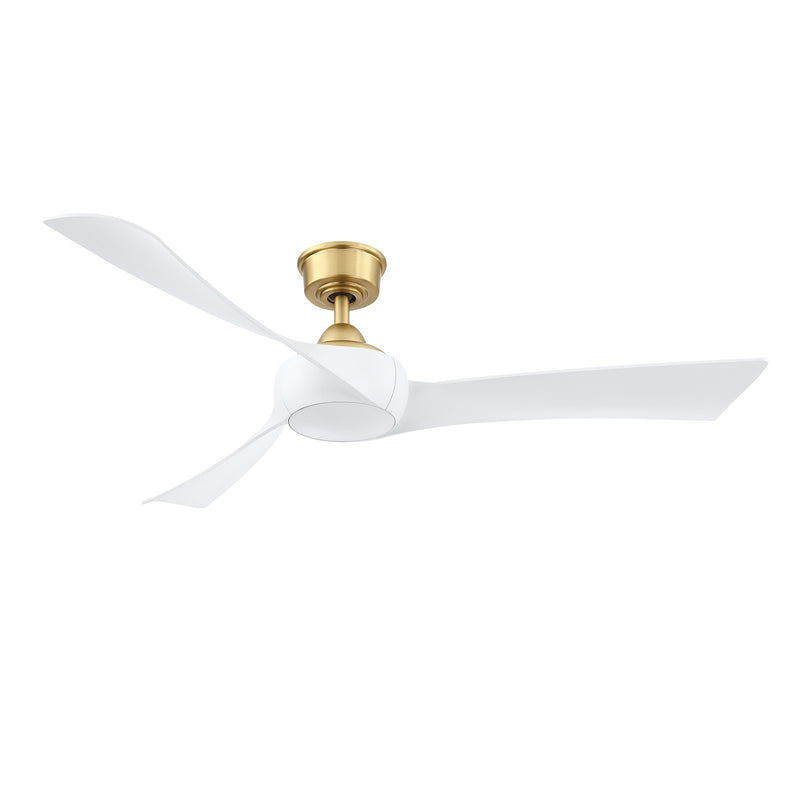

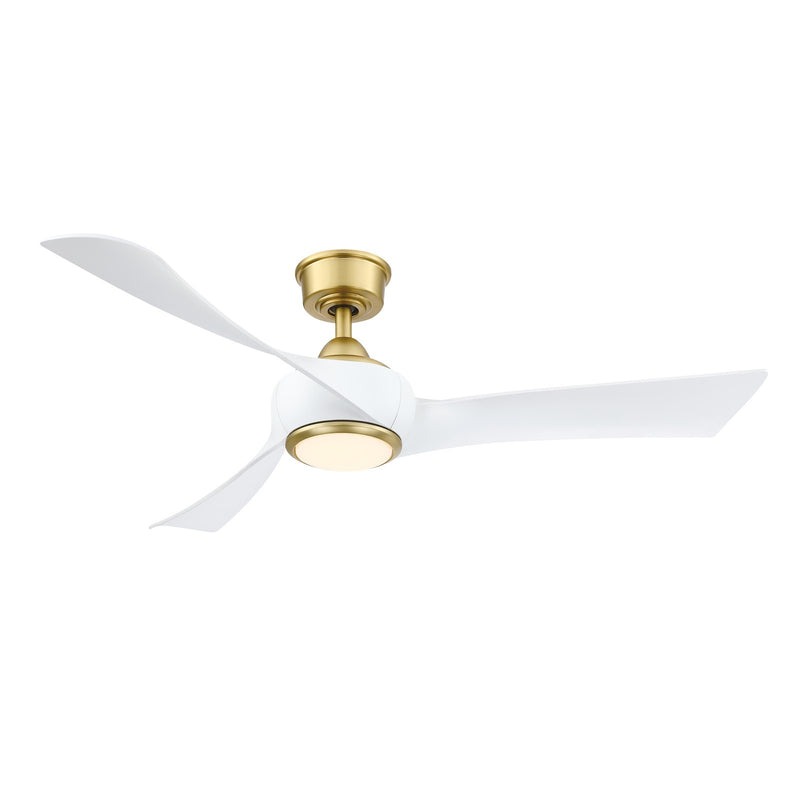

The Wrap Custom from Fanimation makes a striking visual statement with its smoothly curved and twisted blades, a sculptural look that stands out even when the fan is off. The brushed satin brass motor housing pairs with three matte white composite blades for a clean, airy, contemporary profile. Powered by a quiet, energy-efficient DC motor, it delivers powerful airflow while keeping energy use low. This version includes an integrated 18-watt dimmable LED light kit with CCT Select technology, letting you choose from warm white, bright white, or daylight.

Best for

• Covered patios and porches, where the damp-rated motor and moisture-resistant blades handle humidity without direct rain exposure
• Large primary bedrooms and living rooms up to 20x20 ft, providing strong airflow at 6,814 CFM on high
• Sunrooms and three-season rooms that need both airflow and adjustable lighting from a single fixture
• Smart-home setups, controlled via the FanSync app, voice assistants, or the included TR305 handheld remote
• Sloped ceilings up to 27 degrees, using the included 4.5-inch downrod or optional longer downrods

Not ideal for

• Areas directly exposed to rain or water spray - this fan is damp-rated, not wet-rated
• Rooms where you prefer a fan without a light kit, since the integrated light is always present
• Small spaces under 8x8 ft, where the 56-inch blade sweep may feel oversized

How bright is it?

The integrated 18-watt LED module produces 1,600 lumens - roughly equivalent to a 100W incandescent bulb - enough to illuminate a medium to large room as the primary light source. It is dimmable for lower light levels.

Light color and feel

With CCT Select technology, you can choose from 3000K warm white, 4000K bright white, or 5000K daylight. With a CRI of 90, colors render accurately, making it suitable for art or task areas. The light is dimmable via the remote or app.

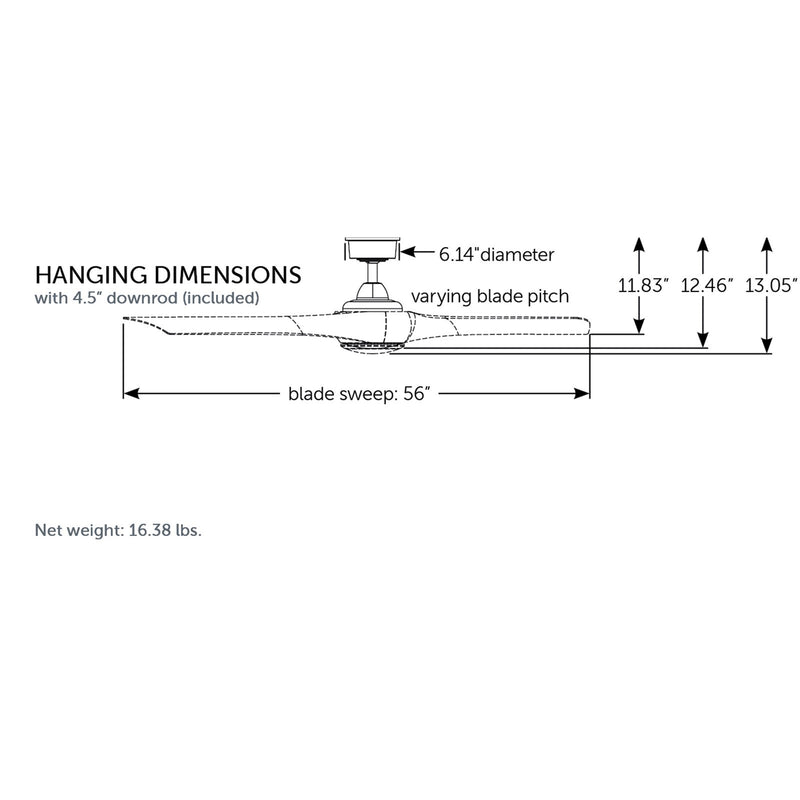

Sizing and fit

With a 56-inch blade sweep and an overall height of 13.05 inches (from ceiling to bottom with the light kit), this fan suits rooms at least 12x12 ft. The included 4.5-inch downrod works for standard 8-9 ft ceilings; optional downrods up to 72 inches allow for higher or sloped ceilings. The canopy is 6.14 inches in diameter, and the lead wire is 80 inches long.

Specifications

• Primary Finish: Brushed Satin Brass
• Blade Material: Composite
• Blade Finish: Matte White
• Shade Finish: Opal Frosted
• Collection: Wrap Custom
• Blade Sweep: 56"
• Number of Blades: 3
• Blade Pitch: Varied°
• Motor Type: DC
• Motor Size: 158 X 22
• Motor Reversible: True
• Number of Speeds: 16
• Reverse Switch Location: Control
• Light Kit Included: True
• Cap Included: True
• Included Control: TR305
• Control Type: Handheld
• 1 Bulb(s)
• Bulb Type: 18W LED Module
• Bulb Base: Connector Pin
• Bulb Max Wattage: 18W
• Color Temperature: 3000/4000/5000K
• CRI: 90
• Lumens: 1600
• Voltage: 120V
• Avg CFM: 5011
• CFM High: 6814
• Avg Energy Use: 23W
• Max Slope: 27°
• Location Rating: Damp
• Safety Rating: UL/cUL Listed
• Energy Star: True
• Warranty: Limited Lifetime Warranty

Frequently asked

Is the bulb included? Yes, the integrated 18W LED module is included and cannot be replaced separately.

Is it dimmable, and what dimmer should I use? The fan speed is variable with 16 speeds via the remote or app. The LED light is dimmable and controlled through the same remote or app.

Can I install this in a bathroom or outdoors? Yes, it is damp-rated, making it suitable for covered outdoor areas, bathrooms, and laundry rooms. It should not be directly exposed to rain or water.

What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. For assistance, contact Fanimation Tech Support at 1-888-567-2055.

How do I control the light color temperature? Use the included TR305 remote or the FanSync app to cycle through 3000K, 4000K, and 5000K settings.
