Fanimation Wrap Custom 56in 3-Blade Ceiling Fan with LED Light | Brushed Nickel and Dark Walnut Composite | Covered Patio | Model FPD8530BN-56DWA-LK
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description

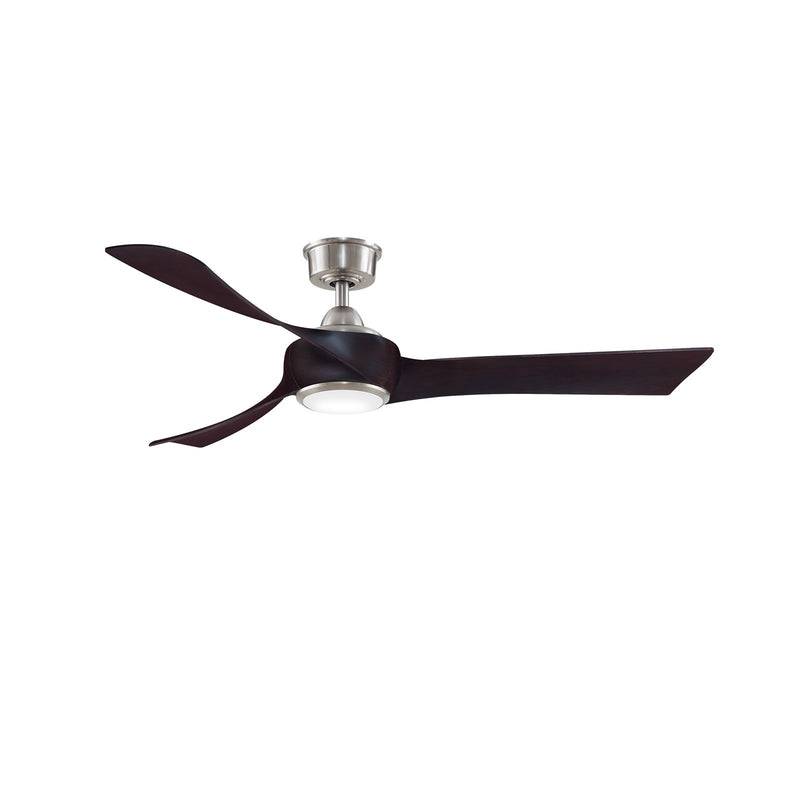

A 56-inch damp-rated smart ceiling fan with integrated LED light kit from Fanimation's Wrap Custom collection, finished in brushed nickel with dark walnut composite blades, ideal for covered outdoor and indoor spaces.
The Wrap Custom's smoothly curved and twisted blades create a striking, sculptural silhouette that stands out in any room. Powered by a quiet, energy-efficient DC motor, it delivers powerful airflow while keeping energy use low. This version includes an integrated 18-watt dimmable LED light kit with CCT Select technology, letting you choose from warm white, bright white, or daylight. Control it with the included handheld remote or your smart device via the FanSync app.
Best for
- Covered patios, porches, and sunrooms where damp-rated durability is essential
- Bedrooms and living rooms with 8-9 ft ceilings, using the included 4.5-inch downrod
- Large rooms up to 400 sq ft, with airflow up to 6,814 CFM
- Spaces with sloped ceilings up to 27 degrees
- Smart home setups with voice control via FanSync app
Not ideal for
- Areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 7 ft, unless using a flush mount (not included)
- Those seeking a fan without a light kit - this model includes one
How bright is it?
The integrated LED light kit provides 1600 lumens, roughly equivalent to a 100-watt incandescent bulb, making it suitable for ambient lighting in medium to large rooms. It is dimmable for adjustable brightness.
Light color and feel
With CCT Select technology, you can choose from 3000K warm white (soft, golden tone), 4000K bright white (neutral, crisp), or 5000K daylight (cool, energizing). The high CRI of 90 ensures accurate color rendering, ideal for living spaces and kitchens.
Sizing and fit

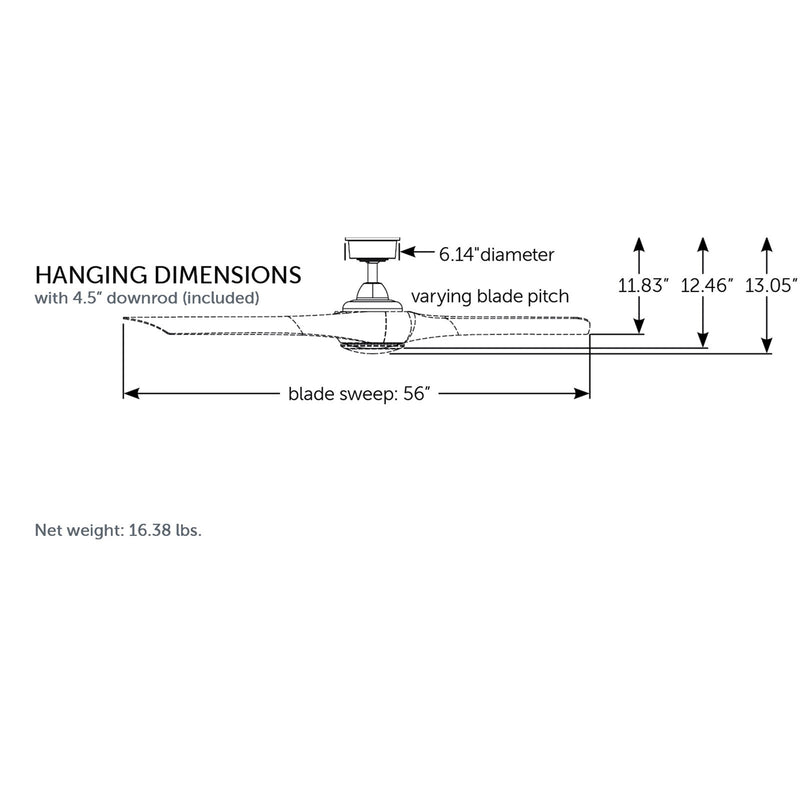

The fan measures 56 inches in blade sweep and 13.05 inches from ceiling to bottom (with light kit). It includes a 4.5-inch downrod, with optional downrods up to 72 inches available for higher ceilings. The canopy is 6.14 inches in diameter, and the housing is 8.88 inches.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Composite
- Blade Finish: Dark Walnut
- Shade Finish: Opal Frosted
- Collection: Wrap Custom
- Blade Sweep: 56"
- Number of Blades: 3
- Blade Pitch: Varied°
- Motor Type: DC
- Motor Size: 158 X 22
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: 18W LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000/4000/5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 5011
- CFM High: 6814
- Avg Energy Use: 23W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated 18W LED module is included and not replaceable.
Is it dimmable, and what dimmer should I use? The light is dimmable via the remote or app. No separate dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for covered outdoor areas, bathrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055.
How does the smart control work? The fan connects to Wi-Fi via the FanSync app, allowing control with smart devices or voice assistants. The included TR305 remote also provides full control.
