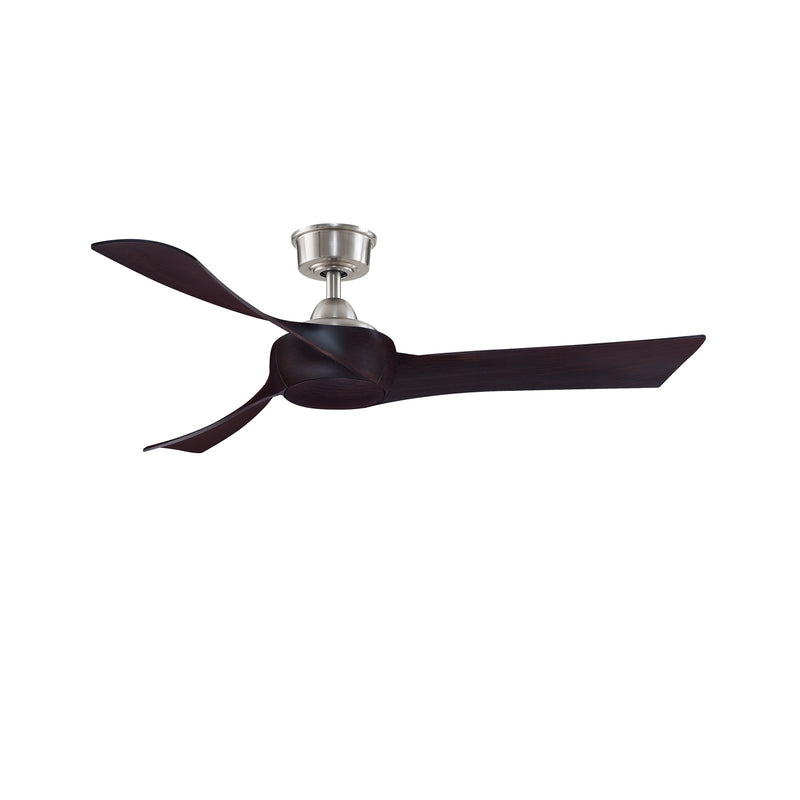

Fanimation Wrap Custom 52in 3-Blade DC Ceiling Fan | Modern Brushed Nickel and Dark Walnut Composite | Covered Patio | Model FPD8530BN-52DWA

A 52-inch damp-rated smart ceiling fan for covered patios, porches, and large bedrooms, finished in brushed nickel with dark walnut composite blades.

The Wrap Custom Ceiling Fan showcases a unique, elegant design with smoothly curved and twisted blades that create a striking visual statement. Damp-rated and Energy Star certified, this fan is powered by a high-efficiency DC motor, ensuring powerful air circulation in both indoor and covered outdoor spaces. This version does not include a light kit, offering a clean, minimalist profile ideal for areas where overhead lighting is not needed.

Best for

• Covered patios and porches, where the damp-rated motor and moisture-resistant blades handle humidity without direct rain exposure
• Large bedrooms and living rooms up to 20x20 ft, providing high airflow up to 6,279 CFM
• Sunrooms and laundry rooms, where humidity is common but direct water contact is not
• Smart home setups, controlled via the fanSync app or voice assistants
• Energy-conscious households, with an Energy Star certified DC motor averaging just 21W

Not ideal for

• Areas directly exposed to rain or water, as the damp rating does not cover wet locations
• Rooms with ceilings steeper than 27 degrees without an optional adapter
• Spaces needing a light fixture, since this version has no light kit (sold separately)

How bright is it?

This fan does not include a light kit, so there is no brightness to measure. It is designed for spaces where overhead lighting is already present or where a minimalist look is preferred.

Light color and feel

Not applicable - this fan has no light. If you add the optional 18-watt LED light kit, it offers CCT Select technology with 3000K, 4000K, or 5000K color temperatures, and a high CRI of 90 for accurate color rendering.

Sizing and fit

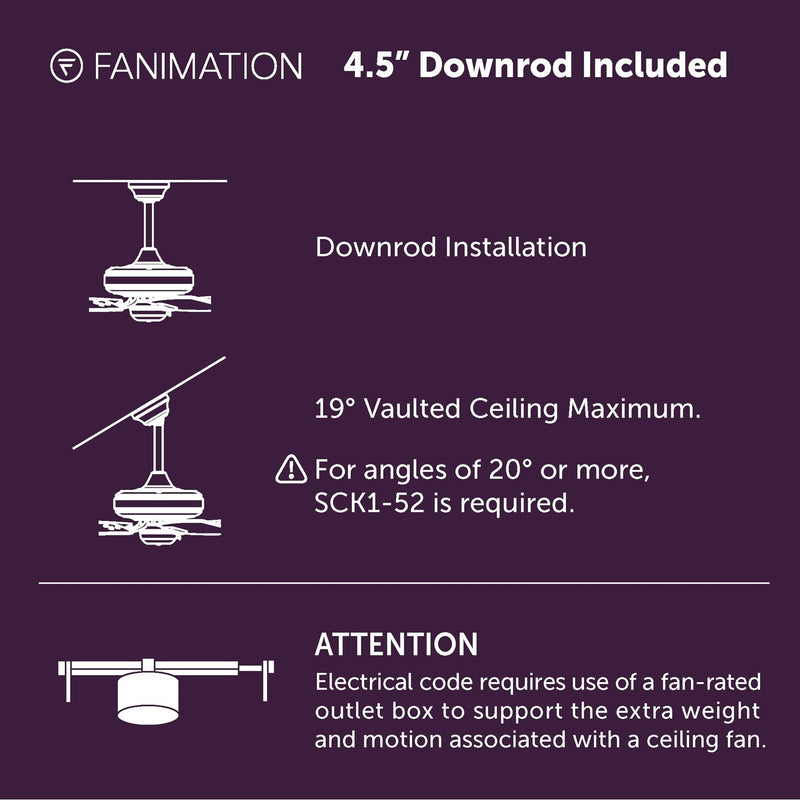

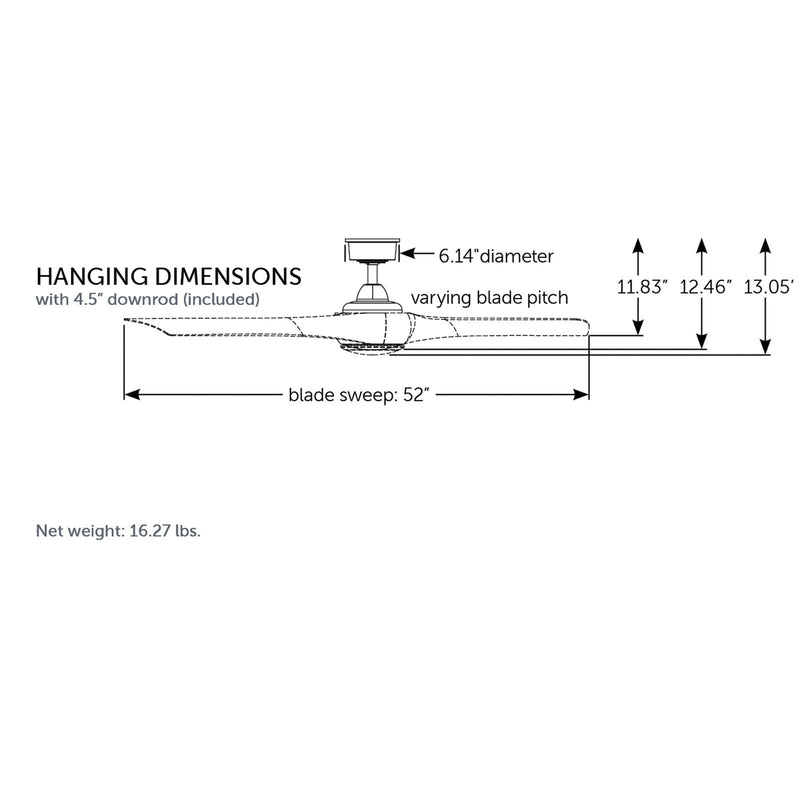

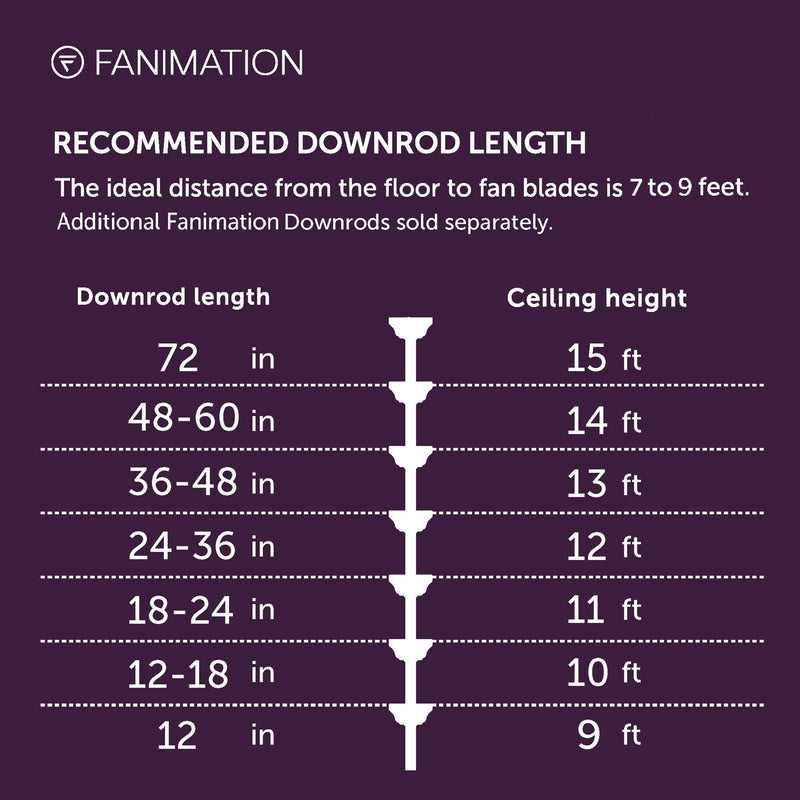

With a 52-inch blade sweep and a low 12.46-inch ceiling-to-bottom profile, this fan suits rooms at least 12x12 ft. It comes with a 4.5-inch downrod for flat or slightly sloped ceilings; optional downrods up to 72 inches are available for higher ceilings. The canopy is 6.14 inches in diameter.

Specifications

• Primary Finish: Brushed Nickel
• Blade Material: Composite
• Blade Finish: Dark Walnut
• Collection: Wrap Custom
• Blade Sweep: 52"
• Number of Blades: 3
• Blade Pitch: Varied°
• Motor Type: DC
• Motor Size: 158 X 22
• Motor Reversible: True
• Number of Speeds: 16
• Reverse Switch Location: Control
• Cap Included: True
• Included Control: TR305
• Control Type: Handheld
• Voltage: 120V
• Avg CFM: 4411
• CFM High: 6279
• Avg Energy Use: 21W
• Max Slope: 27°
• Location Rating: Damp
• Safety Rating: UL/cUL Listed
• Energy Star: True
• Warranty: Limited Lifetime Warranty
• Overall Dimensions: 52"(L)52"(W) x 12.46"(H)
• Housing Diameter: 8.88"
• Canopy Dimensions: 6.14"(Dia) x 2.55"(H)
• Downrod Length: 4.5"
• Leadwire Length: 80"
• Ceiling to Bottom (No Light Kit): 12.46"
• Item Weight: 16.27 lbs.

Frequently asked

Is the bulb included? This fan does not include a light kit or bulb. The optional 18W LED light kit is sold separately.

Is it dimmable, and what dimmer should I use? The fan speed is controlled via the included TR305 remote or the fanSync app. The optional light kit is dimmable and controlled through the same remote or app.

Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for covered outdoor areas, bathrooms, and laundry rooms. It should not be directly exposed to rain or water.

What's the warranty? Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.

How does the smart control work? The fan connects to Wi-Fi via the fanSync app, allowing control with a smart device or voice assistant. The included TR305 remote also provides full control of speeds, timer, and modes.
