Fanimation TriAire Custom 60in 1-Light Smart Ceiling Fan | Modern Brushed Satin Brass and Opal Frosted Glass | Covered | Model FPD8514BS-60MWW-12LK

A 60-inch smart ceiling fan with a 12-inch integrated LED light kit, designed for covered outdoor and indoor spaces, finished in brushed satin brass with matte white blades.

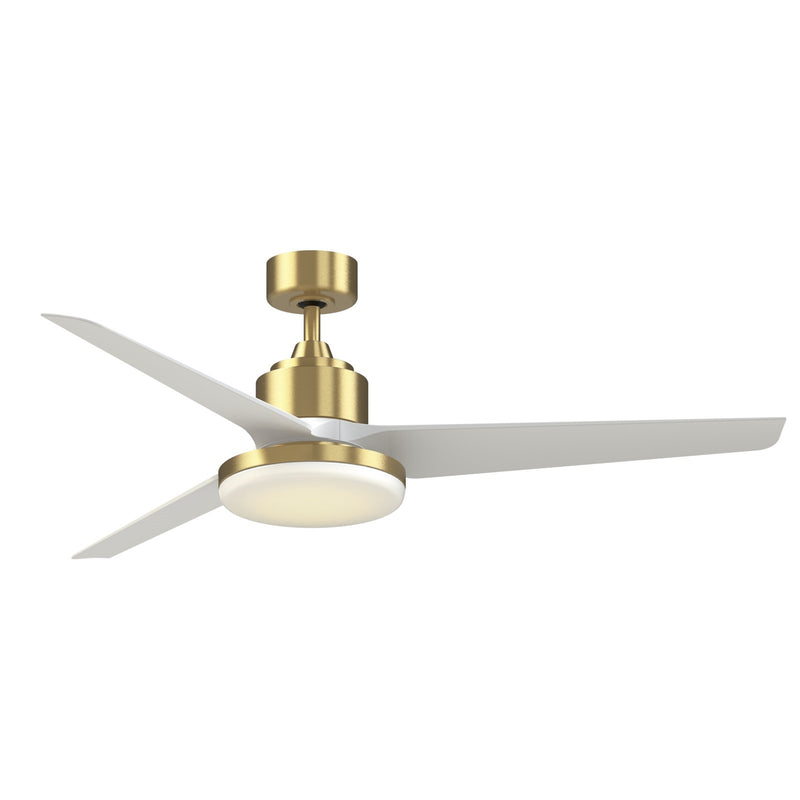

The TriAire Custom ceiling fan from Fanimation combines a sleek, modern aesthetic with powerful performance. Its three matte white composite blades and brushed satin brass motor housing create a clean, contemporary look. The integrated 12-inch opal frosted LED light kit provides bright, adjustable illumination with CCT Select technology. The quiet DC motor offers 16 speeds, and Wi-Fi connectivity allows control via the fanSync app or voice assistant.

Best for

• Covered patios and porches, where the damp-rated construction withstands humidity without direct rain exposure
• Sunrooms and three-season rooms needing both airflow and bright ambient light
• Large living rooms and great rooms up to 20x20 ft, with a 60-inch blade sweep for substantial air movement
• Bedrooms and home offices, using the quiet DC motor and adjustable light color for comfort
• Laundry rooms and bathrooms with high ceilings, where moisture resistance is a plus

Not ideal for

• Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
• Rooms with ceilings lower than 8 ft, unless you use a flush mount or shorter downrod (not included)
• Spaces needing a light output above 3600 lumens from the fan - consider supplemental lighting

How bright is it?

The integrated LED module produces 3600 lumens - roughly equivalent to a 250-watt incandescent bulb. This is suitable for ambient lighting in large rooms and can serve as a primary light source in many spaces.

Light color and feel

With CCT Select technology, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral white), 4000K (bright white), or 5000K (daylight) to match your mood and decor. The high CRI of 90 ensures colors appear vibrant and accurate. The light is dimmable, and the included remote lets you adjust brightness and color temperature.

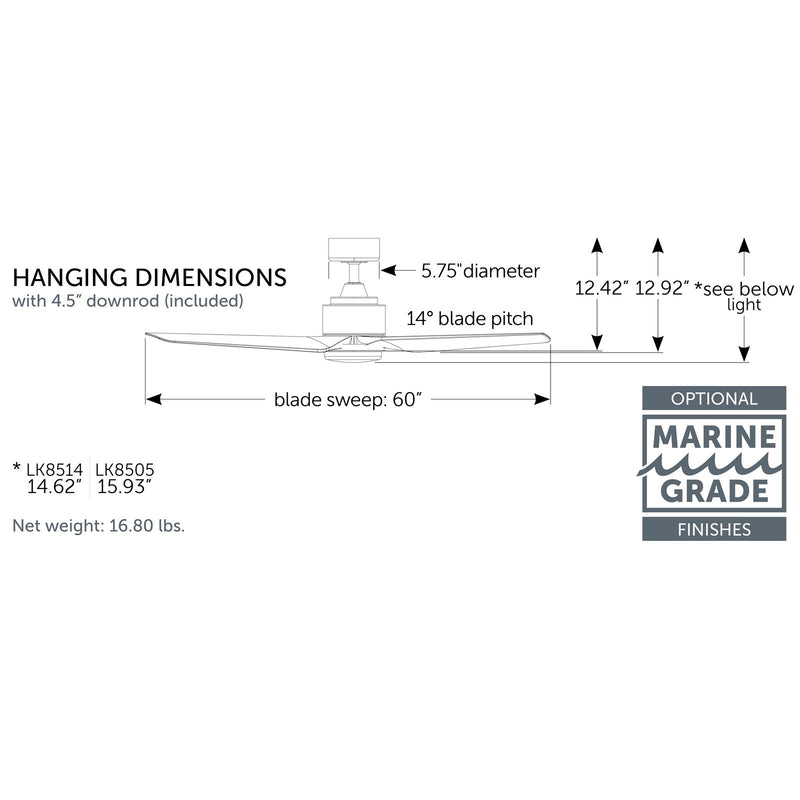

Sizing and fit

This fan has a 60-inch blade sweep and an overall height of 15.93 inches with the light kit. It comes with a 4.5-inch downrod, suitable for flat or sloped ceilings up to 27 degrees. Optional downrods up to 72 inches are available for higher ceilings. The canopy is 5.75 inches in diameter, and the housing is 7.09 inches.

Specifications

• Primary Finish: Brushed Satin Brass
• Blade Material: Composite
• Blade Finish: Matte White
• Shade Finish: Opal Frosted
• Collection: TriAire Custom
• Blade Sweep: 60"
• Number of Blades: 3
• Blade Pitch: 14°
• Motor Type: DC
• Motor Size: 158 X 22
• Motor Reversible: True
• Number of Speeds: 16
• Reverse Switch Location: Control
• Light Kit Included: True
• Included Control: TR305
• Control Type: Handheld
• 1 Bulb(s)
• Bulb Type: LED Module
• Bulb Base: Connector Pin
• Bulb Max Wattage: 40W
• Color Temperature: 2700, 3000, 3500, 4000, 5000K
• CRI: 90
• Lumens: 3600
• Voltage: 120V
• Avg CFM: 4860
• CFM High: 6765
• Avg Energy Use: 20W
• Max Slope: 27°
• Location Rating: Damp
• Safety Rating: UL Only Listed
• Energy Star: True
• Warranty: Limited Lifetime Warranty
• Overall Dimensions: 60"(L)60"(W) x 15.93"(H)
• Housing Diameter: 7.09"
• Canopy Dimensions: 5.75"(Dia) x 2.57"(H)
• Downrod Length: 4.5"
• Leadwire Length: 80"
• Ceiling to Bottom (No Light Kit): 12.92"
• Ceiling to Bottom (With Light Kit): 15.93"
• Item Weight: 21.41 lbs.

Frequently asked

Is the bulb included? Yes, the integrated LED module is included and cannot be replaced.

Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included remote or the fanSync app. No wall dimmer is needed.

Can I install this in a bathroom or outdoors? This fan is damp-rated, so it can be installed in bathrooms and covered outdoor areas, but not in direct rain.

What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.

How does the 12-inch light kit differ from the standard one? The 12-inch kit is larger and brighter (3600 lumens vs 1600 lumens) and offers more color temperature options (2700K-5000K vs 3000K-5000K).
