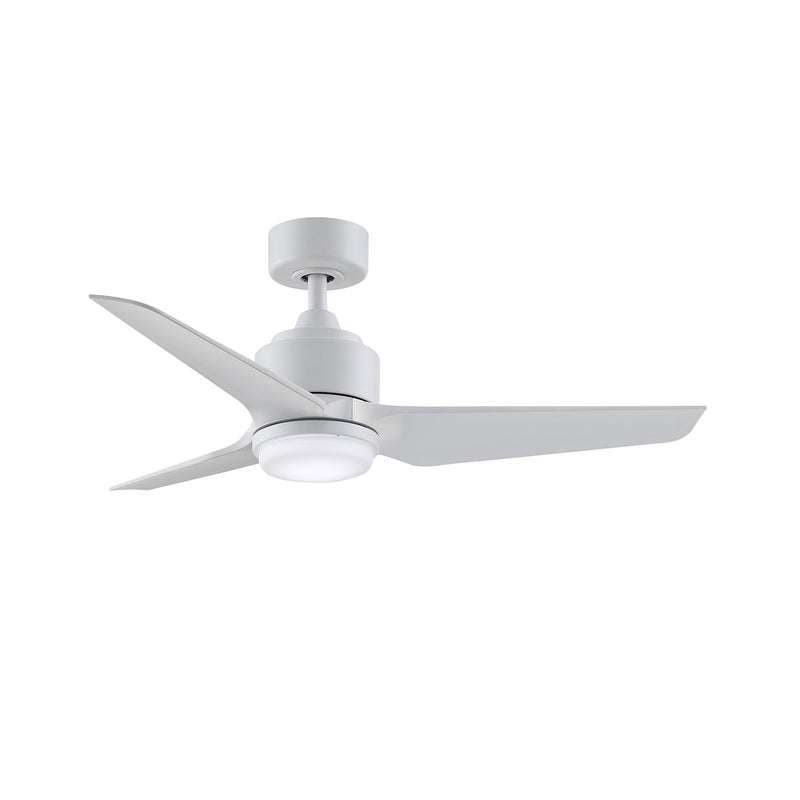

Fanimation TriAire Custom 56in Marine Grade Wet Rated Smart Ceiling Fan with LED Light Kit | Matte White Composite Blades | Model FPD8514MWM-56MWW-LK

A 56-inch marine-grade smart ceiling fan from Fanimation's TriAire Custom collection with an integrated LED light kit, built for wet-rated indoor and outdoor use in matte white.

The TriAire Custom by Fanimation is a versatile and durable ceiling fan built to deliver exceptional performance in both indoor and outdoor environments. Constructed with marine-grade materials and available in weather-resistant finishes like Black and Matte White, it’s engineered to withstand dry, damp, and wet conditions with ease. This version includes an 18W integrated LED light kit with CCT Select, offering 1,600 lumens of bright, energy-efficient illumination. With three selectable color temperatures—3000K, 4000K, and 5000K—and a high CRI of 90, the light delivers clear, natural lighting to fit any mood or task. Equipped with a TR305 handheld remote, the fan offers effortless speed and light control and supports both standard downrod and sloped ceiling installations for flexible placement. It’s also compatible with the Fanimation fanSync Wi-Fi app, allowing for seamless smart home integration via smartphone or voice assistant. With reversible airflow for year-round comfort and eight available blade sweep sizes to accommodate spaces large and small, the TriAire Custom offers a perfect balance of performance, durability, and modern design.

Best for

• Covered patios, pergolas, gazebos, and porches where direct exposure to rain and humidity is expected
• Large living rooms, great rooms, and bedrooms up to 20x20 ft needing high airflow and integrated lighting
• Indoor spaces with 8-9 ft ceilings using the included 4.5-inch downrod
• Smart home setups with voice control via fanSync Wi-Fi app
• Year-round comfort with reversible airflow for summer and winter

Not ideal for

• Rooms under 8 ft ceilings without a flush mount option (downrod required)
• Those who prefer a fan without a light kit - this model includes one
• Spaces where a 56-inch blade sweep is too large, such as small bedrooms or offices

How bright is it?

The integrated 18-watt LED light kit provides 1,600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient or task lighting in medium to large rooms.

Light color and feel

With CCT Select technology, you can choose from 3000K warm white, 4000K bright white, or 5000K daylight. The high CRI of 90 ensures colors appear natural and accurate. The light is dimmable for adjustable ambiance.

Sizing and fit

This fan has a 56-inch blade sweep and overall dimensions of 56 x 56 x 12.42 inches (without light kit) and 18.12 inches (with light kit). It mounts to flat or minimally sloped ceilings (up to 27°) with the included 4.5-inch downrod. Optional downrods up to 72 inches are available to adjust the fan height to 7-9 ft from the floor. The canopy is 5.75 inches in diameter, and the housing is 7.09 inches in diameter.

Specifications

• Primary Finish: Matte White
• Blade Material: Composite
• Blade Finish: Matte White
• Shade Finish: Opal Frosted
• Collection: TriAire Custom
• Blade Sweep: 56"
• Number of Blades: 3
• Blade Pitch: 14°
• Motor Type: DC
• Motor Size: 158 X 22
• Motor Reversible: True
• Number of Speeds: 16
• Reverse Switch Location: Control
• Light Kit Included: True
• Included Control: TR305
• Control Type: Handheld
• 1 Bulb(s)
• Bulb Type: LED Module
• Bulb Base: Connector Pin
• Bulb Max Wattage: 18W
• Color Temperature: 3000/4000/5000K
• CRI: 90
• Lumens: 1600
• Voltage: 120V
• Avg CFM: 4252
• CFM High: 6775
• Avg Energy Use: 14W
• Max Slope: 27°
• Location Rating: Wet
• Safety Rating: UL Only Listed
• Warranty: Limited Lifetime Warranty
• Overall Dimensions: 56"(L) x 56"(W) x 12.42"(H)
• Housing Diameter: 7.09"
• Canopy Dimensions: 5.75"(Dia) x 2.57"(H)
• Downrod Length: 4.5"
• Leadwire Length: 80"
• Ceiling to Bottom (No Light Kit): 12.42"
• Ceiling to Bottom (With Light Kit): 18.12"
• Item Weight: 18.32 lbs.

Frequently asked

Is the bulb included? Yes, the integrated LED module is included and not replaceable.

Is it dimmable, and what dimmer should I use? Yes, the light is dimmable and can be controlled via the included TR305 remote or the fanSync app. No additional dimmer is needed.

Can I install this in a bathroom or outdoors? Yes, this fan is wet-rated, so it can be installed in bathrooms, covered patios, pergolas, gazebos, and other fully exposed outdoor areas.

What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor and providing dependable performance.

Does this fan work with sloped ceilings? Yes, it supports ceilings up to a 27° slope with the included downrod.
