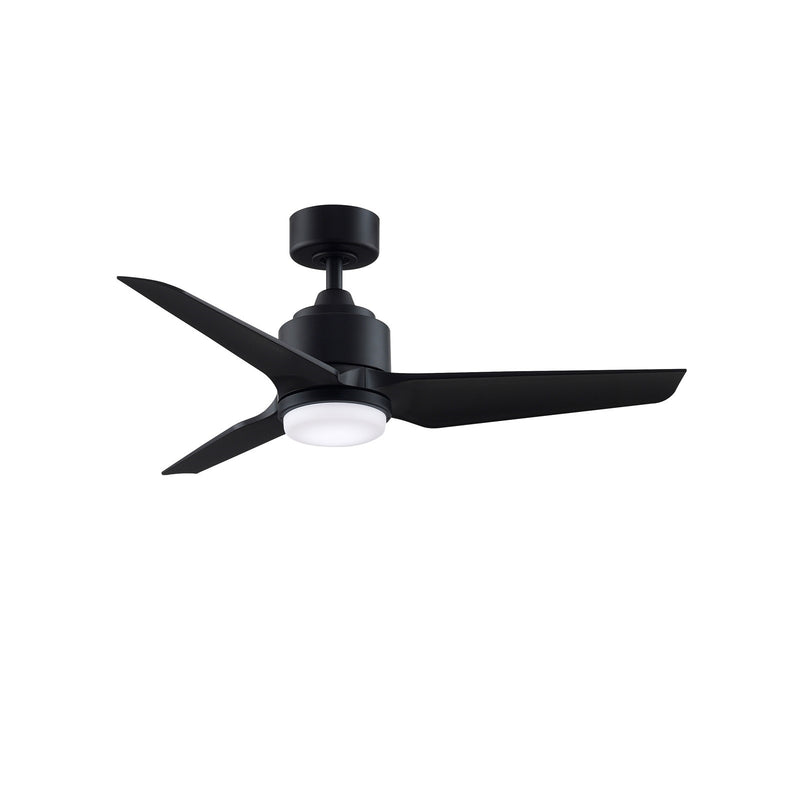

Fanimation TriAire Custom 56in 3-Blade Ceiling Fan with LED Light | Marine Grade Black Composite | Indoor & Outdoor Wet | Model FPD8514BLM-56BLW-LK

A 56-inch marine-grade smart ceiling fan with an integrated LED light kit, finished in black with black composite blades, for indoor and outdoor use.

The TriAire Custom by Fanimation combines powerful airflow with versatile lighting in a durable, wet-rated design. Its marine-grade construction withstands direct rain, water, and high humidity, making it ideal for patios, pergolas, and porches. The included 18-watt LED light kit offers three color temperatures (3000K, 4000K, 5000K) and a high CRI of 90, so you can tailor the light to the mood. Control everything—fan speed, light levels, and color temperature—via the included TR305 remote or the fanSync Wi-Fi app.

Best for

• Covered and fully exposed patios, pergolas, gazebos, and porches needing both airflow and light
• Large living rooms, great rooms, and bedrooms up to 500 sq ft requiring a bright, energy-efficient ceiling light
• Outdoor kitchens and dining areas where a single fixture provides illumination and comfort
• Smart home setups—control via the fanSync Wi-Fi app or voice assistants
• Year-round comfort with reversible airflow and adjustable light color from warm to daylight

Not ideal for

• Rooms with ceilings lower than 7 ft unless you use a flush mount (not included) to reduce hanging height
• Those who prefer a fan without a light—this model includes the LED light kit
• Spaces where a remote control is not desired—the included TR305 handheld remote is the primary control

How bright is it?

The integrated 18-watt LED light kit delivers 1,600 lumens—about as bright as a 100W incandescent bulb—making it suitable for ambient lighting in medium to large rooms. It is dimmable, so you can adjust the brightness to your preference.

Light color and feel

Choose from three color temperatures: 3000K warm white for a cozy, golden glow; 4000K bright white for a neutral, energizing light; or 5000K daylight for a crisp, cool tone. With a high CRI of 90, colors appear natural and accurate, ideal for outdoor entertaining or task areas.

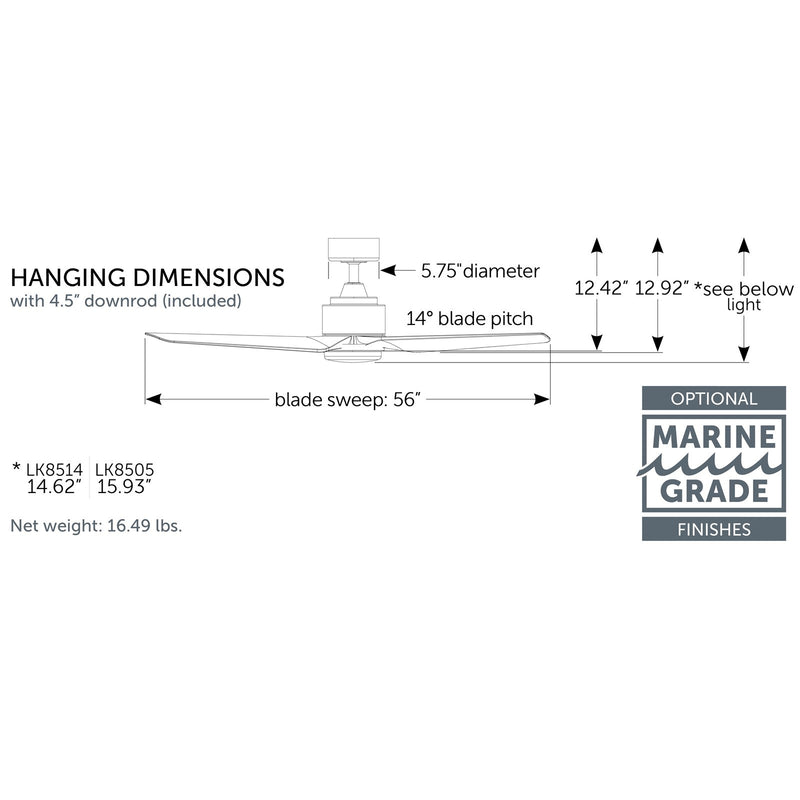

Sizing and fit

With a 56-inch blade sweep and a low-profile 12.42-inch height (without light kit), this fan suits large rooms. It mounts to flat or sloped ceilings (up to 27°) using the included 4.5-inch downrod; optional downrods up to 72 inches allow hanging heights from 7 to 9 feet. The canopy is 5.75 inches in diameter, and the housing is 7.09 inches.

Specifications

• Primary Finish: Black
• Blade Material: Composite
• Blade Finish: Black
• Shade Finish: Opal Frosted
• Collection: TriAire Custom
• Blade Sweep: 56"
• Number of Blades: 3
• Blade Pitch: 14°
• Motor Type: DC
• Motor Size: 158 X 22
• Motor Reversible: True
• Number of Speeds: 16
• Reverse Switch Location: Control
• Light Kit Included: True
• Included Control: TR305
• Control Type: Handheld
• 1 Bulb(s)
• Bulb Type: LED Module
• Bulb Base: Connector Pin
• Bulb Max Wattage: 18W
• Color Temperature: 3000/4000/5000K
• CRI: 90
• Lumens: 1600
• Voltage: 120V
• Avg CFM: 4252
• CFM High: 6775
• Avg Energy Use: 14W
• Max Slope: 27°
• Location Rating: Wet
• Safety Rating: UL Only Listed
• Warranty: Limited Lifetime Warranty
• Overall Dimensions: 56"(L) x 56"(W) x 12.42"(H)
• Housing Diameter: 7.09"
• Canopy Dimensions: 5.75"(Dia) x 2.57"(H)
• Downrod Length: 4.5"
• Leadwire Length: 80"
• Ceiling to Bottom (No Light Kit): 12.42"
• Ceiling to Bottom (With Light Kit): 18.12"
• Item Weight: 18.32 lbs.

Frequently asked

Is the bulb included? Yes, the LED module is integrated into the light kit and is included with the fan.

Is it dimmable, and what dimmer should I use? The light is dimmable and controlled via the included TR305 remote or the fanSync app. It is not compatible with standard wall dimmers.

Can I install this in a bathroom or outdoors? Yes, this fan is wet-rated, so it is safe for damp and wet locations, including fully exposed outdoor areas like patios and porches.

What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.

Can I change the light color after installation? Yes, use the remote or app to cycle through 3000K, 4000K, and 5000K color temperatures at any time.
