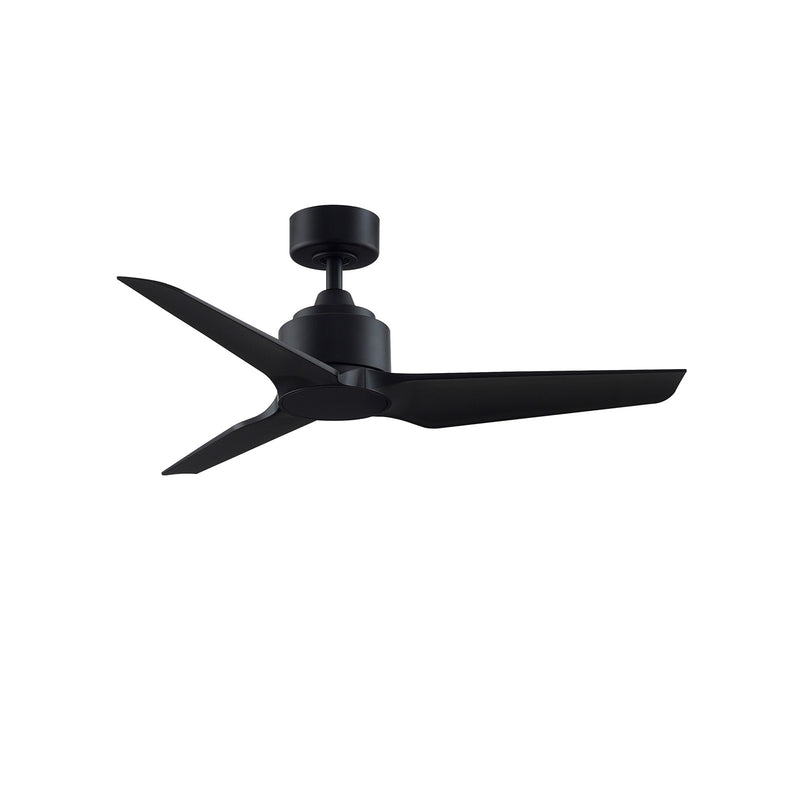

Fanimation TriAire Custom 56in 3-Blade Ceiling Fan | Marine Grade Black Composite | Indoor & Outdoor Wet Rated | Model FPD8514BLM-56BLW

A 56-inch marine-grade smart ceiling fan for indoor and outdoor spaces, finished in black with black composite blades.

The TriAire Custom by Fanimation is built to perform in fully exposed outdoor areas as well as interior rooms. Its marine-grade construction and wet-rated design withstand direct rain, water, and high humidity, making it a reliable choice for patios, pergolas, and porches. The minimalist look—no light kit included—keeps the focus on airflow, while the option to add a light kit later offers flexibility.

Best for

• Covered and fully exposed patios, pergolas, gazebos, and porches where wet-rated durability is essential
• Large living rooms, great rooms, and bedrooms up to 500 sq ft needing powerful, quiet airflow
• Outdoor kitchens and dining areas where a clean, unobtrusive ceiling fan is preferred
• Smart home setups—control via the fanSync Wi-Fi app or voice assistants
• Year-round comfort with reversible airflow for summer cooling and winter air circulation

Not ideal for

• Rooms with ceilings lower than 7 ft unless you use a flush mount (not included) to reduce hanging height
• Those who need a light source from the fan—this model ships without a light kit (light kit adaptable, sold separately)
• Spaces where a remote control is not desired—the included TR305 handheld remote is the primary control

How bright is it?

This fan does not include a light kit, so it provides no illumination on its own. It is compatible with an optional integrated 18-watt dimmable LED light kit (sold separately) that delivers 1,600 lumens—about as bright as a 100W incandescent bulb—with selectable color temperatures.

Light color and feel

Not applicable—no light included. If you add the optional LED light kit, you can choose from 3000K warm white, 4000K bright white, or 5000K daylight, with a high CRI of 90 for accurate color rendering.

Sizing and fit

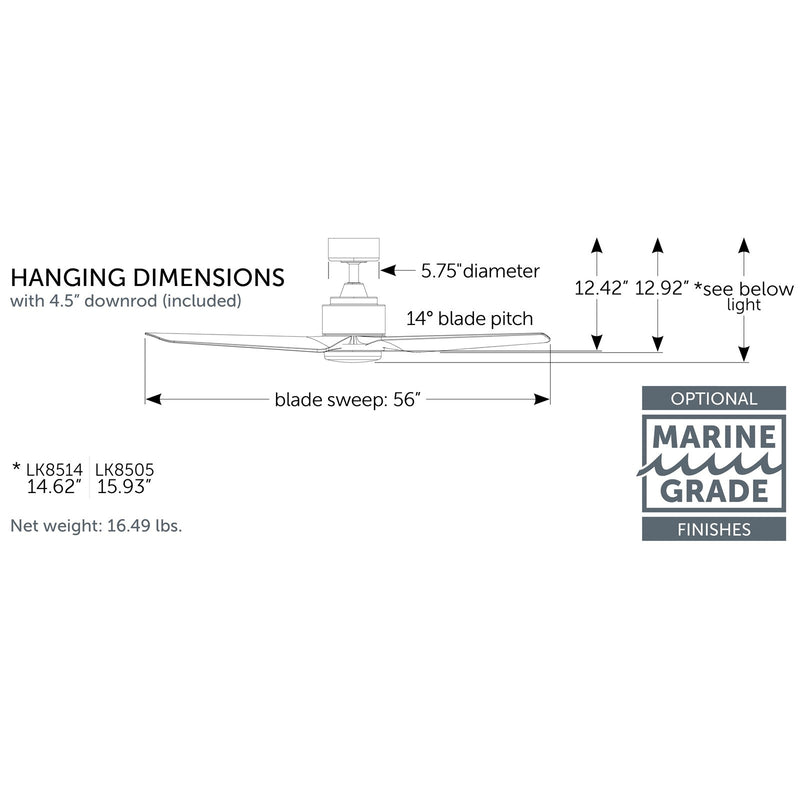

With a 56-inch blade sweep and a low-profile 12.92-inch height, this fan suits large rooms. It mounts to flat or sloped ceilings (up to 27°) using the included 4.5-inch downrod; optional downrods up to 72 inches allow hanging heights from 7 to 9 feet. The canopy is 5.75 inches in diameter, and the housing is 7.09 inches.

Specifications

• Primary Finish: Black
• Blade Material: Composite
• Blade Finish: Black
• Collection: TriAire Custom
• Blade Sweep: 56"
• Number of Blades: 3
• Blade Pitch: 14°
• Motor Type: DC
• Motor Size: 153 X 25
• Motor Reversible: True
• Number of Speeds: 16
• Reverse Switch Location: Control
• Included Control: TR305
• Control Type: Handheld
• Voltage: 120V
• Avg CFM: 4252
• CFM High: 6775
• Avg Energy Use: 14W
• Max Slope: 27°
• Location Rating: Wet
• Safety Rating: UL Only Listed
• Warranty: Limited Lifetime Warranty
• Overall Dimensions: 56"(L) x 56"(W) x 12.92"(H)
• Housing Diameter: 7.09"
• Canopy Dimensions: 5.75"(Dia) x 2.57"(H)
• Downrod Length: 4.5"
• Leadwire Length: 80"
• Item Weight: 16.49 lbs.

Frequently asked

Is the bulb included? No bulb is included because this fan does not come with a light kit. It is light-kit adaptable, and the optional LED light kit is sold separately.

Is it dimmable, and what dimmer should I use? The fan speed is controlled via the included TR305 remote or the fanSync app; it is not dimmable via a wall dimmer. The optional LED light kit is dimmable and controlled through the remote or app.

Can I install this in a bathroom or outdoors? Yes, this fan is wet-rated, so it is safe for damp and wet locations, including fully exposed outdoor areas like patios and porches.

What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.

Does this fan work with sloped ceilings? Yes, it supports ceiling slopes up to 27° with the included downrod. For steeper slopes, additional mounting accessories may be needed.
