Fanimation TriAire Custom 52in 3-Blade Wet Rated Smart Ceiling Fan with LED Light Kit | Marine Grade Matte White and | Model FPD8514MWM-52MWW-LK

A 52-inch marine-grade smart ceiling fan with an integrated LED light kit for covered patios, porches, and large indoor rooms, finished in matte white with matte white composite blades.

The TriAire Custom by Fanimation combines powerful airflow with versatile lighting in a wet-rated design that suits both indoor and outdoor spaces. Its marine-grade construction and weather-resistant matte white finish resist corrosion and fading, while the three matte white composite blades deliver a clean, minimalist look. The included 18-watt LED light kit features CCT Select technology, letting you choose from 3000K, 4000K, or 5000K color temperatures with a high CRI of 90 for accurate color rendering.

Best for

• Covered patios, pergolas, gazebos, and porches where the fan is exposed to rain and humidity
• Large living rooms, great rooms, and bedrooms with ceilings at least 8 ft high
• Outdoor kitchens and dining areas needing powerful airflow up to 6,100 CFM
• Smart home setups - control via the fanSync Wi-Fi app or voice assistant
• Year-round comfort with reversible airflow for summer and winter use

Not ideal for

• Small rooms under 120 sq ft where a 52-inch sweep may feel overpowering
• Ceilings steeper than 27 degrees without an additional sloped-ceiling adapter
• Anyone who prefers a fan without a light kit - this model includes one

How bright is it?

The integrated 18-watt LED light kit provides 1,600 lumens - roughly equivalent to a 100-watt incandescent bulb - making it suitable for ambient lighting in large rooms.

Light color and feel

With CCT Select technology, you can choose from 3000K warm white, 4000K bright white, or 5000K daylight. The high CRI of 90 ensures colors appear natural and accurate, ideal for outdoor entertaining or indoor living spaces.

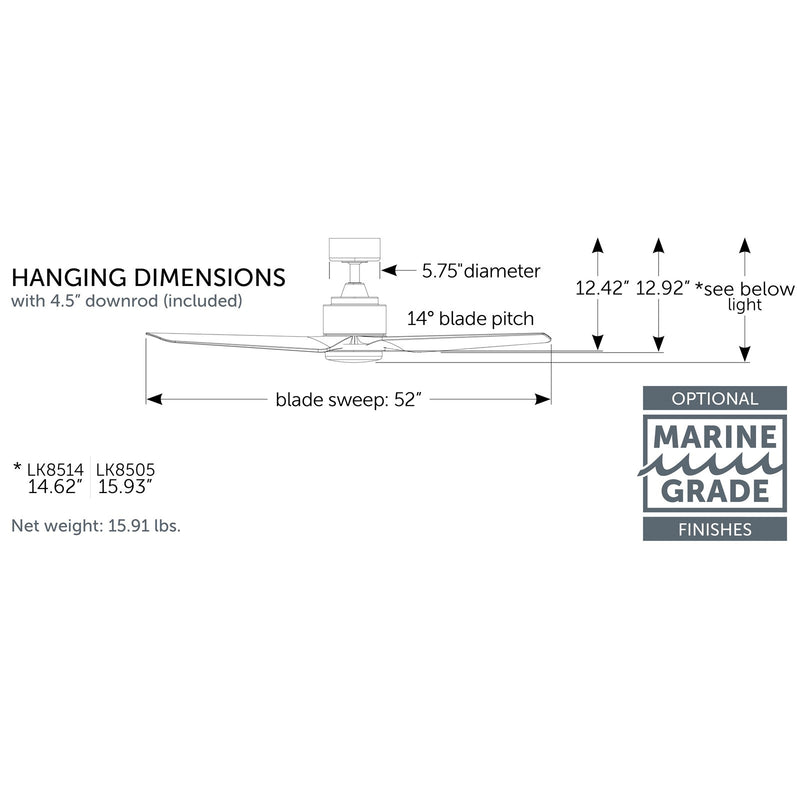

Sizing and fit

With a 52-inch blade sweep and overall dimensions of 52 x 52 x 12.42 inches (without light kit), this fan suits large rooms. It mounts to flat or sloped ceilings up to 27 degrees using the included 4.5-inch downrod; optional downrods up to 72 inches are available to adjust the height to 7-9 feet from the floor.

Specifications

• Primary Finish: Matte White
• Blade Material: Composite
• Blade Finish: Matte White
• Shade Finish: Opal Frosted
• Collection: TriAire Custom
• Blade Sweep: 52"
• Number of Blades: 3
• Blade Pitch: 14°
• Motor Type: DC
• Motor Size: 158 X 22
• Motor Reversible: True
• Number of Speeds: 16
• Reverse Switch Location: Control
• Light Kit Included: True
• Included Control: TR305
• Control Type: Handheld
• 1 Bulb(s)
• Bulb Type: LED Module
• Bulb Base: Connector Pin
• Bulb Max Wattage: 18W
• Color Temperature: 3000/4000/5000K
• CRI: 90
• Lumens: 1600
• Voltage: 120V
• Avg CFM: 3696
• CFM High: 6100
• Avg Energy Use: 12W
• Max Slope: 27°
• Location Rating: Wet
• Safety Rating: UL Only Listed
• Warranty: Limited Lifetime Warranty
• Overall Dimensions: 52"(L) x 52"(W) x 12.42"(H)
• Housing Diameter: 7.09"
• Canopy Dimensions: 5.75"(Dia) x 2.57"(H)
• Downrod Length: 4.5"
• Leadwire Length: 80"
• Ceiling to Bottom (No Light Kit): 12.42"
• Ceiling to Bottom (With Light Kit): 18.12"
• Item Weight: 17.73 lbs.

Frequently asked

Is the bulb included? Yes, the integrated LED light kit is included and features a connector pin base LED module.

Is it dimmable, and what dimmer should I use? The fan speed and light are controlled via the included TR305 remote or the fanSync app. The light is dimmable through these controls.

Can I install this in a bathroom or outdoors? Yes, this fan is wet rated, so it can be installed in bathrooms, covered patios, pergolas, gazebos, and other fully exposed outdoor areas.

What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser. For assistance, contact Fanimation Tech Support at 1-888-567-2055.

Can I use this with a sloped ceiling? Yes, it supports ceilings up to 27 degrees. For steeper slopes, you may need an additional adapter.
