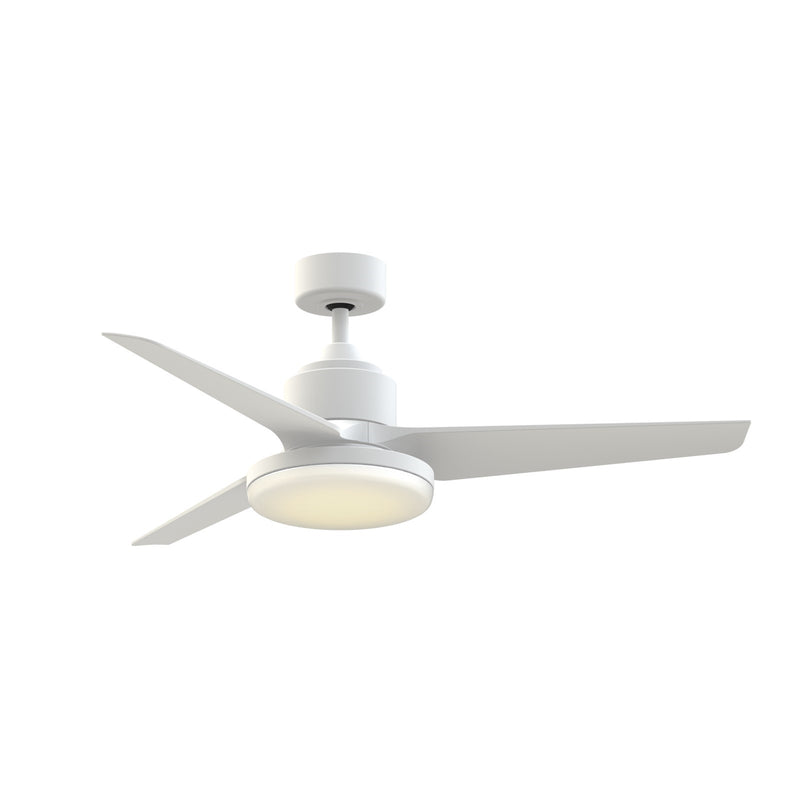

Fanimation TriAire Custom 52in 3-Blade Smart Ceiling Fan with 12in LED Light Kit | Matte White and Opal Frosted Glass | Model FPD8514MWW-52MWW-12LK

A 52-inch smart ceiling fan with an integrated 12-inch LED light kit, featuring CCT Select technology for adjustable color temperatures, ideal for indoor and outdoor wet locations.

The TriAire Custom ceiling fan from Fanimation combines sleek, minimalist design with advanced smart technology. Its three slender composite blades in matte white create a clean, contemporary look that suits a variety of decor styles. The integrated 12-inch LED light kit features an opal frosted shade and CCT Select technology, allowing you to choose from five color temperatures (2700K to 5000K) to match your mood and decor. Powered by a quiet, energy-efficient DC motor, this fan delivers powerful airflow up to 6,100 CFM while maintaining whisper-quiet operation. With built-in Wi-Fi and FanSync technology, you can control the fan and light effortlessly via your smart device or voice assistant.

Best for

• Covered patios, gazebos, pergolas, and porches where wet-rated fixtures are required
• Living rooms and great rooms with ceilings up to 27° slope, providing ample air circulation and lighting
• Bedrooms and home offices needing quiet, energy-efficient cooling with 16-speed control and adjustable lighting
• Outdoor kitchens and dining areas where a durable, weather-resistant fan with integrated light is essential

Not ideal for

• Indoor rooms with ceilings lower than 7 feet, as the fan may hang too low for safe clearance
• Spaces where a brighter light output is needed, as the 12-inch light kit provides 3600 lumens, suitable for ambient lighting but not as a primary light source

How bright is it?

The integrated LED light kit provides 3600 lumens, which is comparable to a 200-watt incandescent bulb, making it suitable for ambient lighting in medium to large rooms. It is dimmable, allowing you to adjust the brightness to your preference.

Light color and feel

The CCT Select technology offers five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral white), 4000K (cool white), and 5000K (daylight). This allows you to customize the light to suit different activities and moods, from cozy warm light for relaxation to bright daylight for tasks. With a CRI of 90, colors appear vibrant and accurate.

Sizing and fit

With a 52-inch blade sweep and overall dimensions of 52 x 52 x 15.93 inches, this fan is suitable for medium to large rooms (up to 400 sq ft). It comes with a 4.5-inch downrod, and optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height. The fan is designed for flat or slightly sloped ceilings up to 27°.

Specifications

• Primary Finish: Matte White
• Blade Material: Composite
• Blade Finish: Matte White
• Shade Finish: Opal Frosted
• Collection: TriAire Custom
• Blade Sweep: 52"
• Number of Blades: 3
• Blade Pitch: 14°
• Motor Type: DC
• Motor Size: 158 X 22
• Motor Reversible: True
• Number of Speeds: 16
• Reverse Switch Location: Control
• Light Kit Included: True
• Included Control: TR305
• Control Type: Handheld
• 1 Bulb(s)
• Bulb Type: LED Module
• Bulb Base: Connector Pin
• Bulb Max Wattage: 40W
• Color Temperature: 2700, 3000, 3500, 4000, 5000K
• CRI: 90
• Lumens: 3600
• Voltage: 120V
• Avg CFM: 3696
• CFM High: 6100
• Avg Energy Use: 12W
• Max Slope: 27°
• Location Rating: Wet
• Safety Rating: UL Only Listed
• Energy Star: True
• Warranty: Limited Lifetime Warranty

Frequently asked

Is the bulb included? Yes, the integrated LED module is included and is not replaceable.

Is it dimmable, and what dimmer should I use? Yes, the light is dimmable. Use the included TR305 remote or the FanSync app to adjust brightness. No external dimmer is required.

Can I install this in a bathroom or outdoors? Yes, this fan is wet-rated, making it suitable for outdoor locations like patios, gazebos, and porches, as well as indoor rooms.

What's the warranty? Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.

How does the CCT Select technology work? The CCT Select feature allows you to choose from five color temperatures (2700K to 5000K) using the remote or app, so you can adjust the light from warm to cool to suit your preference.
