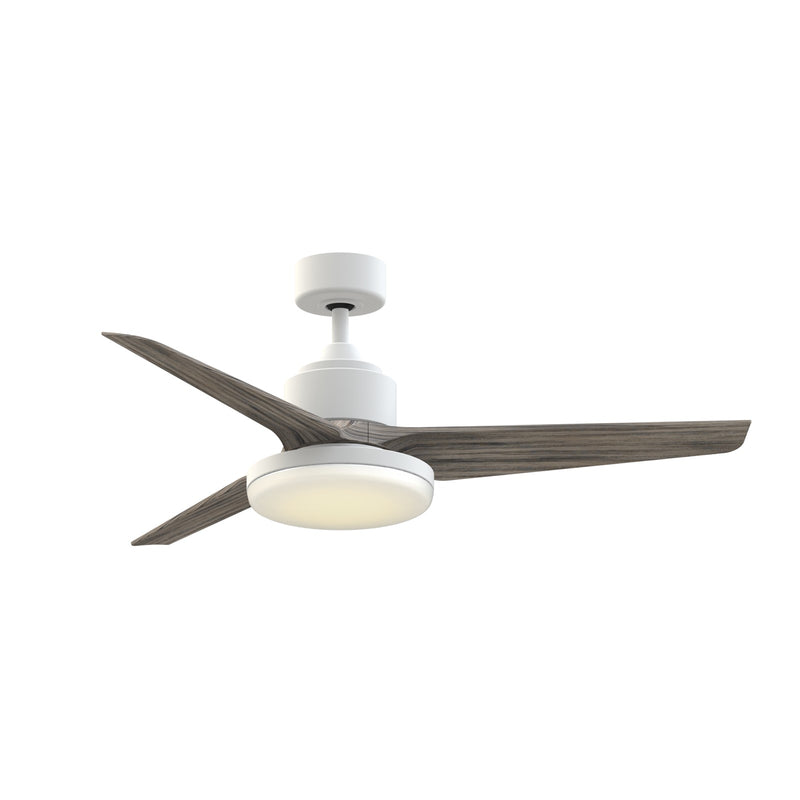

Fanimation TriAire Custom 52in 1-Light Ceiling Fan | Modern Matte White and Weathered Wood Composite Blades | Covered | Model FPD8514MWW-52WEW-12LK

A 52-inch smart ceiling fan with a 12-inch integrated LED light kit, designed for both indoor and outdoor wet locations, ideal for covered patios, pergolas, and large living spaces.

The TriAire Custom ceiling fan from Fanimation combines a sleek, modern aesthetic with high-performance airflow. Its three slender blades in a weathered wood finish contrast beautifully with the matte white housing, creating a contemporary look that suits a variety of decor styles. Powered by a quiet and energy-efficient DC motor, this fan delivers powerful airflow up to 6,100 CFM while maintaining whisper-quiet operation. With integrated Wi-Fi and FanSync technology, you can control the fan and light with your smart device or voice assistant, and the included handheld remote offers convenient manual control.

Best for

• Covered patios, pergolas, and gazebos where wet-rated fixtures are required
• Large living rooms and great rooms up to 400 square feet
• Bedrooms and home offices needing quiet, energy-efficient airflow
• Outdoor kitchens and dining areas with high ceilings
• Smart home setups with voice assistants like Alexa or Google Home

Not ideal for

• Indoor rooms with ceilings under 8 feet unless using a shorter downrod (4.5-inch included)
• Spaces where a light kit is not desired, as this model includes an integrated LED light
• Areas with very low clearance where the 15.93-inch drop from ceiling to bottom may be too much

How bright is it?

The integrated 40-watt LED module produces 3600 lumens, roughly equivalent to a 250-watt incandescent bulb. This provides bright, ample illumination for a living room or covered patio, making it suitable as a primary light source. The light is dimmable, allowing you to adjust brightness to suit your mood.

Light color and feel

With CCT Select technology, you can choose from five color temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K. This flexibility lets you create the perfect ambiance, from a cozy warm glow for evenings to a crisp, energizing light for daytime activities. The high CRI of 90 ensures colors appear vibrant and true to life, making it suitable for art displays and kitchens.

Sizing and fit

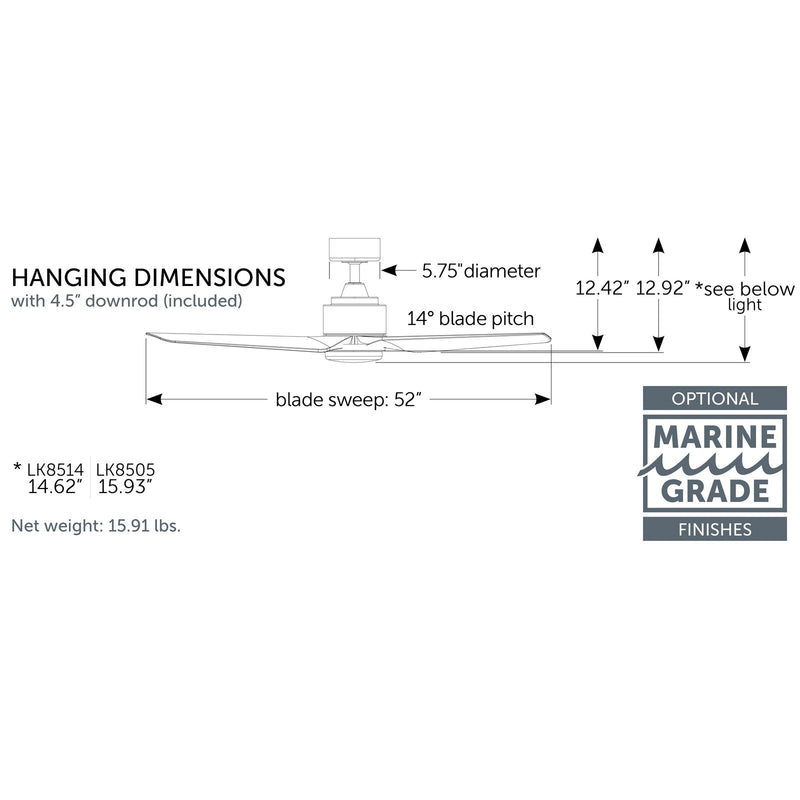

This fan has a 52-inch blade sweep, making it ideal for rooms 144 to 400 square feet. The overall dimensions are 52 inches wide by 52 inches deep by 15.93 inches high (from ceiling to bottom with light kit). It comes with a 4.5-inch downrod, and optional downrods up to 72 inches are available for higher ceilings. The fan is designed for flat or slightly sloped ceilings (up to 27 degrees).

Specifications

• Primary Finish: Matte White
• Blade Material: Composite
• Blade Finish: Weathered Wood
• Shade Finish: Opal Frosted
• Collection: TriAire Custom
• Blade Sweep: 52"
• Number of Blades: 3
• Blade Pitch: 14°
• Motor Type: DC
• Motor Size: 158 X 22
• Motor Reversible: True
• Number of Speeds: 16
• Reverse Switch Location: Control
• Light Kit Included: True
• Included Control: TR305
• Control Type: Handheld
• 1 Bulb(s)
• Bulb Type: LED Module
• Bulb Base: Connector Pin
• Bulb Max Wattage: 40W
• Color Temperature: 2700, 3000, 3500, 4000, 5000K
• CRI: 90
• Lumens: 3600
• Voltage: 120V
• Avg CFM: 3696
• CFM High: 6100
• Avg Energy Use: 12W
• Max Slope: 27°
• Location Rating: Wet
• Safety Rating: UL Only Listed
• Energy Star: True
• Warranty: Limited Lifetime Warranty

Frequently asked

Is the bulb included? Yes, the integrated LED module is included and cannot be replaced.

Is it dimmable, and what dimmer should I use? Yes, the light is dimmable. Use the included TR305 remote or the FanSync app to adjust brightness. No wall dimmer is required.

Can I install this in a bathroom or outdoors? Yes, this fan is wet-rated, making it suitable for covered outdoor areas and bathrooms with shower exposure.

What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.

How does the 12-inch light kit differ from the standard kit? The 12-inch light kit is larger and brighter (3600 lumens vs 1600 lumens) and offers five color temperatures instead of three, providing more flexibility for larger spaces.
