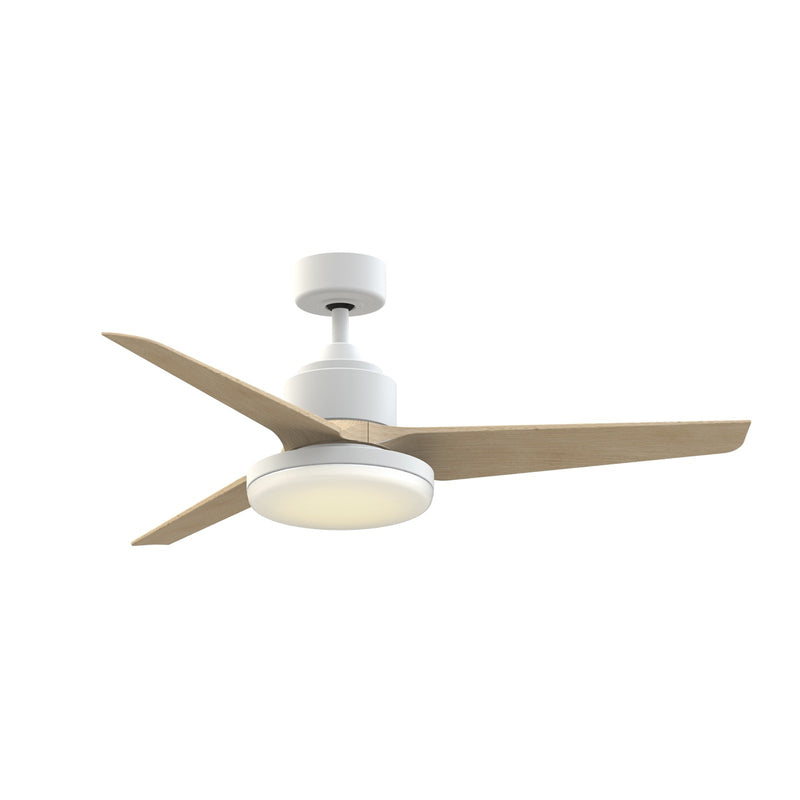

Fanimation TriAire Custom 52in 1-Light Ceiling Fan | Modern Matte White and Natural Blades with Opal Frosted Glass | Model FPD8514MWW-52NW-12LK
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description
A 52-inch smart ceiling fan with a larger 12-inch integrated LED light kit, designed for both indoor and outdoor wet locations like patios and porches.
The TriAire Custom from Fanimation pairs a sleek, modern matte white finish with three natural composite blades and a 12-inch opal frosted glass light kit for enhanced illumination. Its high-performance DC motor delivers powerful airflow while remaining whisper-quiet, and the integrated Wi-Fi FanSync lets you control fan speed, light color, and more from your smart device or voice assistant. This fan is Energy Star certified for year-round efficiency.
Best for
- Covered patios, pergolas, and gazebos where wet-rated durability is essential
- Large living rooms and great rooms up to 400 sq ft needing strong airflow and bright lighting
- Outdoor kitchens and dining areas where ample light is needed for evening entertaining
- Bedrooms and home offices where quiet operation and smart control are valued
- Spaces with sloped ceilings up to 27 degrees
Not ideal for
- Rooms with ceilings under 8 ft if you need a longer downrod (optional downrods up to 72 in available)
- Those seeking a traditional or ornate fan style - this is a modern, minimalist design
- Installation without a compatible smart home setup if you want full voice control
How bright is it?
The integrated 40-watt LED module produces 3600 lumens - comparable to a 250W incandescent bulb, providing bright ambient light suitable for large rooms or outdoor areas. It is dimmable, so you can adjust brightness to suit the mood.
Light color and feel
With CCT Select technology, you can choose from 2700K warm white, 3000K soft white, 3500K neutral white, 4000K bright white, or 5000K daylight. The 90 CRI ensures colors appear vivid and accurate, ideal for outdoor entertaining or task areas. The opal frosted shade diffuses light softly, reducing glare.

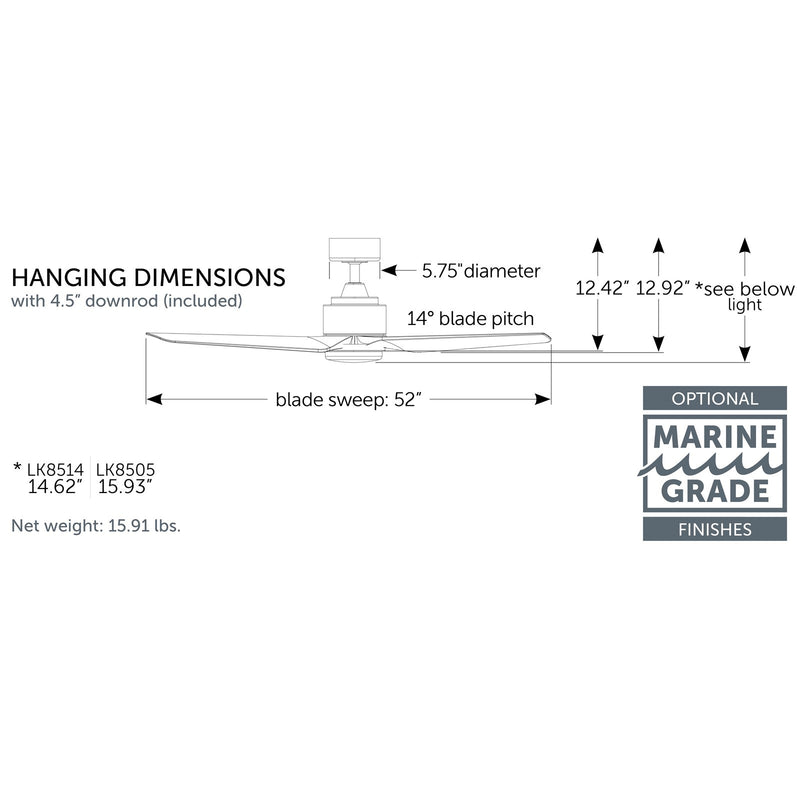

Sizing and fit
This fan measures 52 inches in blade sweep and 15.93 inches from ceiling to bottom with the light kit. It comes with a 4.5-inch downrod and is designed for flat or sloped ceilings up to 27 degrees. Optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Matte White
- Blade Material: Composite
- Blade Finish: Natural
- Shade Finish: Opal Frosted
- Collection: TriAire Custom
- Blade Sweep: 52"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 158 X 22
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 40W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 3600
- Voltage: 120V
- Avg CFM: 3696
- CFM High: 6100
- Avg Energy Use: 12W
- Max Slope: 27°
- Location Rating: Wet
- Safety Rating: UL Only Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 52"(L)52"(W) x 15.93"(H)
- Housing Diameter: 7.09"
- Canopy Dimensions: 5.75"(Dia) x 2.57"(H)
- Downrod Length: 4.5"
- Leadwire Length: 80"
- Ceiling to Bottom (No Light Kit): 12.92"
- Ceiling to Bottom (With Light Kit): 15.93"
- Item Weight: 20.51 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and not replaceable.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included TR305 remote or the FanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, it is wet-rated, so it is safe for outdoor wet locations and indoor rooms like bathrooms.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does it work with Alexa or Google Home? Yes, FanSync works with smart devices and voice assistants via Wi-Fi.
