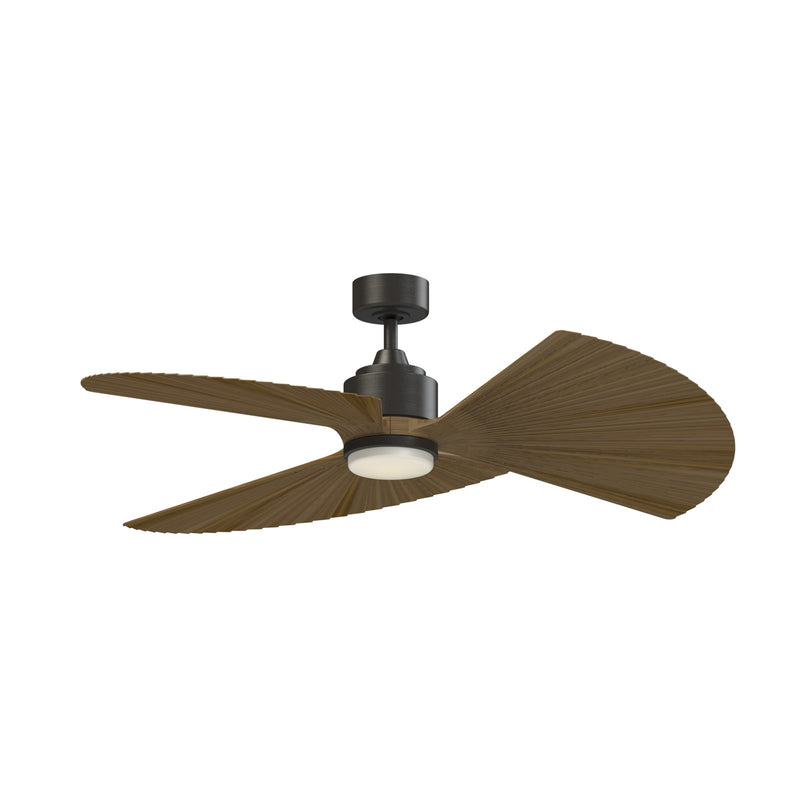

Fanimation TriAire Custom 52in 1-Light Ceiling Fan | Dark Bronze and Pleated Koa Composite Blades | Indoor & Outdoor Wet | Model FPD8514DZW-52PKW-LK

A 52-inch smart ceiling fan with an integrated dimmable LED light kit, designed for both indoor and outdoor wet-rated spaces like covered patios and pergolas.

The TriAire Custom ceiling fan from Fanimation combines a sleek, modern three-blade design with a powerful DC motor and smart home connectivity. Finished in dark bronze with pleated koa composite blades, it brings a contemporary yet organic look to any space. The integrated 18-watt LED light kit with CCT Select technology lets you choose from warm white, bright white, or daylight, while the opal frosted shade diffuses light evenly. With Wi-Fi FanSync, you can control the fan and light via the fanSync app or voice assistants, and the included handheld remote offers 16 speeds and multiple modes.

Best for

• Covered patios, pergolas, and gazebos where wet-rated durability is essential
• Living rooms and great rooms up to 20x20 ft, providing high airflow and ambient lighting
• Bedrooms and home offices needing quiet, energy-efficient air circulation with adjustable light color
• Outdoor kitchens and dining areas, with the light kit illuminating meal prep and dining
• Smart home setups, integrating with Amazon Alexa, Google Assistant, or the fanSync app

Not ideal for

• Indoor-only spaces if you prefer a fan without a light kit (this model includes one)
• Rooms with ceilings steeper than 27° without an angled-mount adapter (not included)
• Very large rooms over 400 sq ft where a 60-inch or larger fan may be more effective

How bright is it?

The integrated LED module produces 1600 lumens, comparable to a 100-watt incandescent bulb. This is sufficient for ambient lighting in a medium-sized room, but not as a primary task light for detailed work.

Light color and feel

With CCT Select technology, you can choose from 3000K (warm white), 4000K (bright white), or 5000K (daylight). Warm white creates a cozy, inviting glow; bright white is crisp and neutral; daylight mimics natural sunlight. The high CRI of 90 ensures colors appear vibrant and accurate, ideal for living spaces and outdoor entertaining.

Sizing and fit

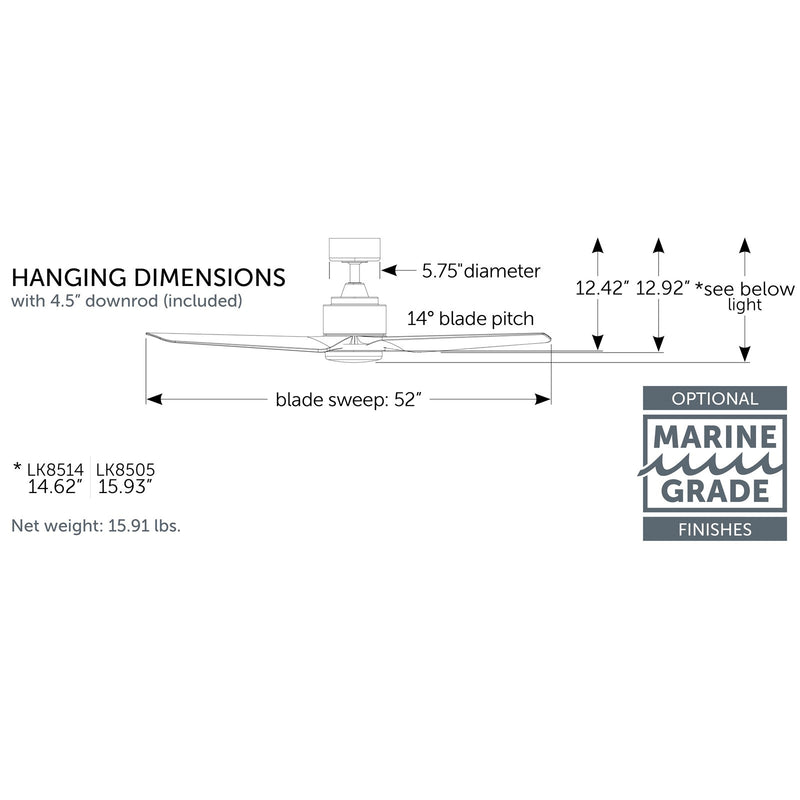

This 52-inch fan is suitable for rooms up to 400 sq ft. The overall dimensions are 52 inches wide by 14.62 inches high (from ceiling to bottom with light kit). It comes with a 4.5-inch downrod, and optional downrods up to 72 inches are available for higher ceilings. The fan is designed for flat or slightly sloped ceilings (up to 27°).

Specifications

• Primary Finish: Dark Bronze
• Blade Material: Composite
• Blade Finish: Koa
• Shade Finish: Opal Frosted
• Collection: TriAire Custom
• Blade Sweep: 52"
• Number of Blades: 3
• Blade Pitch: 14°
• Motor Type: DC
• Motor Size: 158 X 22
• Motor Reversible: True
• Number of Speeds: 16
• Reverse Switch Location: Control
• Light Kit Included: True
• Included Control: TR305
• Control Type: Handheld
• 1 Bulb(s)
• Bulb Type: LED Module
• Bulb Base: Connector Pin
• Bulb Max Wattage: 18W
• Color Temperature: 3000/4000/5000K
• CRI: 90
• Lumens: 1600
• Voltage: 120V
• Avg CFM: 3696
• CFM High: 6100
• Avg Energy Use: 12W
• Max Slope: 27°
• Location Rating: Wet
• Safety Rating: UL Only Listed
• Energy Star: True
• Warranty: Limited Lifetime Warranty

Frequently asked

Is the bulb included? Yes, the integrated LED module is included and cannot be replaced.

Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included remote or the fanSync app. No additional dimmer switch is needed.

Can I install this in a bathroom or outdoors? Yes, this fan is wet-rated, making it safe for outdoor locations like covered patios and also suitable for bathrooms with shower exposure.

What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor.

How does the CCT Select technology work? You can cycle through three color temperatures (3000K, 4000K, 5000K) using the remote or app to match your desired ambiance.
