Fanimation TriAire Custom 52in 1-Light Ceiling Fan | Black and Matte White Pleated Composite Blades | Patio & Porch | Model FPD8514BLW-52PMWW-12LK

A 52-inch wet-rated smart ceiling fan with an integrated 12-inch LED light kit, designed for covered outdoor spaces and large indoor rooms.

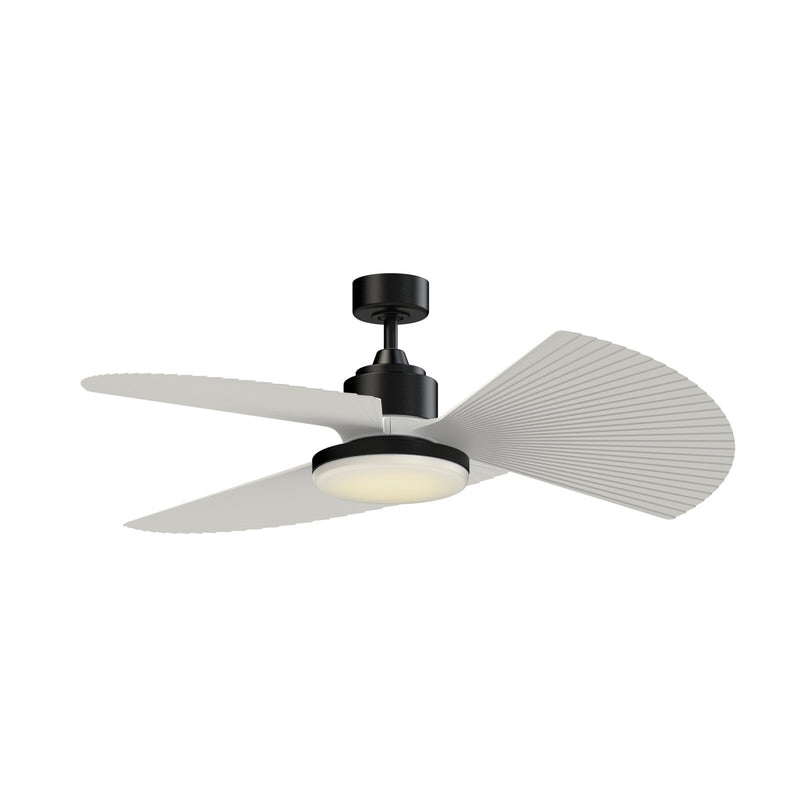

The TriAire Custom ceiling fan from Fanimation brings a sleek, modern silhouette to any space with its three slender, pleated matte white blades and matte black housing. The integrated 12-inch LED light kit with CCT Select technology lets you choose from five color temperatures, from warm white to daylight, while the opal frosted shade diffuses light softly. Powered by a quiet, energy-efficient DC motor, this fan delivers powerful airflow up to 6,100 CFM, making it a versatile choice for both indoor comfort and outdoor relaxation.

Best for

• Covered patios, porches, and pergolas where wet-rated durability is essential
• Great rooms and open-plan living areas up to 20x20 ft that need strong airflow
• Bedrooms and home offices where whisper-quiet operation and smart control are valued
• Outdoor kitchens and gazebos that need both air movement and ambient lighting
• Homes with sloped ceilings up to 27° using the included 4.5-inch downrod

Not ideal for

• Rooms with ceilings under 8 ft unless you use a flush mount (not included) to maintain safe clearance
• Small spaces under 100 sq ft where a 52-inch sweep may feel overpowering
• Indoor-only installations if you prefer a fan without a light kit (this model includes one)

How bright is it?

This fan's integrated LED module delivers 3600 lumens - roughly equivalent to a 250W incandescent bulb - providing ample illumination for a large living area or covered patio. It's bright enough to serve as the primary light source in a 15x15 ft room, and dimmable to create a softer ambiance when needed.

Light color and feel

With CCT Select technology, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral white), 4000K (cool white), or 5000K (daylight) to match your mood and decor. The high CRI of 90 ensures colors appear vibrant and true, making it ideal for outdoor entertaining or showcasing artwork. The light is dimmable, and the included remote allows you to adjust brightness and color temperature with ease.

Sizing and fit

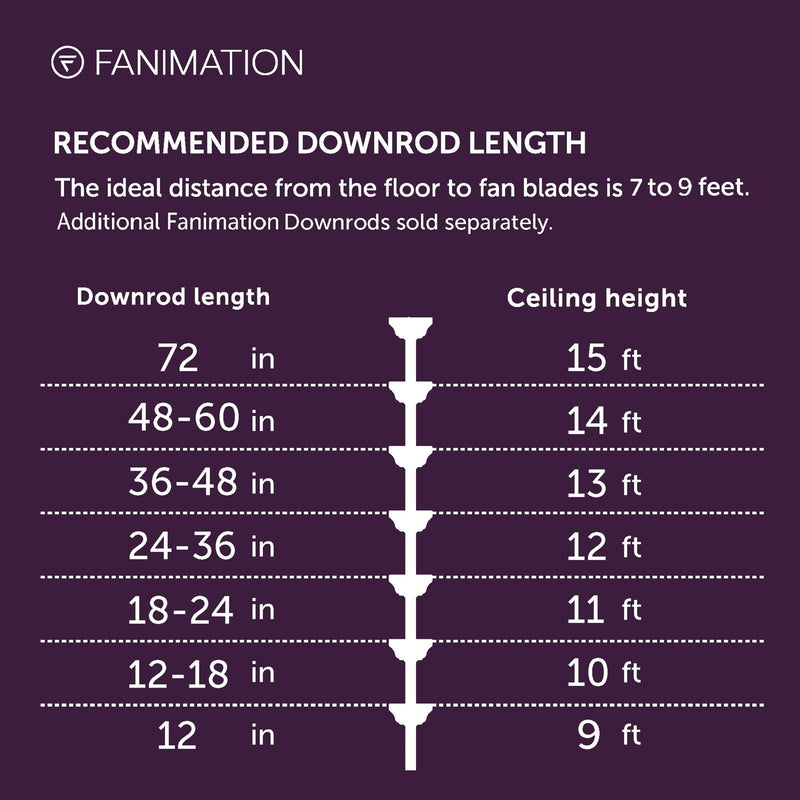

This 52-inch fan has an overall height of 15.93 inches from ceiling to bottom when installed with the included 4.5-inch downrod. It's designed for flat or sloped ceilings up to 27°, and optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height. The fan weighs 25.89 lbs and requires a standard 120V electrical supply.

Specifications

• Primary Finish: Black
• Blade Material: Composite
• Blade Finish: Matte White
• Shade Finish: Opal Frosted
• Collection: TriAire Custom
• Blade Sweep: 52"
• Number of Blades: 3
• Blade Pitch: 14°
• Motor Type: DC
• Motor Size: 158 X 22
• Motor Reversible: True
• Number of Speeds: 16
• Reverse Switch Location: Control
• Light Kit Included: True
• Included Control: TR305
• Control Type: Handheld
• 1 Bulb(s)
• Bulb Type: LED Module
• Bulb Base: Connector Pin
• Bulb Max Wattage: 40W
• Color Temperature: 2700, 3000, 3500, 4000, 5000K
• CRI: 90
• Lumens: 3600
• Voltage: 120V
• Avg CFM: 3696
• CFM High: 6100
• Avg Energy Use: 12W
• Max Slope: 27°
• Location Rating: Wet
• Safety Rating: UL Only Listed
• Energy Star: True
• Warranty: Limited Lifetime Warranty

Frequently asked

Is the bulb included? Yes, the integrated LED module is included and rated for 40W.

Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR305 remote or the Fanimation fanSync app. No separate wall dimmer is required.

Can I install this in a bathroom or outdoors? Yes, this fan is wet-rated, making it safe for covered outdoor areas and damp indoor spaces like bathrooms.

What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.

How does the CCT Select technology work? You can cycle through five color temperatures (2700K to 5000K) using the remote or app, allowing you to customize the light to your preference.
