Fanimation TriAire Custom 48in Ceiling Fan | Modern Dark Bronze and Black Composite Blades | Covered Patio & Living Room | Model FPD8514DZW-48BLW

A 48-inch wet-rated smart ceiling fan without a light kit, ideal for covered patios, porches, and large living rooms.

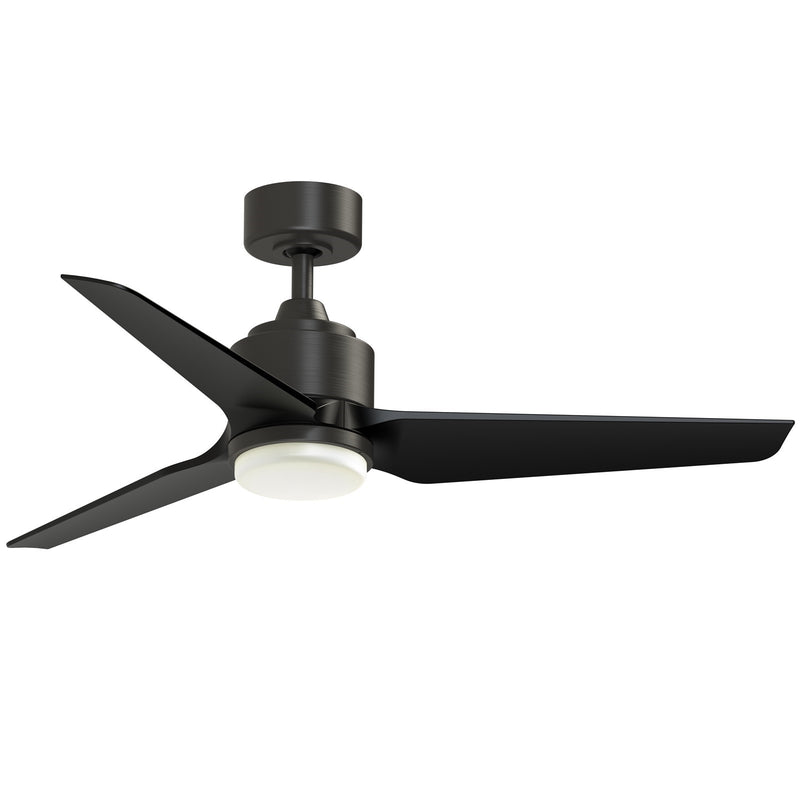

The TriAire Custom ceiling fan from Fanimation brings a sleek, modern look to any space. Its three slender composite blades in black contrast with the dark bronze motor housing, creating a sophisticated, contemporary aesthetic. Powered by a quiet, energy-efficient DC motor, it moves up to 5,297 CFM of air while using just 13 watts on average. This version is designed for those who prefer a fan without a light kit, but it's compatible with an optional integrated LED light kit (sold separately) if you change your mind later.

Best for

• Covered patios, porches, and pergolas where a wet-rated fan is required
• Living rooms and great rooms up to 450 sq ft, providing strong airflow
• Bedrooms and home offices needing quiet, energy-efficient air circulation
• Smart home setups—control via the Fanimation fanSync app or voice assistants
• Rooms with sloped ceilings up to 27°, using the included 4.5-inch downrod

Not ideal for

• Spaces that need a light source from the fan—this model has no light kit
• Indoor rooms with ceilings under 8 ft, as the fan hangs 12.92 inches from the ceiling
• Areas with very high ceilings (over 12 ft) without purchasing an optional longer downrod

How bright is it?

This fan does not include a light kit, so brightness depends on your existing room lighting. It is compatible with an optional 18-watt LED light kit (sold separately) that provides 1600 lumens.

Light color and feel

If you add the optional light kit, you'll get CCT Select technology with 3000K, 4000K, and 5000K color temperature options, plus a 90 CRI for accurate color rendering.

Sizing and fit

This fan measures 48 inches in blade sweep and hangs 12.92 inches from the ceiling (without light kit). It's designed for flat or sloped ceilings up to 27°. The included 4.5-inch downrod works for standard 8-9 ft ceilings; optional downrods up to 72 inches are available for higher ceilings. The canopy is 5.75 inches in diameter.

Specifications

• Primary Finish: Dark Bronze
• Blade Material: Composite
• Blade Finish: Black
• Collection: TriAire Custom
• Blade Sweep: 48"
• Number of Blades: 3
• Blade Pitch: 14°
• Motor Type: DC
• Motor Size: 158 X 22
• Motor Reversible: True
• Number of Speeds: 16
• Reverse Switch Location: Control
• Included Control: TR305
• Control Type: Handheld
• Voltage: 120V
• Avg CFM: 3412
• CFM High: 5297
• Avg Energy Use: 13W
• Max Slope: 27°
• Location Rating: Wet
• Safety Rating: UL Only Listed
• Energy Star: True
• Warranty: Limited Lifetime Warranty
• Overall Dimensions: 44"(L)44"(W) x 12.92"(H)
• Housing Diameter: 7.09"
• Canopy Dimensions: 5.75"(Dia) x 2.57"(H)
• Downrod Length: 4.5"
• Leadwire Length: 80"
• Ceiling to Bottom (No Light Kit): 12.92"
• Item Weight: 16.1 lbs.

Frequently asked

What is it made of? The motor housing is dark bronze metal, and the blades are composite material in a black finish.

Where in the home does this work best? It's wet-rated, so it's ideal for covered outdoor areas like patios and porches, as well as large indoor rooms like living rooms and bedrooms.

How is it mounted or assembled? It mounts to the ceiling with the included 4.5-inch downrod and canopy. Some assembly is required, including attaching the blades.

What's the warranty? Limited Lifetime Warranty for the original purchaser, covering the motor.

Can I add a light kit later? Yes, this fan is compatible with an optional integrated LED light kit (sold separately) that features CCT Select technology.
