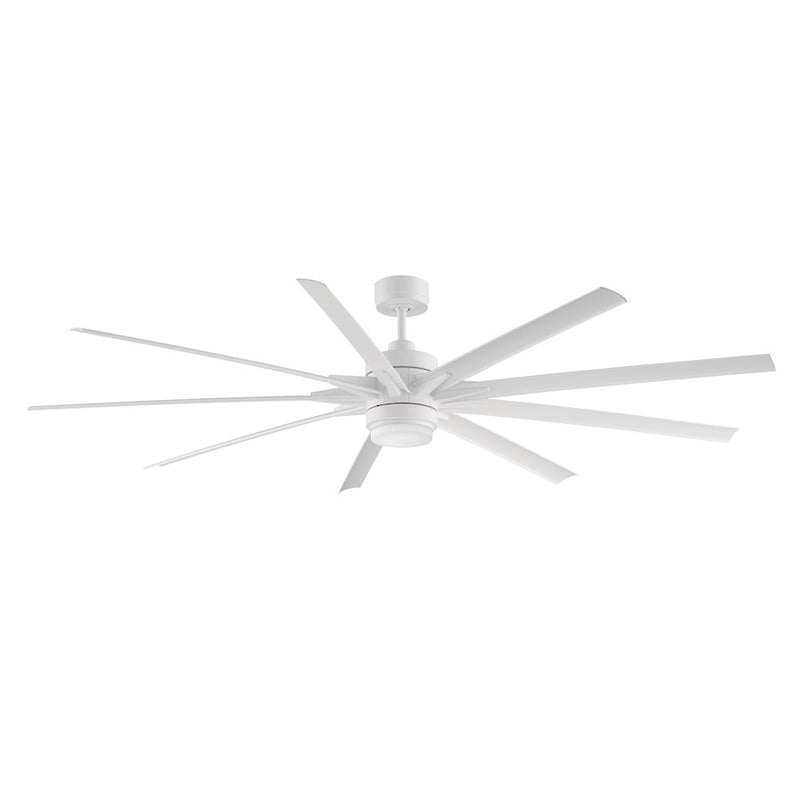

Fanimation Odyn 84in 9-Blade Ceiling Fan | Matte White and Opal Frosted Glass | Covered Patio & Outdoor Living | 84 x 84 x 17 in | Model FPD8149MWW
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description
A massive 84-inch wet-rated ceiling fan with a dimmable LED light kit, designed for large covered outdoor spaces and great rooms where you need serious airflow and a commanding presence.
The Odyn by Fanimation is a statement piece that pairs an industrial, sculptural look with modern efficiency. Its DC motor sips energy while moving up to 11,190 CFM of air, and the integrated LED light provides warm, functional illumination. Finished in matte white with matching composite blades and an opal frosted glass diffuser, this fan is built to perform in wet locations, making it a smart choice for covered patios, verandas, and other damp environments.
Best for
- Covered patios, verandas, and screened porches where a wet-rated fan is required
- Great rooms, vaulted ceilings, and open-plan living areas of 400 sq ft or more
- Outdoor kitchens or covered dining areas that need both airflow and light
- Homes with high ceilings (10 ft or more) where the 84-inch sweep can shine
- Energy-conscious buyers who want a DC motor with six speeds and reverse
Not ideal for
- Small rooms under 12x12 ft - the 84-inch blade sweep will overwhelm the space
- Indoor-only installations if you need a fan that can also handle direct rain exposure (this is wet-rated, so it's fine outdoors, but it's large for most indoor rooms)
- Low ceilings under 9 ft - the fan hangs 16.64 inches from the ceiling, which may be too low
How bright is it?
The integrated 18W LED module delivers 1350 lumens - roughly equivalent to a 75W incandescent bulb. That's enough to light a large seating area or outdoor dining space, but it's not a replacement for a dedicated floodlight or landscape lighting.
Light color and feel
3000K warm white - a soft, golden tone similar to traditional incandescent. It flatters skin tones and warm finishes, creating a cozy, inviting glow. The CRI of 80 is adequate for most residential settings, though not ideal for art display or task lighting where color accuracy is critical. The LED is dimmable, and the included handheld remote (TR39) makes it easy to adjust both fan speed and light level.
Sizing and fit
This fan has an 84-inch blade sweep and overall dimensions of 84 x 84 x 17 inches. The canopy is 6.5 inches in diameter, and the housing is 8.27 inches. From ceiling to blade edge is 12.2 inches, and ceiling to bottom (with light kit) is 16.64 inches. The 80-inch lead wire offers flexibility for mounting. Ideal for ceilings 10 ft or higher; for lower ceilings, consider a flush mount or shorter downrod (not included).
Specifications
- Finish: Matte White
- Shade/Glass Finish: Opal Frosted
- Blade Finish: Matte White
- Blades Made of Composite
- Blade Finish Method Type: Painted
- (1) 18W LED Bulb(s)
- Voltage: 120V
- Voltage Cycles: 60HZ
- Number of Blades: 9
- Blade Pitch (Degrees): 12
- Light Kit Included: Yes
- Color Temp: 3000
- CRI: 80
- Lumens: 1350
- Motor Type: DC
- Motor Size: DC-165L
- Motor Reversible: Yes
- Set of nine composite blades included
- CFM High: 11190
- CFM Medium High: 9787
- CFM Medium: 9073
- CFM Medium Low: 7866
- CFM Low: 6676
- CFM Mini: 5550
- Watts High: 32
- Watts Medium High: 22
- Watts Medium: 18
- Watts Medium Low: 12
- Watts Low: 8
- Watts Mini: 6
- Airflow Efficiency High: 348
- Airflow Efficiency Medium High: 445
- Airflow Efficiency Medium: 516
- Airflow Efficiency Medium Low: 656
- Airflow Efficiency Low: 804
- Airflow Efficiency Mini: 1009
- RPM High: 63
- RPM Medium High: 56
- RPM Medium: 52
- RPM Medium Low: 43
- RPM Low: 37
- RPM Mini: 31
- Current Draw High: 0.41
- Current Draw Medium High: 0.29
- Current Draw Medium: 0.24
- Current Draw Medium Low: 0.16
- Current Draw Low: 0.12
- Current Draw Mini: 0.08
- Included Control: TR39
- Included Control Type: Handheld
- Energy Star
- Safety Rating: UL/cUL
- Warranty: Limited Lifetime Warranty
- For Use in Wet Locations
Frequently asked
Is the bulb included? Yes, the fan includes an integrated 18W LED module, so no additional bulb is needed.
Is it dimmable, and what dimmer should I use? Yes, the LED light is dimmable. The included handheld remote (TR39) controls both fan speed and light dimming, so no wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is rated for wet locations, so it can be installed in covered outdoor areas, bathrooms, or other damp spaces. It is UL/cUL listed for wet locations.
What's the warranty? Fanimation offers a Limited Lifetime Warranty on this fan.
Does this fan work with sloped ceilings? The fan includes a canopy that can accommodate sloped ceilings up to a certain angle, but a longer downrod may be needed for steep slopes. Check the installation manual for specifics.
