Fanimation my AC Motor 54in Brushed Nickel | Ceiling Fan Motor with Remote | Indoor & Covered Outdoor Damp Rated | 15 x 15 x 12 in | Model A1BN
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description

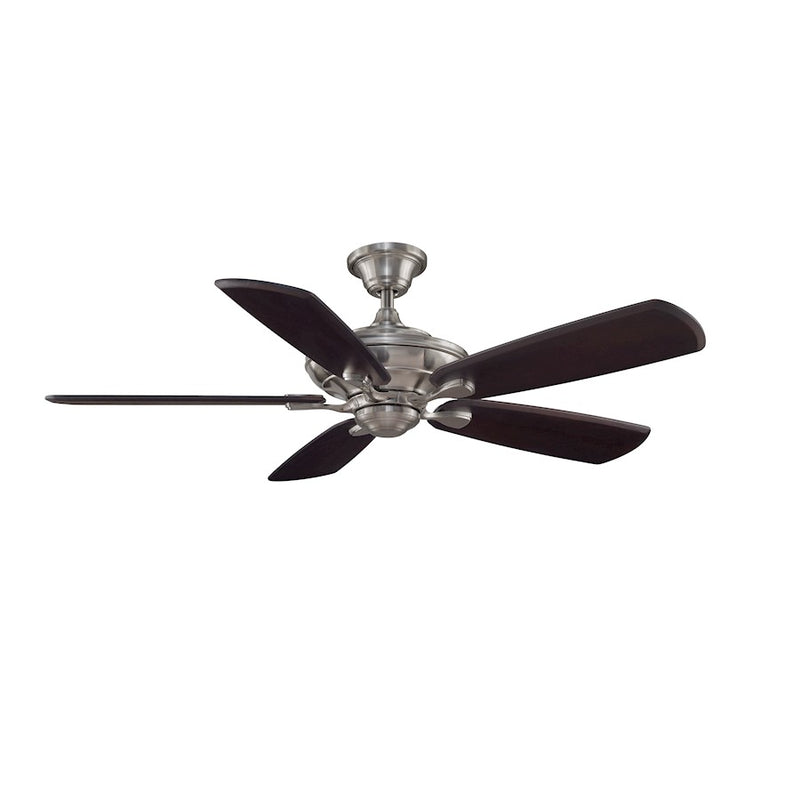

A brushed nickel AC ceiling fan motor from Fanimation's myFanimation mix-and-match system, designed for use with optional 54-inch blades and accessories.
This motor is the heart of a customizable ceiling fan. It features Fanimation's Hang Right and Fan Shield technologies to minimize vibration and noise, and its tri-mount design allows for flush, standard, or sloped ceiling installation. The included BTT9R Bluetooth handheld remote provides convenient control. This motor is Energy Star rated and damp-rated for use in covered outdoor areas.
Best for
- Custom ceiling fan builds where you select your own blades, fitters, and glass
- Covered patios, porches, and sunrooms where damp-rated motors are needed
- Rooms with sloped or vaulted ceilings, thanks to the tri-mount design
- Large living areas up to 400 square feet when paired with 54-inch blades
Not ideal for
- Uncovered outdoor areas exposed directly to rain or moisture
- Spaces with ceilings under 8 feet if you prefer a standard mount, though flush mount is available
Style and finish
The brushed nickel finish offers a sleek, modern look that pairs well with contemporary and transitional decor. The motor's clean lines and concealed screws keep the focus on your chosen blade and light kit designs.
Materials and care
The motor housing is finished in brushed nickel. Clean with a soft, dry cloth. Avoid using water or harsh chemicals. Care instructions not specified by manufacturer.
Sizing and fit
The motor measures 14.76 inches in diameter and 11.73 inches in height. It is designed for use with optional 54-inch blades. The canopy is 6.34 inches in diameter and 2.83 inches high. Ceiling-to-blade-edge distance is 12.78 inches. Lead wire is 54 inches long.
Specifications
- Finish: Brushed Nickel
- Voltage: 120V
- Voltage Cycles: 60HZ
- Number of Blades: 5
- Blade Pitch (Degrees): 14
- Light Kit Included: No
- Motor Type: AC
- Motor Size: 188 x 25
- Motor Reversible: Yes
- BTT9R Bluetooth hand-held remote included
- Optional 54" blades
- Damp Rated
- Optional exclusive lighting fitters and light kits
- Energy Star rated
- CFM High: 6235
- CFM Medium: 4036
- CFM Low: 1697
- Watts High: 75
- Watts Medium: 35
- Watts Low: 9
- Airflow Efficiency High: 83
- Airflow Efficiency Medium: 117
- Airflow Efficiency Low: 186
- RPM High: 176
- RPM Medium: 109
- RPM Low: 47
- Current Draw High: 0.63
- Current Draw Medium: 0.42
- Current Draw Low:0.21
- Included Control: BTT9R
- Included Control Type: Handheld
- Energy Star
- Safety Rating: UL/cUL
- Warranty: Limited Lifetime Warranty
- For Use in Damp Locations
- Overall Dimensions: 14.76"(L) x 14.76"(W) x 11.73"(H)
- Canopy Dimensions: 6.34"(Dia) x 2.83"(H)
- Housing Diameter: 12.98"
- Ceiling to Blade Edge: 12.78"
- Leadwire: 54"
- Item Weight: 23.5 lbs.
Frequently asked
What is it made of? The motor housing is made of metal with a brushed nickel finish.
Where in the home does this work best? This motor is damp-rated, so it works in covered outdoor areas like patios and porches, as well as indoor living spaces.
How is it mounted or assembled? The motor features a tri-mount design, allowing for flush, standard, or sloped ceiling installation. Blades and accessories are sold separately.
What's the warranty? The manufacturer offers a limited lifetime warranty.
Is the remote control included? Yes, a BTT9R Bluetooth handheld remote is included for convenient operation.
