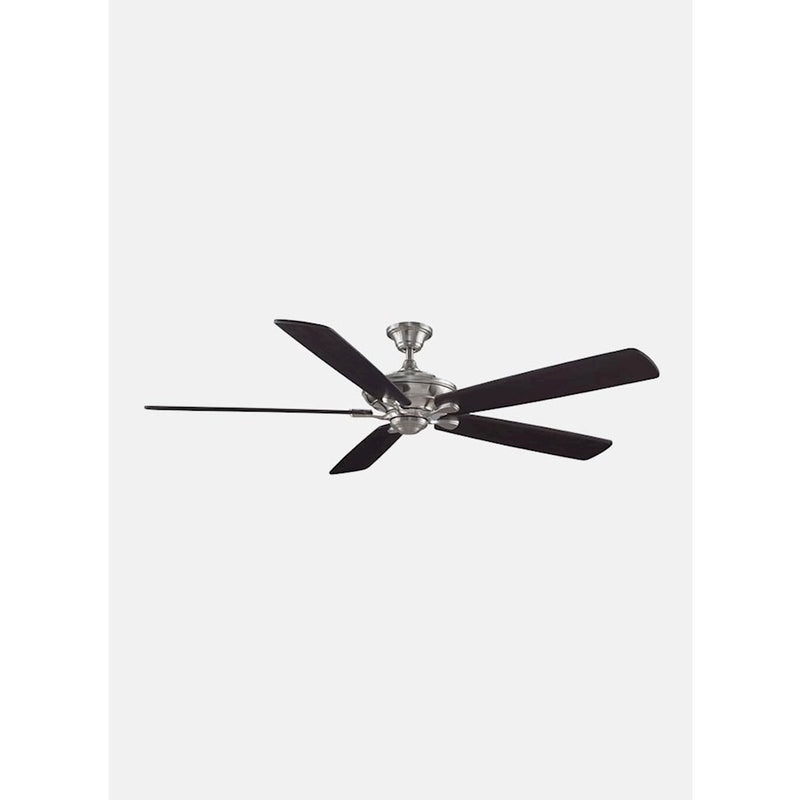

Fanimation my AC Motor 14.76in 5-Blade Ceiling Fan Motor | Brushed Nickel | Damp-Rated Indoor/Outdoor | 6823 CFM | Model C1BN
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description
A Fanimation my AC motor in brushed nickel, designed for use with 54" and 60" blades, ideal for building a custom ceiling fan for large indoor or covered outdoor spaces.
Part of the myFanimation mix-and-match system, this motor lets you select your own blades, fitters, and glass to create a fan that fits your style. It features Hang Rightâ„¢ and Fan Shieldâ„¢ technologies to minimize vibration and noise, and a tri-mount design for flush, standard, or slope installation. The brushed nickel finish complements a variety of decors.
Best for
- Large living rooms, great rooms, and covered patios (damp-rated)
- Custom fan builds with 54" or 60" blades
- Spaces with standard, sloped, or low ceilings (tri-mount)
- Energy-efficient cooling with Energy Star rating
Not ideal for
- Small rooms under 12x12 ft where a smaller fan would suffice
- Wet locations (shower stalls, uncovered outdoor areas)
- Those seeking a fan with an integrated light kit (light kit not included)
How bright is it?
This is a fan motor only; no light kit is included. Brightness depends on the light kit you add.
Light color and feel
Light color and feel depend on the light kit and bulbs you choose; this motor does not affect them.
Sizing and fit
Motor housing diameter is 12.98", overall dimensions 14.76"(L) x 14.76"(W) x 11.73"(H). Designed for 54" or 60" blades. Tri-mount allows flush, standard, or slope installation. Ceiling to blade edge is 12.78".
Specifications
- Finish: Brushed Nickel
- Voltage: 120V
- Voltage Cycles: 60HZ
- Number of Blades: 5
- Blade Pitch (Degrees): 14
- Light Kit Included: No
- Motor Type: AC
- Motor Size: 212 x 25
- Motor Reversible: Yes
- BTT9R Bluetooth hand-held remote included
- CFM High: 6823
- CFM Medium: 4612
- CFM Low: 2147
- Watts High: 73
- Watts Medium: 36
- Watts Low: 12
- Airflow Efficiency High: 94
- Airflow Efficiency Medium: 130
- Airflow Efficiency Low: 179
- RPM High: 98
- RPM Medium: 64
- RPM Low: 32
- Current Draw High: 0.6
- Current Draw Medium: 0.42
- Current Draw Low: 0.24
- Included Control: BTT9R
- Included Control Type: Handheld
- Energy Star
- Safety Rating: UL/cUL
- Warranty: Limited Lifetime Warranty
- For Use in Damp Locations
- Overall Dimensions: 14.76"(L) x 14.76"(W) x 11.73"(H)
- Canopy Dimensions: 6.34"(Dia) x 2.83"(H)
- Housing Diameter: 12.98"
- Ceiling to Blade Edge: 12.78"
- Leadwire: 80"
- Item Weight: 28.18 lbs.
Frequently asked
Is the bulb included? No, this is a fan motor only; light kit and bulbs are not included.
Is it dimmable, and what dimmer should I use? The fan speed is controlled via the included handheld remote; dimming depends on the light kit you add.
Can I install this in a bathroom or outdoors? Yes, this motor is rated for damp locations, suitable for covered patios and bathrooms with adequate ventilation.
What's the warranty? Limited Lifetime Warranty.
What blades can I use with this motor? This motor is designed for 54" and 60" blades from the myFanimation collection.
