Fanimation Wrap Custom 60in Smart Ceiling Fan with LED Light Kit | Matte White and Koa Composite Blades | Covered Patio | Model FPD8530MW-60K-LK

A 60-inch smart ceiling fan with an integrated LED light kit, designed for covered outdoor and indoor living spaces, finished in matte white with koa blades.

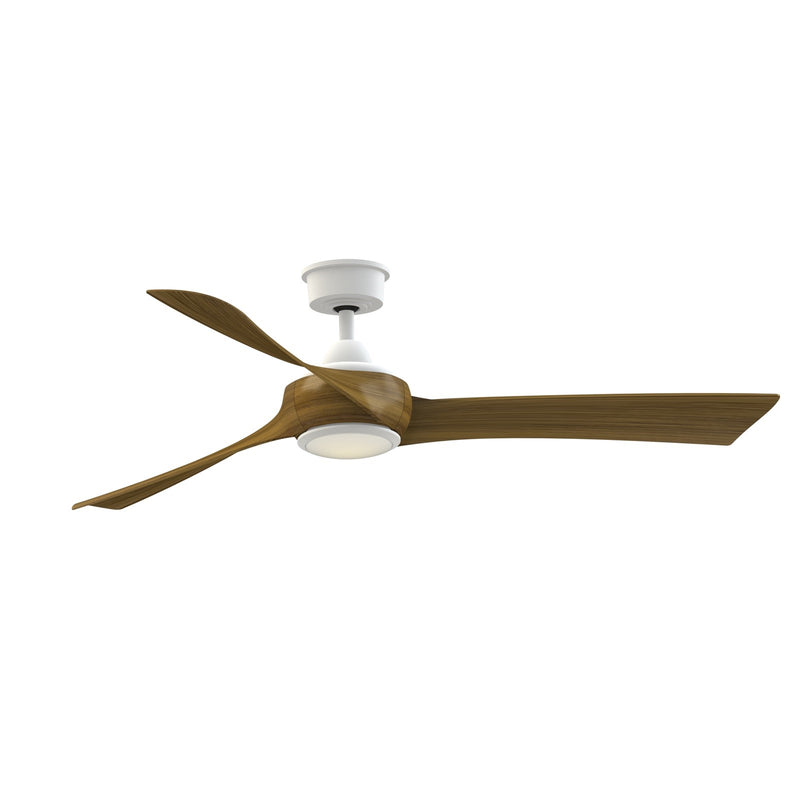

The Wrap Custom ceiling fan from Fanimation showcases a unique, elegant design with smoothly curved and twisted blades. The matte white housing and koa composite blades create a striking visual statement. This damp-rated, Energy Star certified fan is powered by a high-efficiency DC motor, delivering powerful yet quiet airflow. The integrated 18-watt LED light kit features CCT Select technology, letting you choose from warm white, bright white, or daylight. Control it all with the included handheld remote or the FanSync app via smart device or voice assistant.

Best for

• Covered patios, porches, and sunrooms where damp-rated fixtures are required

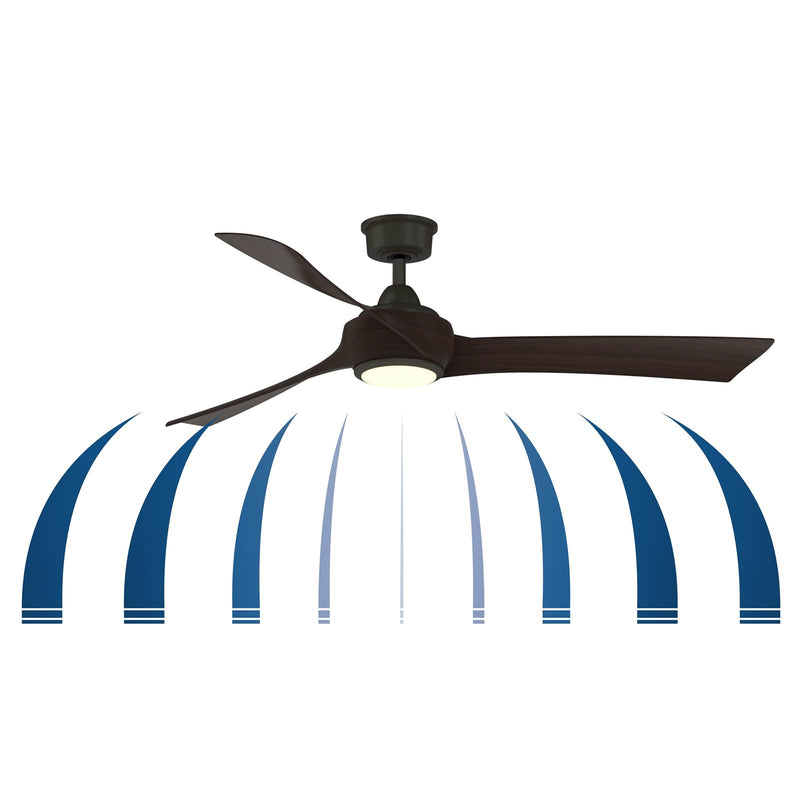

• Living rooms and great rooms up to 20x20 ft, providing high-volume airflow up to 7,141 CFM
• Bedrooms and home offices needing quiet, energy-efficient air circulation with 16 speeds
• Bathrooms and laundry rooms with high humidity, thanks to its damp-rated construction
• Smart home setups, with Wi-Fi control via the FanSync app and voice assistants

Not ideal for

• Areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
• Rooms with ceilings steeper than 27 degrees without additional mounting accessories
• Spaces where a light kit is not needed - consider the version without the light kit for a cleaner profile

How bright is it?

The integrated 18-watt LED module produces 1600 lumens - roughly equivalent to a 100-watt incandescent bulb. This provides ample ambient light for a medium to large room, and it's dimmable so you can adjust the brightness to suit the mood.

Light color and feel

With CCT Select technology, you can choose from 3000K (warm white), 4000K (bright white), or 5000K (daylight). The opal frosted shade diffuses light evenly, reducing glare. With a CRI of 90, colors appear vivid and accurate, making it suitable for spaces where true color rendering matters.

Sizing and fit

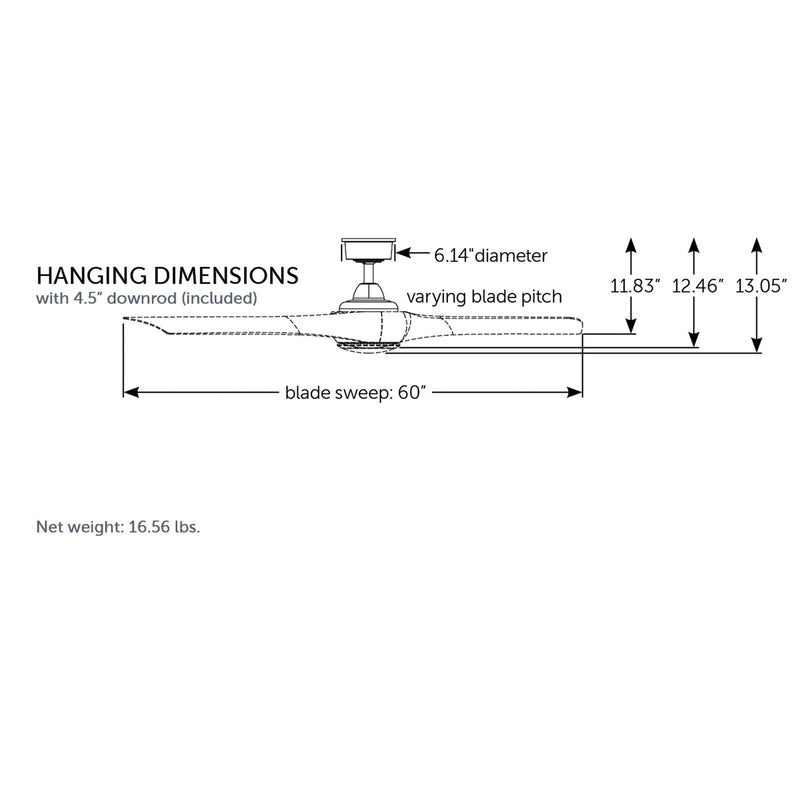

This fan has a 60-inch blade sweep and overall dimensions of 60 inches wide by 60 inches deep by 13.05 inches high (with light kit). It comes with a 4.5-inch downrod, and optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height. Designed for flat or slightly sloped ceilings up to 27 degrees.

Specifications

• Primary Finish: Matte White
• Blade Material: Composite
• Blade Finish: Koa
• Shade Finish: Opal Frosted
• Collection: Wrap Custom
• Blade Sweep: 60"
• Number of Blades: 3
• Blade Pitch: Varied°
• Motor Type: DC
• Motor Size: 158 X 22
• Motor Reversible: True
• Number of Speeds: 16
• Reverse Switch Location: Control
• Light Kit Included: True
• Cap Included: True
• Included Control: TR305
• Control Type: Handheld
• 1 Bulb(s)
• Bulb Type: 18W LED Module
• Bulb Base: Connector Pin
• Bulb Max Wattage: 18W
• Color Temperature: 3000/4000/5000K
• CRI: 90
• Lumens: 1600
• Voltage: 120V
• Avg CFM: 5114
• CFM High: 7141
• Avg Energy Use: 24W
• Max Slope: 27°
• Location Rating: Damp
• Safety Rating: UL/cUL Listed
• Energy Star: True
• Warranty: Limited Lifetime Warranty

Frequently asked

Is the bulb included? Yes, the integrated 18W LED module is included.

Is it dimmable, and what dimmer should I use? Yes, the light is dimmable. Use the included TR305 remote or the FanSync app to adjust light levels.

Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, and other humid locations. It should not be directly exposed to rain or water.

What's the warranty? Limited Lifetime Warranty for the original purchaser, covering the motor.

Can I control this fan with voice assistants? Yes, the FanSync app works with Amazon Alexa and Google Assistant for voice control.
