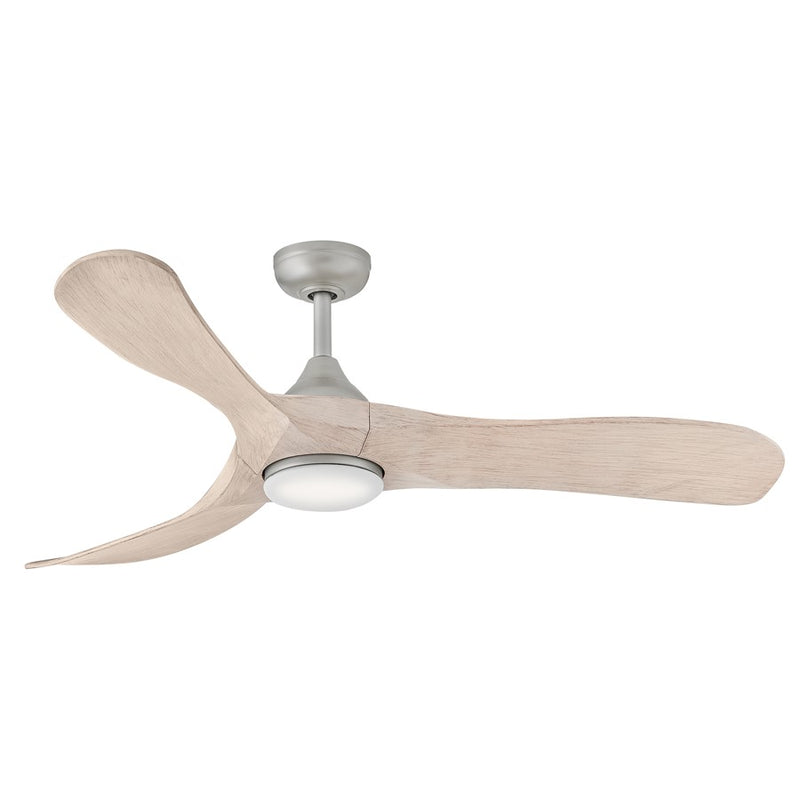

Hinkley Swell Illuminated 56in LED Smart Ceiling Fan | Modern Brushed Nickel Steel and Bleached Ashwood Wood Blades | Covered Patio | Model 903856FBN-LDD

A 56-inch LED smart ceiling fan with brushed nickel finish and bleached ashwood blades, designed for covered patios and living rooms with damp-rated durability.

The Swell Illuminated fan combines a bold, modern silhouette with integrated LED lighting and a 6-speed DC motor. The brushed nickel steel body and bleached ashwood blades create a contemporary statement, while the WiFi-enabled HIRO control and Hinkley app offer convenient smart home integration. Damp-rated for covered outdoor areas, bathrooms, and sunrooms.

Best for

• Covered patios, porches, and sunrooms where damp-rated fixtures are required
• Living rooms and great rooms with ceilings at least 8 ft high
• Bedrooms needing a quiet, energy-efficient fan with dimmable LED light
• Spaces where smart home control via WiFi and app is desired

Not ideal for

• Uncovered outdoor areas exposed to rain or direct water spray
• Rooms with ceilings under 7 ft (minimum installation height is 7 ft from floor)
• Spaces requiring a fan with a light kit that can be removed (light kit is integrated)

How bright is it?

The integrated LED produces 1320 lumens — comparable to a 100W incandescent bulb, providing ample ambient light for medium to large rooms. Dimmable with a CL-type dimmer for adjustable brightness.

Light color and feel

3000K warm dim with a CRI of 90 — a soft, warm white that flatters skin tones and interior finishes. The warm dim feature allows the color temperature to shift warmer as it dims, mimicking incandescent behavior.

Sizing and fit

The fan measures 56 inches in diameter with a 15-inch overall height (ceiling to bottom). Includes a 6-inch down rod; compatible with sloped ceilings up to 20 degrees. Minimum installation height is 7 ft from the floor.

Specifications

• Collection: Swell Illuminated
• Finish: Brushed Nickel
• Material: Steel
• Blade Finish: Bleached Ashwood
• Blade Material: Wood
• Glass: Etched Opal
• Style: Modern
• Light Source: Integrated LED (16W)
• Bulb Color Temp: 3000K Warm Dim
• Bulb Lumens: 1320
• Bulb CRI: 90
• Bulb Average Hours: 50000
• Voltage: 120V
• Dimmable: Yes (CL Type Dimmer)
• Motor Type: DC
• Fan Speed: 6 Speed
• Reversing Control: Yes
• Blade Count: 3
• Blade Sweep: 56 in
• Blade Pitch: 14 degrees
• Light Kit Included: Yes
• Receiver Included: Yes
• Fan Control Included: HIRO Remote (6-speed)
• WiFi Enabled: Yes
• Slope Degree: 20
• Ceiling to Blade Height: 10.75 in
• Canopy Dimensions: 6 in Dia. x 2.25 in H
• Safety Rating: C-US Listed, Damp Location
• Weight: 28.6 lbs

Frequently asked

Is the bulb included? Yes, the integrated LED is built-in and included.

Is it dimmable, and what dimmer should I use? Yes, dimmable with a CL-type dimmer (SSL7A).

Can I install this in a bathroom or outdoors? Yes, it is damp-rated for covered outdoor areas, bathrooms, garages, and sunrooms. Not for wet locations.

What's the warranty? LED components carry a 5-year limited warranty; motor carries a lifetime warranty.

Does it work with sloped ceilings? Yes, compatible with sloped ceilings up to 20 degrees.
