Hinkley Swell Illuminated 56in LED Smart Ceiling Fan | Modern Heritage Brass Steel and Natural Wood Blades with Etched Opal Glass | Model 903856FHB-LDD
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description

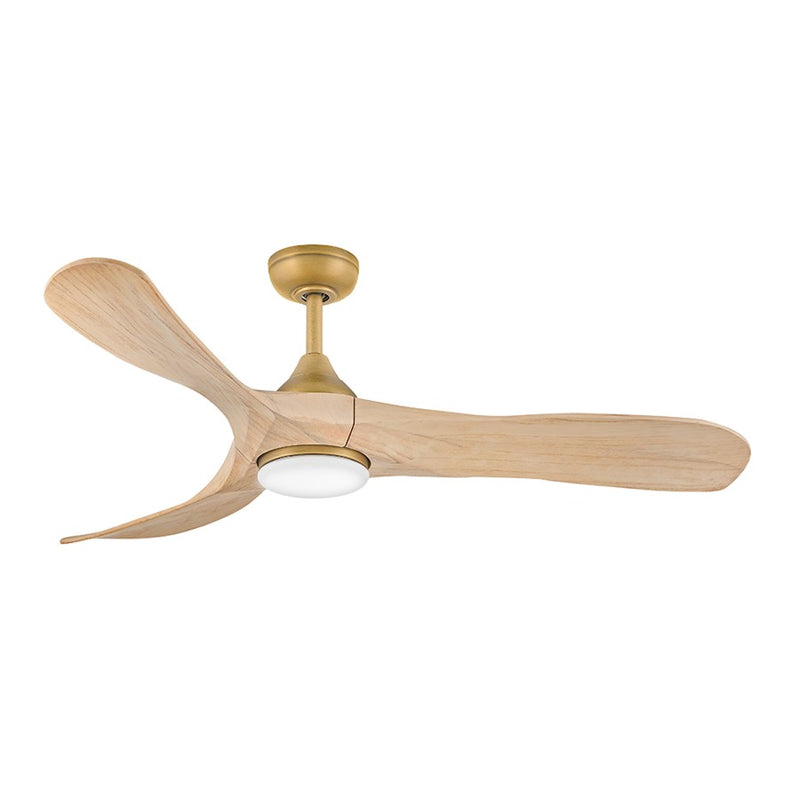

A 56-inch LED smart ceiling fan with natural wood blades and integrated warm-dim light, designed for covered patios and contemporary indoor spaces.

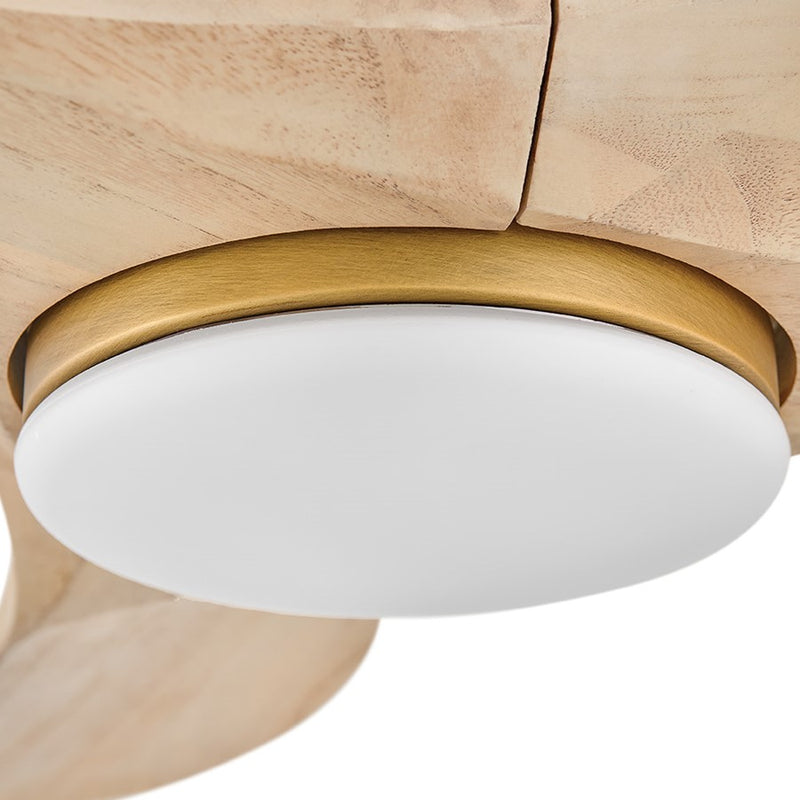

The Swell Illuminated fan combines a bold, modern silhouette with practical smart-home features. Its Heritage Brass steel housing and natural wood blades create a warm, organic contrast, while the etched opal glass diffuses the integrated 16W LED module. The 6-speed DC motor is WiFi-enabled and works with the Hinkley app or included HIRO control, making it easy to adjust from anywhere.
Best for
- Covered patios, porches, and sunrooms rated for damp locations
- Open-plan living areas with ceilings 8 ft or higher
- Modern and transitional interiors where a sculptural fan serves as a focal point
- Spaces needing quiet, energy-efficient airflow with integrated warm-dim lighting
- Smart-home setups wanting WiFi control and app scheduling
Not ideal for
- Indoor bathrooms with direct shower spray (damp-rated, not wet-rated)
- Rooms with ceilings under 7 ft (minimum installation height is 7 ft from floor)
- Spaces where blades must be reversible (blades are one-sided natural wood)
How bright is it?
The integrated LED produces 1320 lumens — comparable to a 100W incandescent bulb, bright enough to illuminate a 12x12 ft room as primary light. The warm-dim feature lets you lower brightness smoothly without color shift.
Light color and feel
3000K warm white with a 90 CRI — a soft, golden tone that flatters skin and wood tones. Colors appear vivid and natural, ideal for living areas. Fully dimmable with a CL-type dimmer (SSL7A).
Sizing and fit
The fan measures 56 x 56 x 15 in with a blade sweep of 56 in and a 10-degree blade pitch. It includes a 6-inch down rod; other lengths are sold separately. The canopy is 6 in diameter and 2.25 in deep. Suitable for sloped ceilings up to 20 degrees. Minimum ceiling height for installation is 7 ft.
Specifications
- Part of the Swell Illuminated Collection
- Finish: Heritage Brass
- Material: Steel
- Blade Finish: Natural
- Blade Material: Wood
- Glass: Etched Opal
- Style: Modern
- Light Source: Integrated LED, 16W
- Bulb Included: Yes
- Bulb Color Temp: 3000K Warm Dim
- Bulb Average Hours: 50,000
- Bulb Lumens: 1320
- Bulb CRI: 90
- Voltage: 120V
- Dimmable: Yes - CL Type Dimmer (SSL7A)
- Motor Type: DC, 6-speed
- Reversing Control: Yes
- WiFi Control Included: Yes
- Control Type: HIRO Control - 6 Speed Reversing
- Number of Blades: 3
- Blade Sweep: 56 in
- Blade Pitch: 10 degrees
- Blades Reversible: No
- Light Kit Included: Yes
- Receiver Included: Yes
- Fan Control Included: Yes
- Sloped Ceiling Adaptable: Yes, up to 20 degrees
- Ceiling to Blade Height: 10.75 in
- Certification: ETL, C-US Listed
- Safety Rating: Damp Location
- Overall Dimensions: 56 x 56 x 15 in
- Canopy Depth: 2.25 in
- Canopy Dimensions: 6 in Dia.
- Item Weight: 16.97 lbs
- Eco-Friendly Packaging
Frequently asked
Is the light bulb included? Yes, the integrated LED module is built-in and included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable with a CL-type dimmer (SSL7A).
Can I install this in a bathroom or outdoors? It is rated for damp locations, so it can be used in covered outdoor areas or bathrooms without direct water exposure, but not in wet locations.
What's the warranty? Motor carries a lifetime warranty; blades, controls, switches, capacitors, and hardware carry a 1-year warranty.
Does it work with a sloped ceiling? Yes, it is adaptable for sloped ceilings up to 20 degrees.
