Fanimation Wrap Custom 56in 3-Blade Smart Ceiling Fan | Matte White and Weathered Wood Composite | Covered Patio & Bedroom | Model FPD8530MW-56WE-LK

A 56-inch smart ceiling fan with an integrated LED light kit, designed for covered outdoor and indoor spaces, finished in matte white with weathered wood blades.

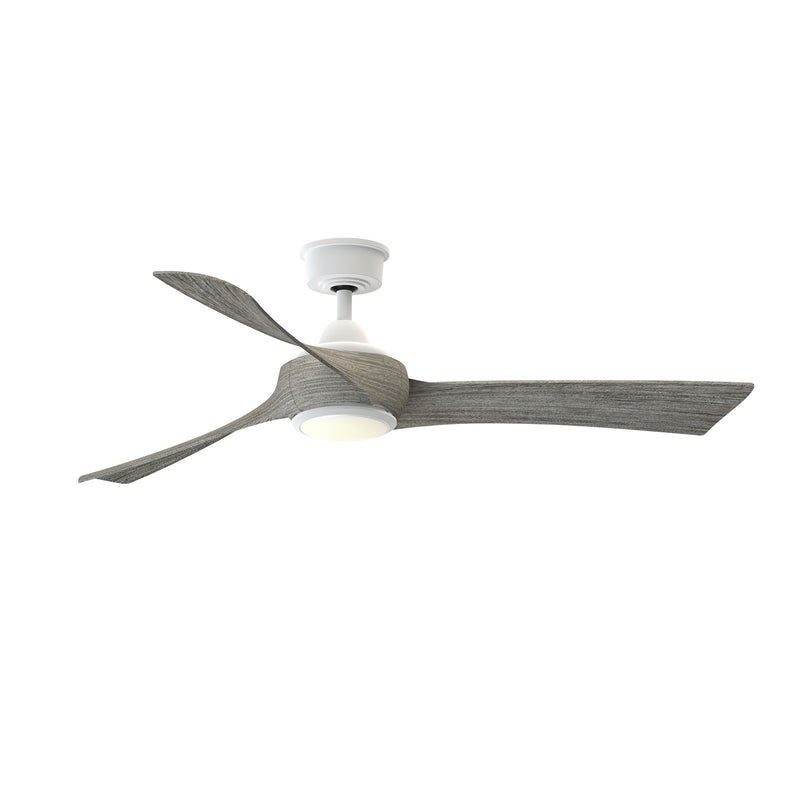

The Wrap Custom ceiling fan from Fanimation makes a striking statement with its smoothly curved and twisted blades that seem to wrap around the motor housing. The matte white finish pairs beautifully with the weathered wood composite blades, creating a contemporary look that works in both modern and transitional settings. This damp-rated fan is Energy Star certified and features a high-efficiency DC motor that delivers powerful airflow while remaining quiet and energy efficient.

Best for

• Covered patios and porches, where the damp-rated motor and moisture-resistant blades handle humidity without direct rain exposure
• Sunrooms and three-season rooms that need both air movement and adjustable lighting
• Primary bedrooms and large living areas up to 18x20 ft, with the 56-inch blade sweep providing ample circulation
• Bathrooms and laundry rooms with high ceilings, where the integrated light kit adds functional illumination
• Smart home setups, with Wi-Fi control via the FanSync app and voice assistant compatibility

Not ideal for

• Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
• Rooms with ceilings under 8 ft, as the 4.5-inch downrod and 13-inch overall height may make the fan hang too low
• Spaces that need a light kit with a single color temperature - the CCT Select feature cycles through 3000K, 4000K, and 5000K

How bright is it?

The integrated 18-watt LED module produces 1600 lumens - roughly equivalent to a 100-watt incandescent bulb. This is bright enough to serve as the primary light source for a medium-sized room, though you may want additional task lighting for detailed work.

Light color and feel

With CCT Select technology, you can choose from 3000K warm white, 4000K bright white, or 5000K daylight. The 90 CRI rating means colors appear vivid and accurate, making this a good choice for spaces where you want to showcase decor. The light is dimmable, and the opal frosted shade diffuses light evenly to reduce glare.

Sizing and fit

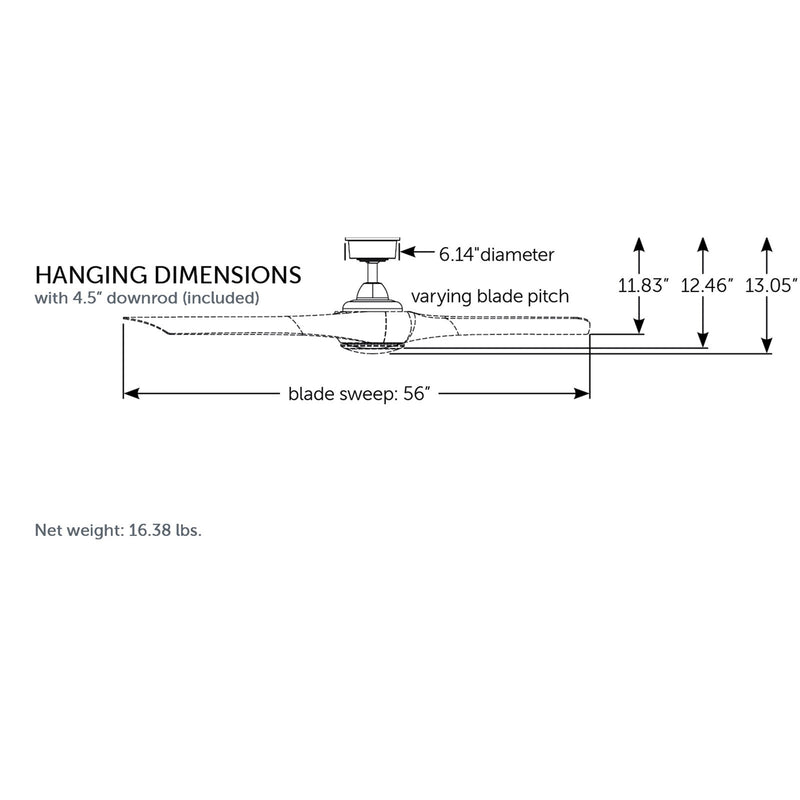

This fan measures 56 inches in diameter and 13.05 inches from ceiling to bottom with the light kit. It comes with a 4.5-inch downrod, and optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height. The fan is designed for flat or slightly sloped ceilings up to 27 degrees.

Specifications

• Primary Finish: Matte White
• Blade Material: Composite
• Blade Finish: Weathered Wood
• Shade Finish: Opal Frosted
• Collection: Wrap Custom
• Blade Sweep: 56"
• Number of Blades: 3
• Blade Pitch: Varied°
• Motor Type: DC
• Motor Size: 158 X 22
• Motor Reversible: True
• Number of Speeds: 16
• Reverse Switch Location: Control
• Light Kit Included: True
• Cap Included: True
• Included Control: TR305
• Control Type: Handheld
• 1 Bulb(s)
• Bulb Type: 18W LED Module
• Bulb Base: Connector Pin
• Bulb Max Wattage: 18W
• Color Temperature: 3000/4000/5000K
• CRI: 90
• Lumens: 1600
• Voltage: 120V
• Avg CFM: 5011
• CFM High: 6814
• Avg Energy Use: 23W
• Max Slope: 27°
• Location Rating: Damp
• Safety Rating: UL/cUL Listed
• Energy Star: True
• Warranty: Limited Lifetime Warranty

Frequently asked

Is the bulb included? Yes, the integrated 18W LED module is included and cannot be replaced separately.

Is it dimmable, and what dimmer should I use? Yes, the light is dimmable. Use the included TR305 remote or the FanSync app to adjust brightness; no wall dimmer is required.

Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms and covered outdoor areas. It should not be directly exposed to rain or water.

What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.

How does the CCT Select technology work? The CCT Select feature lets you cycle through three color temperatures (3000K, 4000K, 5000K) using the remote or app, so you can adjust the light from warm to cool to match your mood or activity.
