Fanimation Wrap Custom 84in 3-Blade DC Ceiling Fan with LED Light | Brushed Nickel and Natural Composite | Covered Patio | Model FPD8531BN-84N-LK
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description

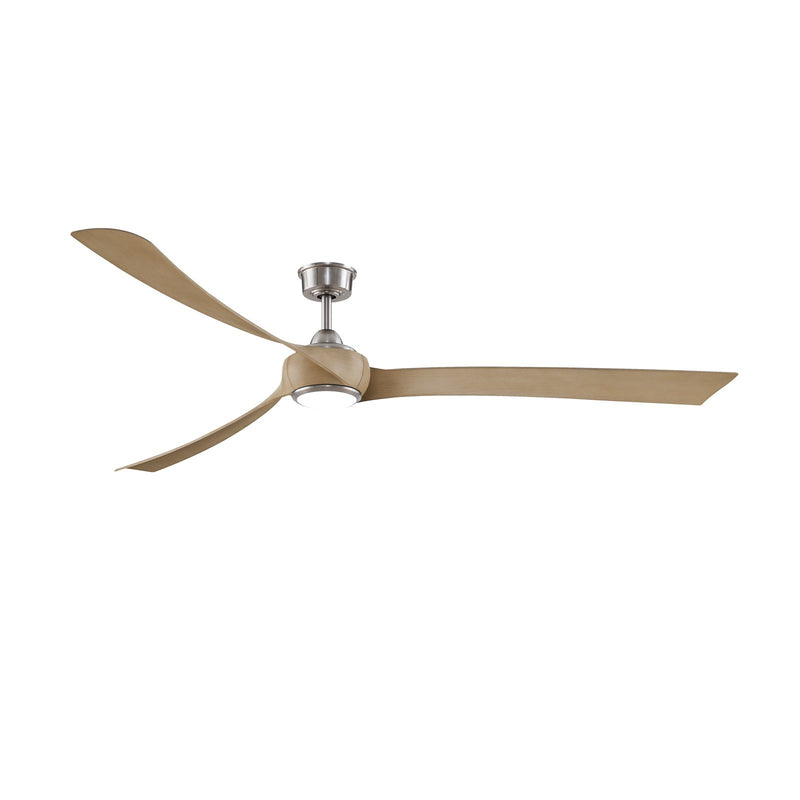

A damp-rated 84-inch smart ceiling fan with an integrated LED light kit, finished in brushed nickel with natural composite blades—ideal for covered patios and large living spaces.
The Wrap Custom with Light Kit combines a sculptural, twisted-blade design with the convenience of built-in lighting. The integrated 18-watt LED module offers CCT Select technology, letting you switch between warm white, bright white, or daylight (3000K/4000K/5000K) to match the mood. Powered by a quiet DC motor that moves up to 11,206 CFM, this fan keeps large rooms and covered outdoor areas comfortable year-round.
Best for
- Covered patios, porches, and sunrooms needing both airflow and light
- Great rooms and open-plan living areas 20x20 ft or larger
- Bathrooms and laundry rooms with high humidity (damp-rated, not for direct rain)
- Smart-home setups—control fan and light via the fanSync app or voice assistant
- High ceilings up to 27° slope, using optional downrods up to 72 in
Not ideal for
- Spaces directly exposed to rain or water—this is damp-rated, not wet-rated
- Small rooms under 12x12 ft where an 84-inch sweep would overwhelm the space
- Anyone who prefers a fan without a light kit—this version includes one
How bright is it?
The integrated LED light kit produces 1600 lumens—comparable to a 100W incandescent bulb—enough to illuminate a large living area or covered patio. It's dimmable via the remote or app.
Light color and feel
CCT Select technology offers three color temperatures: 3000K warm white (soft, golden), 4000K bright white (neutral, crisp), and 5000K daylight (cool, energizing). With a 90 CRI, colors render accurately, making it suitable for art or task areas.
Sizing and fit

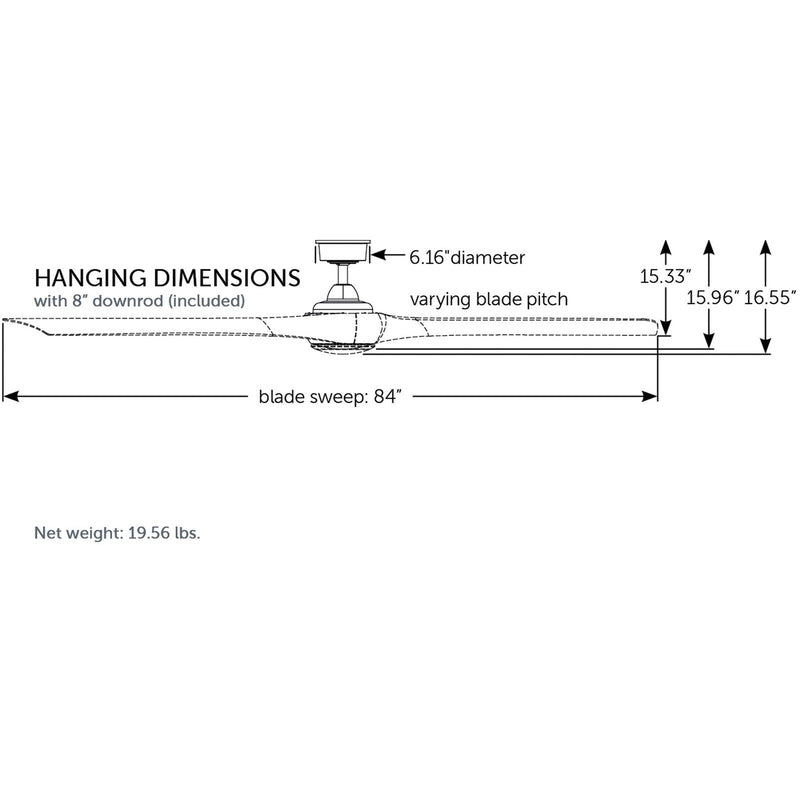

Overall dimensions are 84 in wide by 84 in deep by 16.55 in high (from ceiling to bottom with light kit). The fan comes with an 8-inch downrod; optional downrods up to 72 inches are available to achieve the optimal 7–9 ft hanging height. Designed for flat or slightly sloped ceilings up to 27°.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Composite
- Blade Finish: Natural
- Shade Finish: Opal Frosted
- Collection: Wrap Custom
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: Varied°
- Motor Type: DC
- Motor Size: 153 X 25
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: 18W LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000/4000/5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8762
- CFM High: 11206
- Avg Energy Use: 21W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated 18W LED module is included and not replaceable.
Is it dimmable, and what dimmer should I use? The light is dimmable via the included TR305 remote or the fanSync app. The fan speed is also controlled through these, not a wall dimmer.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, porches, and sunrooms. It should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Can I change the light color? Yes, use the CCT Select feature on the remote or app to switch between 3000K, 4000K, and 5000K.
