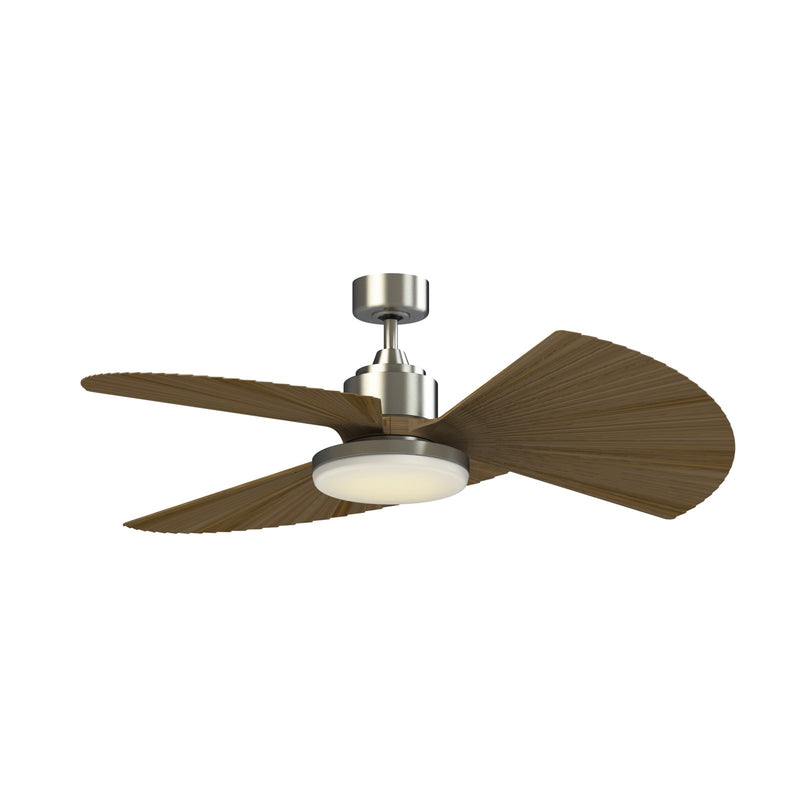

Fanimation TriAire Custom 52in 1-Light Ceiling Fan | Brushed Nickel and Koa Composite Blades | Covered Patio & Living | Model FPD8514BN-52PKW-12LK

A 52-inch smart ceiling fan with an integrated 12-inch LED light kit, designed for covered outdoor and indoor spaces, finished in brushed nickel with Koa pleated blades.

The TriAire Custom ceiling fan from Fanimation blends modern minimalism with high performance. Its three slender Koa-finished composite blades and brushed nickel motor housing give it a clean, contemporary look that suits both covered patios and living rooms. Powered by a quiet DC motor with 16 speeds, it delivers strong airflow up to 6,100 CFM. The integrated LED light kit offers CCT Select technology, letting you choose from five color temperatures, and the included remote and Wi-Fi connectivity make control effortless.

Best for

• Covered patios, porches, and sunrooms where damp-rated fixtures are required
• Living rooms and great rooms up to 20x20 ft needing both airflow and ambient light
• Bedrooms and home offices where quiet operation and smart control are valued
• Spaces with ceilings up to 27° slope, using the included 4.5-inch downrod
• Year-round comfort with a reversible motor for summer and winter airflow

Not ideal for

• Areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
• Rooms with ceilings under 8 ft if you prefer a flush mount - a downrod is required
• Those seeking a fan without a light kit - this model includes an integrated light

How bright is it?

The integrated LED module produces 3600 lumens - roughly equivalent to a 250W incandescent bulb. This is bright enough to serve as the primary light source in a medium-sized living room or covered patio, and it's dimmable to create softer ambient lighting when desired.

Light color and feel

With CCT Select technology, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), or 5000K (daylight). This flexibility lets you match the light to your activity and mood. The high CRI of 90 ensures colors appear vibrant and accurate, ideal for living spaces and outdoor entertaining areas.

Sizing and fit

This fan has a 52-inch blade sweep and overall dimensions of 52 inches wide by 52 inches deep by 15.93 inches high (with light kit). It comes with a 4.5-inch downrod, and optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height. The canopy is 5.75 inches in diameter, and the housing is 7.09 inches. It fits rooms of 12x12 ft and larger, and works on flat or sloped ceilings up to 27°.

Specifications

• Primary Finish: Brushed Nickel
• Blade Material: Composite
• Blade Finish: Koa
• Shade Finish: Opal Frosted
• Collection: TriAire Custom
• Blade Sweep: 52"
• Number of Blades: 3
• Blade Pitch: 14°
• Motor Type: DC
• Motor Size: 158 X 22
• Motor Reversible: True
• Number of Speeds: 16
• Reverse Switch Location: Control
• Light Kit Included: True
• Included Control: TR305
• Control Type: Handheld
• 1 Bulb(s)
• Bulb Type: LED Module
• Bulb Base: Connector Pin
• Bulb Max Wattage: 40W
• Color Temperature: 2700, 3000, 3500, 4000, 5000K
• CRI: 90
• Lumens: 3600
• Voltage: 120V
• Avg CFM: 3696
• CFM High: 6100
• Avg Energy Use: 12W
• Max Slope: 27°
• Location Rating: Damp
• Safety Rating: UL Only Listed
• Energy Star: True
• Warranty: Limited Lifetime Warranty

Frequently asked

Is the bulb included? Yes, the integrated LED module is included and rated for 40W.

Is it dimmable, and what dimmer should I use? Yes, the light is dimmable. Use the included TR305 remote or the fanSync app to adjust light levels.

Can I install this in a bathroom or outdoors? This fan is damp-rated, so it's suitable for covered outdoor areas and bathrooms with humidity, but it should not be directly exposed to rain or water.

What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.

How does the Koa blade finish look? The Koa finish mimics the rich, dark wood of Koa trees, adding a warm, natural accent to the brushed nickel motor.
