Nuvo Lighting 65-748 20W LED Small Wall Pack | Utility Bronze Die-Cast Aluminum | Exterior Building & Commercial Illumination | 3 x 6 x 9 | Model 65-748
Free returns on all eligible orders
You have 30 days to request a return. All open box or clearance items are final sale.
Description

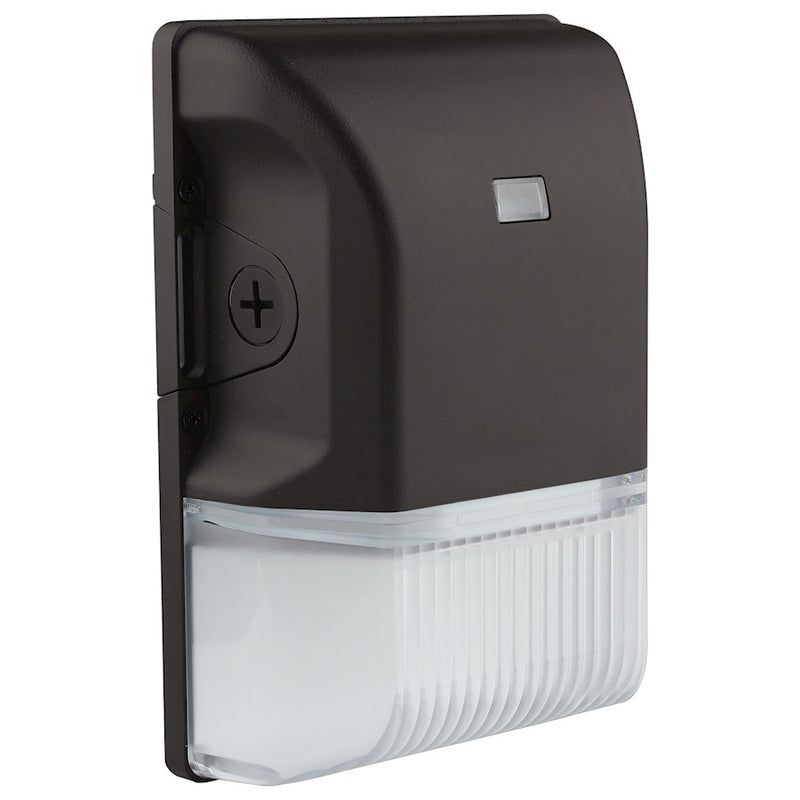

A 20W LED wall pack for commercial exterior illumination, featuring CCT selectable color temperatures and a durable bronze die-cast aluminum body.
The Nuvo 65-748 LED Small Wall Pack combines energy efficiency with versatility. Its CCT selectable technology lets you choose between 3000K, 4000K, and 5000K to match your lighting needs. The built-in photocell sensor automatically turns the light on at dusk and off at dawn, while the IP65 wet rating ensures reliable performance in all weather conditions. Ideal for building perimeters, parking areas, and entryways.
Best for

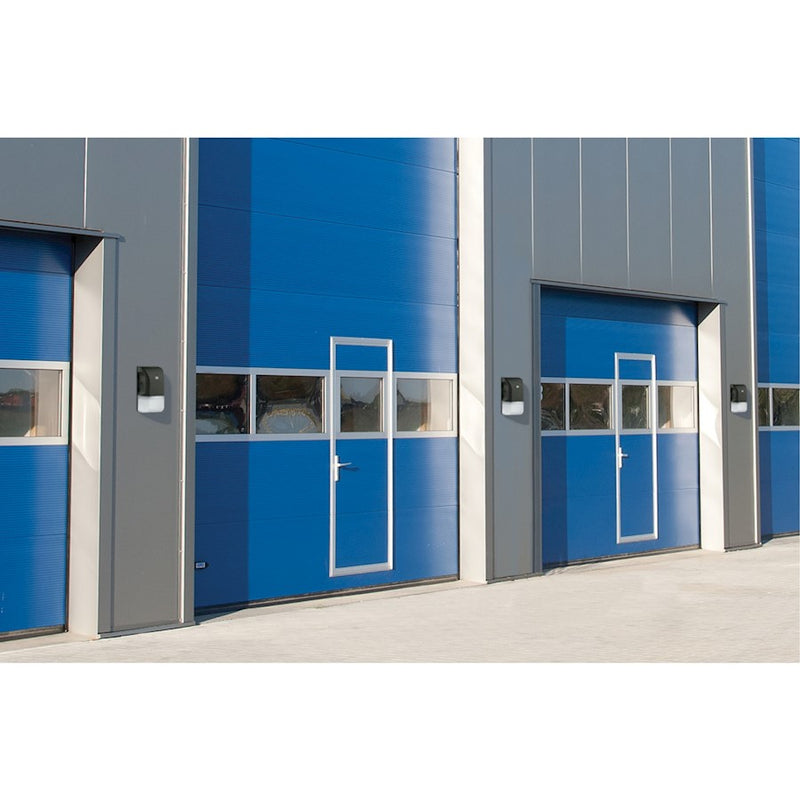

- Commercial building exteriors requiring reliable, energy-efficient illumination
- Parking lots, loading docks, and walkways needing dusk-to-dawn automatic operation
- Entryways and security lighting where adjustable color temperature is beneficial
- Wet locations such as uncovered outdoor areas, thanks to IP65 rating
- Retrofit projects replacing older wall packs with a maintenance-free LED solution
Not ideal for
- Indoor residential accent lighting – this is a utility-grade fixture for outdoor use
- Spaces requiring a decorative or stylish appearance – the design is purely functional
- Areas where a replaceable light source is needed – the LED is integrated and non-replaceable
How bright is it?
20W LED output – approximately 2000-2500 lumens (exact lumen output not specified by manufacturer), comparable to a 150W incandescent. Sufficient for security and area lighting, but not for illuminating large open spaces alone.
Light color and feel
CCT selectable: choose 3000K warm white (soft, inviting), 4000K cool white (neutral, crisp), or 5000K daylight (bright, alert). 0-10V dimmable for adjustable brightness. CRI not specified.
Sizing and fit

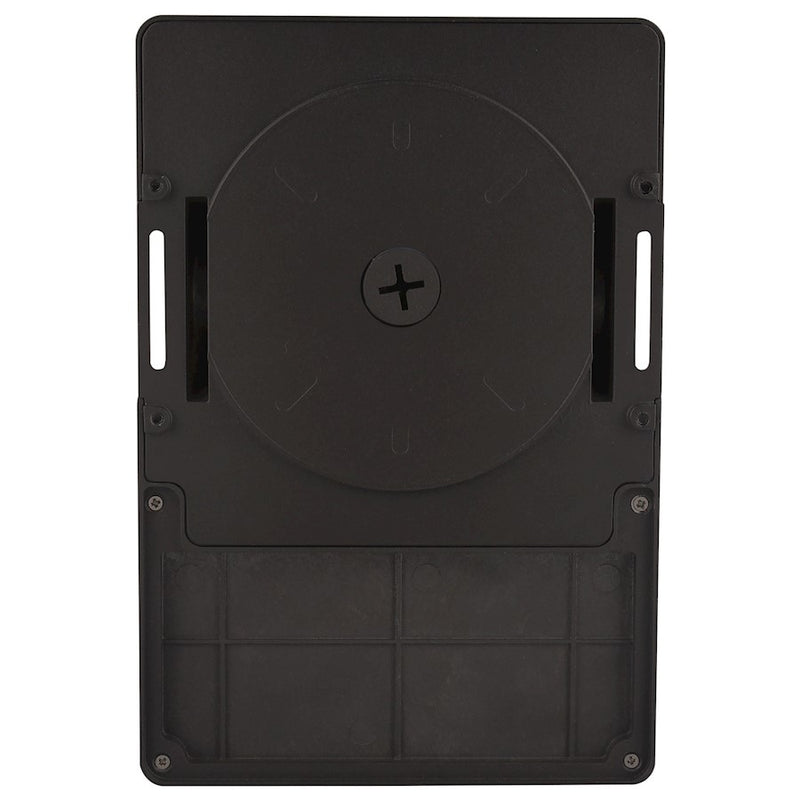

Dimensions: 3.09 in L x 5.81 in W x 8.59 in H. Compact size fits standard wall pack mounting boxes. Suitable for mounting heights of 8-12 ft for optimal light distribution.
Specifications
- Finish: Bronze
- Style: Utility
- Voltage: 120V-277V
- CCT Selectable
- 0-10V Dimmable
- Maintenance free - no bulb to change
- Die-cast aluminum body
- IP65, Wet rated for outdoor use
- UV Stabilized Powder Coated Finish
- ADA: Yes
- Assembly Required: Yes
- Dimmable: True
- Replaceable Light Source: No
- Overall Dimensions: 3.09"(L) x 5.81"(W) x 8.59"(H)
- Item Weight: 1.98 lbs.
Frequently asked
Is the bulb included? The light source is integrated LED; no bulb to change.
Is it dimmable, and what dimmer should I use? Yes, 0-10V dimmable. Use a compatible 0-10V dimmer (not standard TRIAC).
Can I install this in a bathroom or outdoors? Yes, IP65 wet rated for outdoor use. Suitable for uncovered exterior locations.
What's the warranty? Warranty not specified by manufacturer.
How do I select the color temperature? A switch on the fixture allows you to choose 3000K, 4000K, or 5000K before installation.
