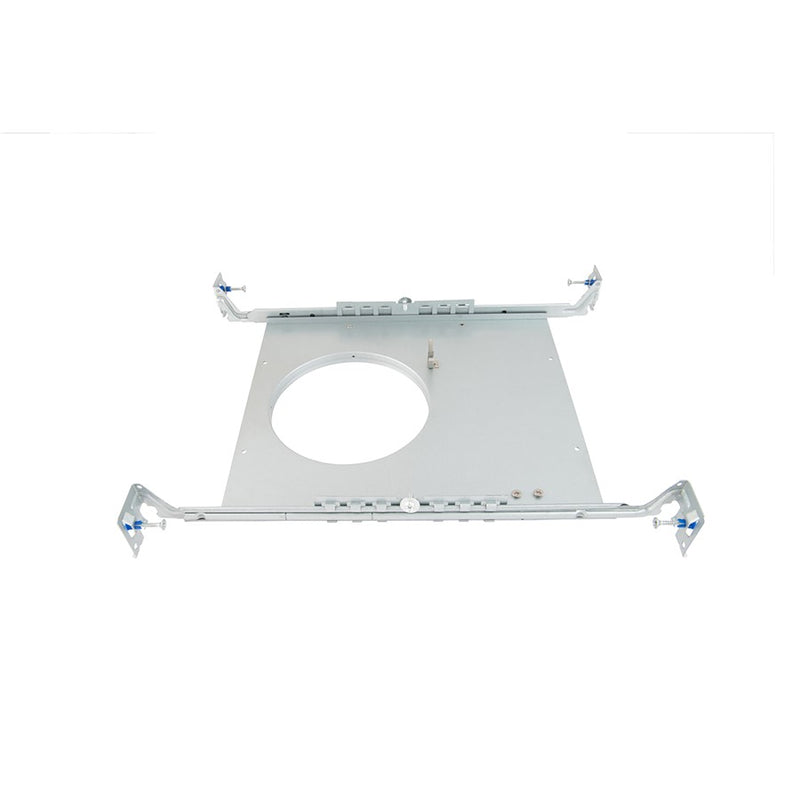

WAC Lighting Blaze 6" LED New Construction Frame-in Kit, Gray
by WAC Lighting
$34.99
SKU WAR6DRDN-FRAME
Blaze is a powerful high efficiency 6in recessed downlight with an easy connect electrical box for simple installation. The universal input driver (120v-240v-277v) is fully concealed inside the electrical box and dimmable to 5% using a TRIAC or ELV dimmer. Features a 5-CCT color temperature selectable switch with options ranging from 2700K-3000K-3500K-4000K-5000K. Blaze is available in round or square as new construction or remodel with all options IC-Rated and Airtight. A frame-in kit is included with the new construction version, but can also be purchased separately (R6DRDN-FRAME). Wet location listing for indoor and outdoor applications or in showers.
- Part of the Blaze Collection
- Finish: Gray
- Made of Steel
- Style: Functional
- Blaze 6in LED New Construction Frame-in Kit
- Construction: Die-cast Aluminum with 20-gauge Cold Rolled Steel Driver Box. Blaze is available in round or square as new construction or remodel with all options IC-Rated and Airtight. A frame-in kit is included with the new construction version, but can also be purchased separately (R6DRDN-FRAME).
- Metal Conduit with Quick Connect to electrical box with driver allows for an easy installation.
- Installs into ceiling thickness between 0.5in and 1.5in. Universal input driver 120V-220V-277V.
- Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC dimmer. Dims down 10% with ELV dimmers, and 5% with TRIAC dimmers.
- High Powered Replaceable LED Module CRI: 90, Rated Hours: 50000, 5-CCT Selectable Color Temperature Range: 2700K, 3000K, 3500K, 4000K, 5000K.
- Mounting: Ceiling
- Interior/Exterior: Interior
- Hardwired/Portable: Hardwired
- Safety Rating: ETL/CETL/CSA CAN/Energy Star/Title 24 JA8-2016/Title 20/ADA Listed
- For Use in Dry Locations
- Warranty Info: 5 Years Functional, 2 Years Finish
Overall Dimensions: 12.4"(L) x 2.36"(W) x 15.35"(H)
Item Weight: 1.94 lbs.
