WAC Basics/Gemini 24VDC Flex X Connector, Black

Build an economical and versatile layered LED Tape light system using Basics or Gemini. Basics & Gemini LED tape lights are easy-to-setup with seamless and scalable run lengths, sharing power supplies and components. Basics LED Tape delivers precision and performance with two selectable power outputs and five selectable color temperatures from warm 2700K to cool 5000 Kelvin. Gemini is a continuous phosphorus (COB) tape that eliminates unsightly diode imaging and great for applications where the LED Tape Light is reflected or in direct sight.

• Part of the Basics & Gemini Collection
• Finish: Black
• Made of Aluminum
• Style: Functional
• Voltage: 24

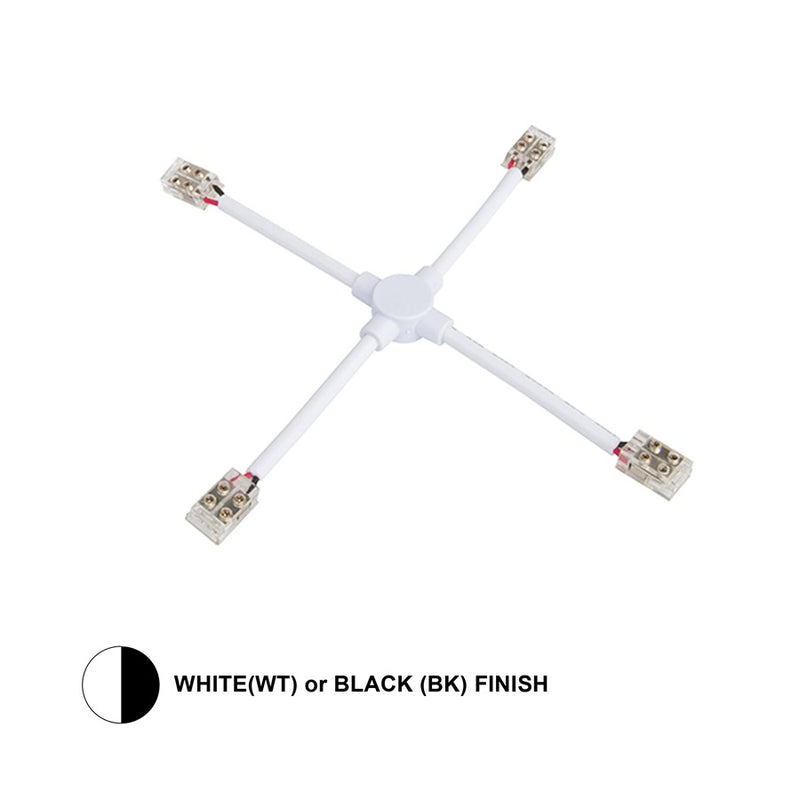

• Basics & Gemini 24VDC Flex X Connector in Black
• Flex X connectors can be used to connect Four strips of Basics & Gemini Tape Light on separate runs with power continuity.
• Flexible and customizable with a low profile. Use with universal input voltage 120-220-277V power supply: PS-24DC-U and T24-BS-EX2 lead wire required or 120VAC power supply: EN-BT60 with lead wire included.
• Basics LED tape light can be cut in the field every 4in and re-connected with safe and secure connectors. Gemini LED tape light can be cut in the field every 2in and re-connected with safe and secure connectors. Smooth robust illumination deployed from evenly placed UV coated LEDs for cove, accent and task lighting applications.
• Smooth and continuous dimming with an electronic low voltage dimmer (ELV), TRIAC or 0-10V (0-10V only available with PS-24DC-U power Supply). Dimmers should be installed on the primary side of the transformer. Driver input voltage: 120V-220V-277V AC, Driver output voltage: 24V DC. Driver is available in a 288W max load.
• High Powered LED's 90+ CRI, Rated Hours: 80,000, Voltage: 24V, Lumen Options: 100+ lm/ft, or 200+ lm/ft.
• Standards: UL & cUL Listed for Damp Locations IP20 rated. CEC Title 24 & ADA Compliant.
• Mounting: Ceiling/Wall; Any
• ADA: Yes
• Interior/Exterior: Interior
• Hardwired/Portable: Plugin
• Length of Electrical Wire: 6"
• Safety Rating: UL/CUL/IP20 Listed
• For Use in Damp Locations
• Warranty Info: 5 Years Functional, 2 Years Finish

Overall Dimensions: 0.41"(L) x 6.56"(W) x 6.56"(H)

Item Weight: 0.34 lbs.
